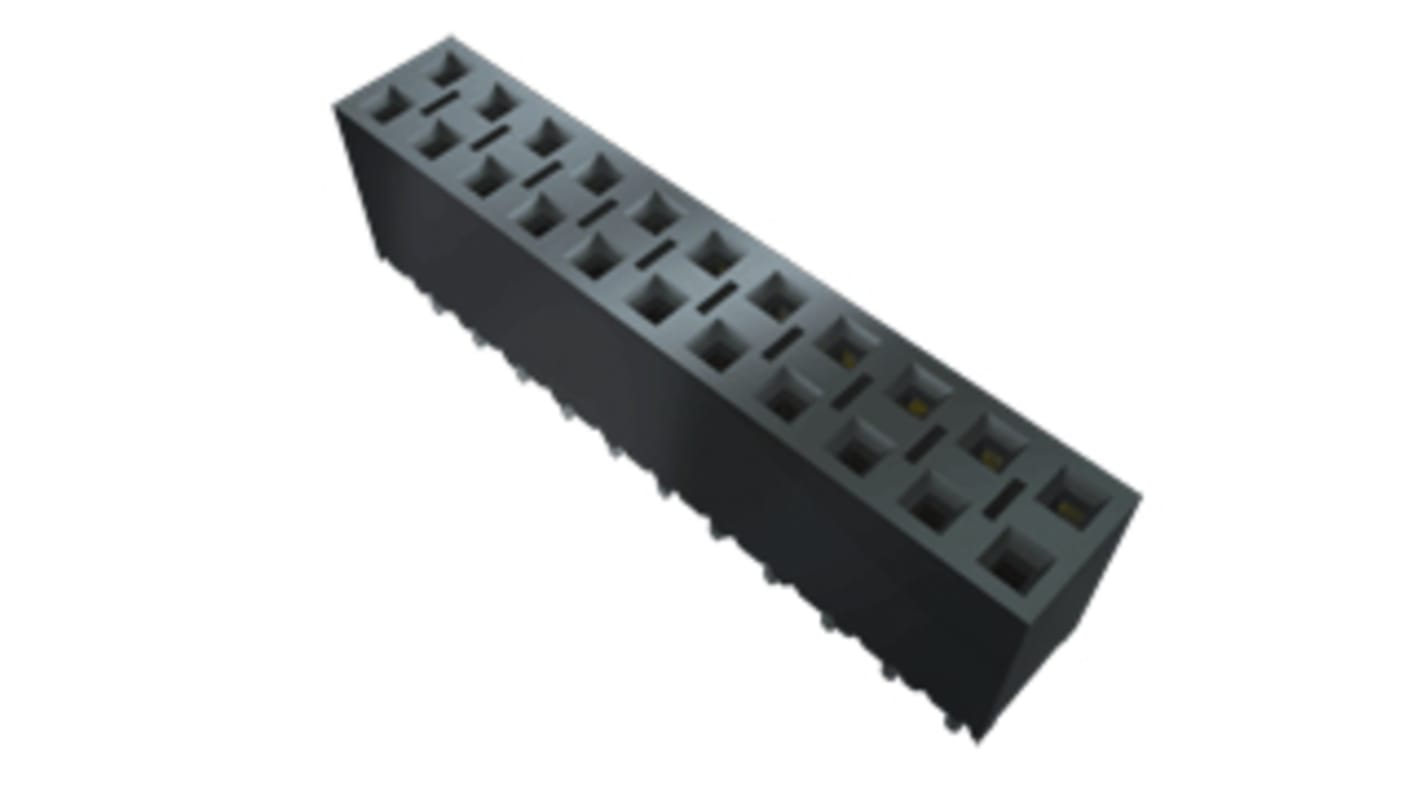

Samtec BCS Series 2.54mm Pitch 30 Way 2 Row Vertical PCB Socket, Through Hole, Solder Termination

  • RS Stock No. 159-3671
  • Mfr. Part No. BCS-115-L-D-TE
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

.100" (2.54 mm) Tiger Claw™ Pass-through Socket Strip

Pitch: .100" (2.54 mm)
Contact System: Tiger Claw™
Orientation: Vertical, horizontal
Termination: Through-hole
Application: Single and double row up to 100 pins
Special Features: Top and bottom entry pass-through options

Specifications
Attribute Value
Number of Contacts 30
Number of Rows 2
Pitch 2.54mm
Type Board to Board
Mounting Type Through Hole
Body Orientation Vertical
Termination Method Solder
Current Rating 4.6A
Voltage Rating 475 V ac
Series BCS
Contact Material Phosphor Bronze
Temporarily out of stock - back order for despatch 28/05/2020, delivery within 4 working days from despatch date
Price Each
MYR 18.08
units
Per unit
1 - 9
MYR18.08
10 - 49
MYR17.13
50 - 99
MYR16.24
100 - 499
MYR15.46
500 +
MYR15.15
