Hirose FunctionMAX FX23 Series Right Angle Surface PCB Header, 60 Contact(s), 0.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 909-1844
- Mfr. Part No.:
- FX23-60P-0.5SV15
- Manufacturer:
- Hirose

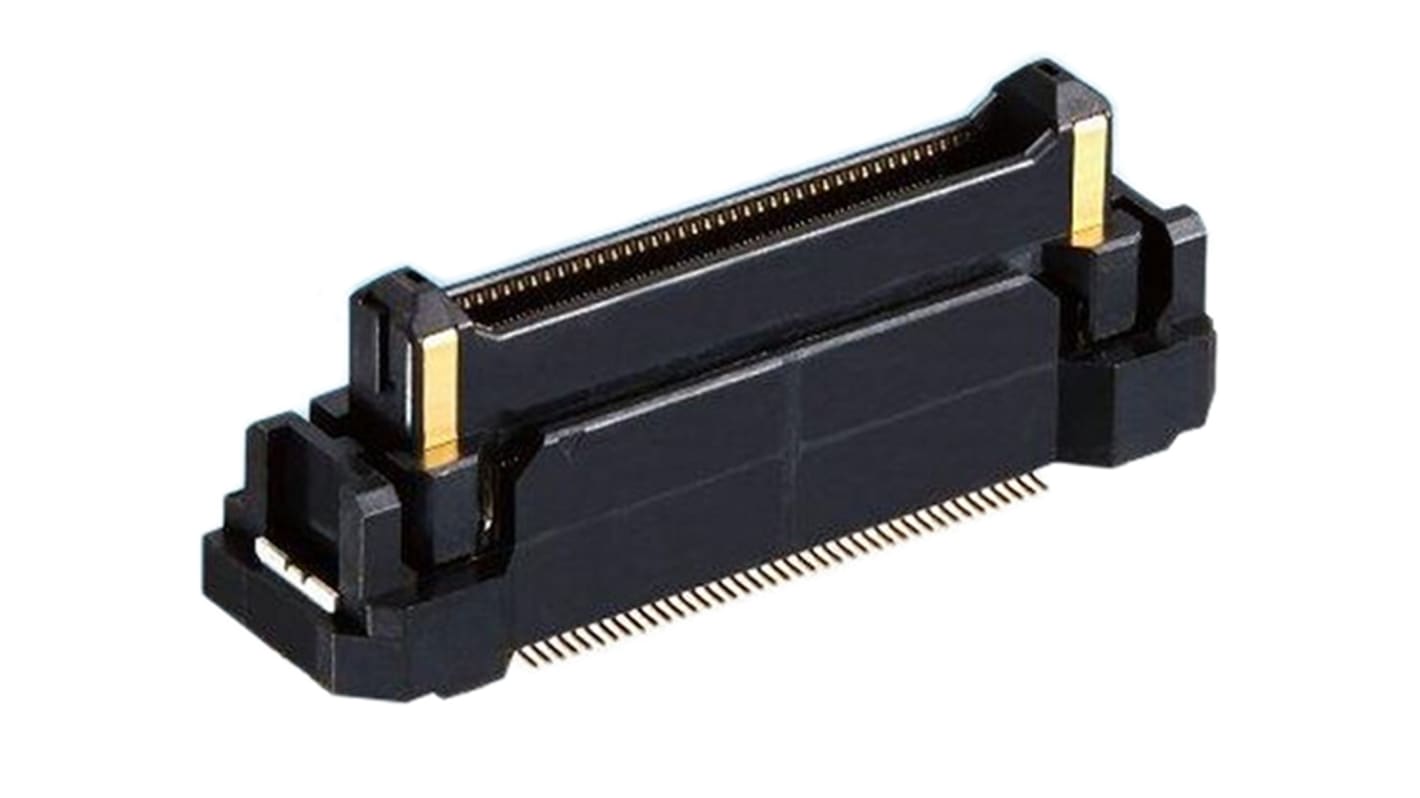

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR96.92
FREE delivery for orders over RM 500.00
In Stock
- Plus 755 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 20 | MYR19.384 | MYR96.92 |
| 25 - 45 | MYR18.978 | MYR94.89 |
| 50 - 95 | MYR18.398 | MYR91.99 |
| 100 - 245 | MYR17.952 | MYR89.76 |
| 250 + | MYR17.562 | MYR87.81 |
*price indicative
- RS Stock No.:
- 909-1844
- Mfr. Part No.:
- FX23-60P-0.5SV15
- Manufacturer:
- Hirose
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Product Type | PCB Header | |
| Series | FunctionMAX FX23 | |
| Pitch | 0.5mm | |
| Current | 3mA | |
| Number of Contacts | 60 | |
| Housing Material | Polyamide Resin | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 0.5mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 50 V | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Product Type PCB Header | ||
Series FunctionMAX FX23 | ||
Pitch 0.5mm | ||
Current 3mA | ||
Number of Contacts 60 | ||
Housing Material Polyamide Resin | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 0.5mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 50 V | ||
Hirose FX23 0.5mm Board to Board High Transmission Header and Receptacle Connectors
FX23 0.5mm pitch board to board hybrid header and receptacle connectors with an innovative contact design that enables a high speed transmission rate of up to 6 Gbps. The FX23 0.5mm board to board PCB header connectors have a unique floating feature embedded inside the base of the housing that absorbs mounting misalignment by allowing an alignment movement of ±0.6mm in the X and Y directions. Large guide posts on these these FX23 connectors also offer excellent mating alignment. The hybrid space saving design of these FX23 board to board connectors features both 3A power and 0.5A signal contacts with the power contacts located either side of the connector housing. Typical applications for these The FX23 0.5mm board to board high transmission connectors include industrial equipment, broadcast equipment, POS terminals, medical devices, BTS, servo motors, PLC and car navigation equipment.
