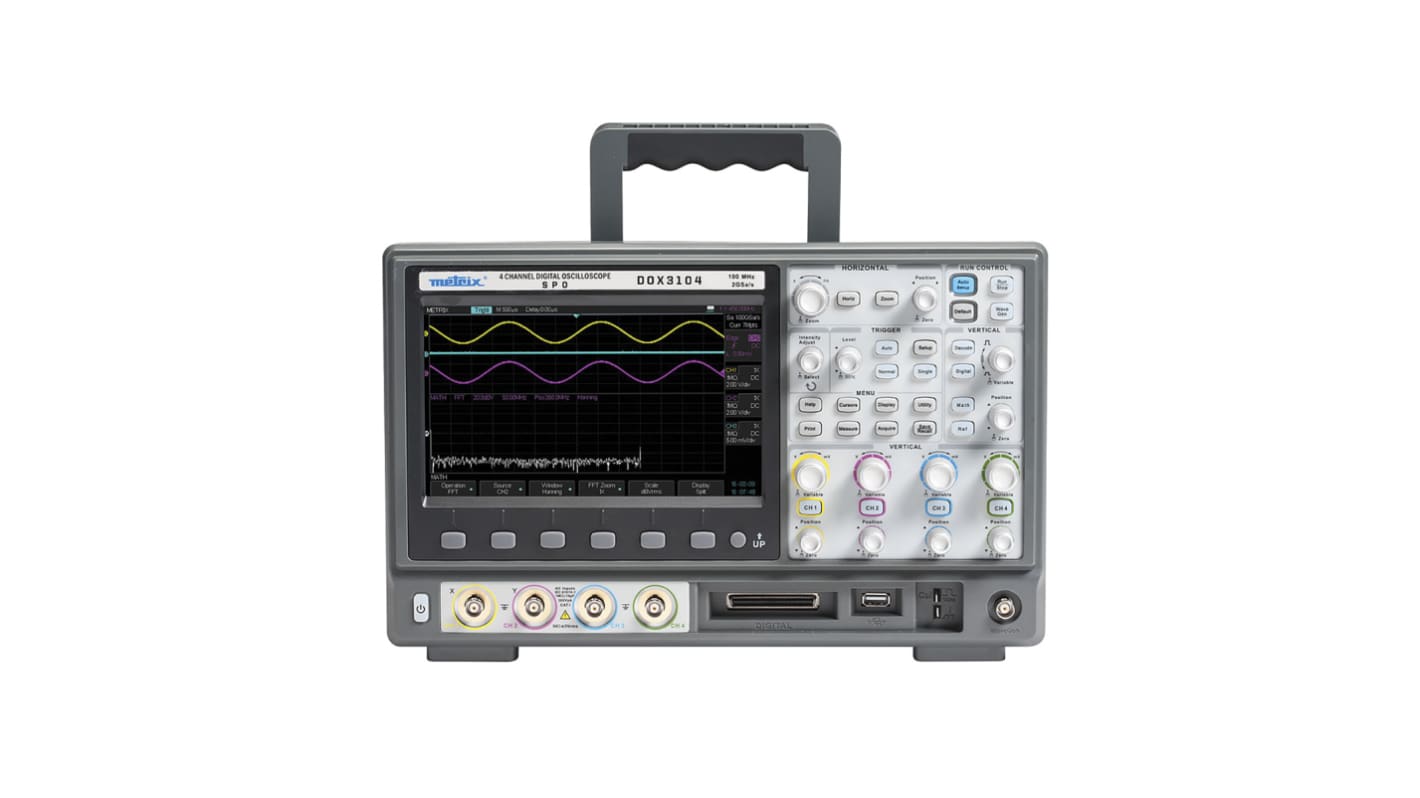

Metrix DOX 3104 DOX3000 Series, 100MHz Bench Oscilloscope, 4 Analogue Channels
- RS Stock No.:
- 879-3848
- Mfr. Part No.:
- DOX3104
- Manufacturer:
- Metrix
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 879-3848
- Mfr. Part No.:
- DOX3104
- Manufacturer:
- Metrix
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Metrix | |
| Bandwidth | 100MHz | |
| Number of Analogue Channels | 4 | |
| Oscilloscope Type | Bench | |
| Oscilloscope Form | Digital Phosphor | |
| Interface | CAN, LIN, RS232, SPI, UART, USB | |
| Sample Rate Random | 2 Gsps | |
| Screen Size | 8in | |
| Series | DOX3000 | |
| Record Length | 28M points | |
| Digital/Analogue | Digital | |
| Power Source | Mains | |
| Dimensions | 352 x 111 x 224mm | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Time Base | 1ns/div | |
| Rise Time | <3.5ns | |
| Display Type | LCD | |
| Weight | 3.6kg | |
| Vertical Resolution | 8 bit | |
| Maximum Time Base | 50s/div | |
| Safety Category | CAT I 300 V, IEC 6101-1 | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Select all | ||
|---|---|---|
Brand Metrix | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 4 | ||
Oscilloscope Type Bench | ||
Oscilloscope Form Digital Phosphor | ||
Interface CAN, LIN, RS232, SPI, UART, USB | ||
Sample Rate Random 2 Gsps | ||
Screen Size 8in | ||
Series DOX3000 | ||
Record Length 28M points | ||
Digital/Analogue Digital | ||
Power Source Mains | ||
Dimensions 352 x 111 x 224mm | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Time Base 1ns/div | ||
Rise Time <3.5ns | ||
Display Type LCD | ||
Weight 3.6kg | ||
Vertical Resolution 8 bit | ||
Maximum Time Base 50s/div | ||
Safety Category CAT I 300 V, IEC 6101-1 | ||
Minimum Vertical Sensitivity 2mV/div | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Metrix Sensitive Phosphor Oscilloscope DOX3000
The Metrix DOX3000 Series offers innovative sensitive phosphor oscilloscope (SPO) technology, digital trigger, decoding of serial bus, logic input MSO and integral logic analyser. The choice of model is between the 100MHz, 4-channel DOX3104 ( 879-3848 ) and the 300MHz, 4-channel DOX3304 ( 879-3842 ). Eight-channel probe DOX-MSO3LA ( 879-3851 ) is available separately for use with the Metrix DOX3000 Series.
Serial bus decoding and function generator
Innovative sensitive phosphor oscilloscope (SPO) technology
8 inch colour screen
Long memory depth up 28Mpts
Waveform capture up to 110,000 forms/s
Zoom function based on hardware technology
Advanced math function (FFT, d/dt, integral, square root)
Integration of an arbitrary signal generator 25MHz
Many serial triggering and decode signals of digital frames (I2C, SPI, UART, CAN, LIN)
Comprehensive triggering functions (Window, Runt, Interval, DropOut, Pattern)
Innovative sensitive phosphor oscilloscope (SPO) technology
8 inch colour screen
Long memory depth up 28Mpts
Waveform capture up to 110,000 forms/s
Zoom function based on hardware technology
Advanced math function (FFT, d/dt, integral, square root)
Integration of an arbitrary signal generator 25MHz
Many serial triggering and decode signals of digital frames (I2C, SPI, UART, CAN, LIN)
Comprehensive triggering functions (Window, Runt, Interval, DropOut, Pattern)
Supplied with
Operating manual on CD (5 languages), quick start guide, probes (1 per channel), software, power cord, USB cable
