Units	Per Unit	Per Pack**
25 - 600	MYR1.656	MYR41.40
625 - 1225	MYR1.622	MYR40.55
1250 +	MYR1.573	MYR39.325

Select all	Attribute	Value
	Brand	STMicroelectronics
	Amplifier Type	Dual Operational
	Mounting Type	Surface Mount
	Package Type	SO
	Power Supply Type	Single
	Number of Channels per Chip	2
	Pin Count	8
	Typical Single Supply Voltage	6 → 36 V
	Typical Gain Bandwidth Product	4MHz
	Output Type	Swing
	Typical Slew Rate	16V/µs
	Maximum Operating Frequency	100 kHz
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+105 °C
	Maximum Input Voltage	36 V
	Typical Voltage Gain	200 V/mV
	Offset Voltage	5mV
	Output Current	60 mA
	Length	5mm
	Typical Input Voltage Noise Density	15nV/√Hz
	Minimum Input Voltage	6 V
	Input Offset Current	4nA
	Dimensions	5 x 4 x 1.5mm
	Width	4mm
	Height	1.5mm
	Input Voltage Range	6 → 36 V

	Select all
	Brand STMicroelectronics
	Amplifier Type Dual Operational
	Mounting Type Surface Mount
	Package Type SO
	Power Supply Type Single
	Number of Channels per Chip 2
	Pin Count 8
	Typical Single Supply Voltage 6 → 36 V
	Typical Gain Bandwidth Product 4MHz
	Output Type Swing
	Typical Slew Rate 16V/µs
	Maximum Operating Frequency 100 kHz
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +105 °C
	Maximum Input Voltage 36 V
	Typical Voltage Gain 200 V/mV
	Offset Voltage 5mV
	Output Current 60 mA
	Length 5mm
	Typical Input Voltage Noise Density 15nV/√Hz
	Minimum Input Voltage 6 V
	Input Offset Current 4nA
	Dimensions 5 x 4 x 1.5mm
	Width 4mm
	Height 1.5mm
	Input Voltage Range 6 → 36 V

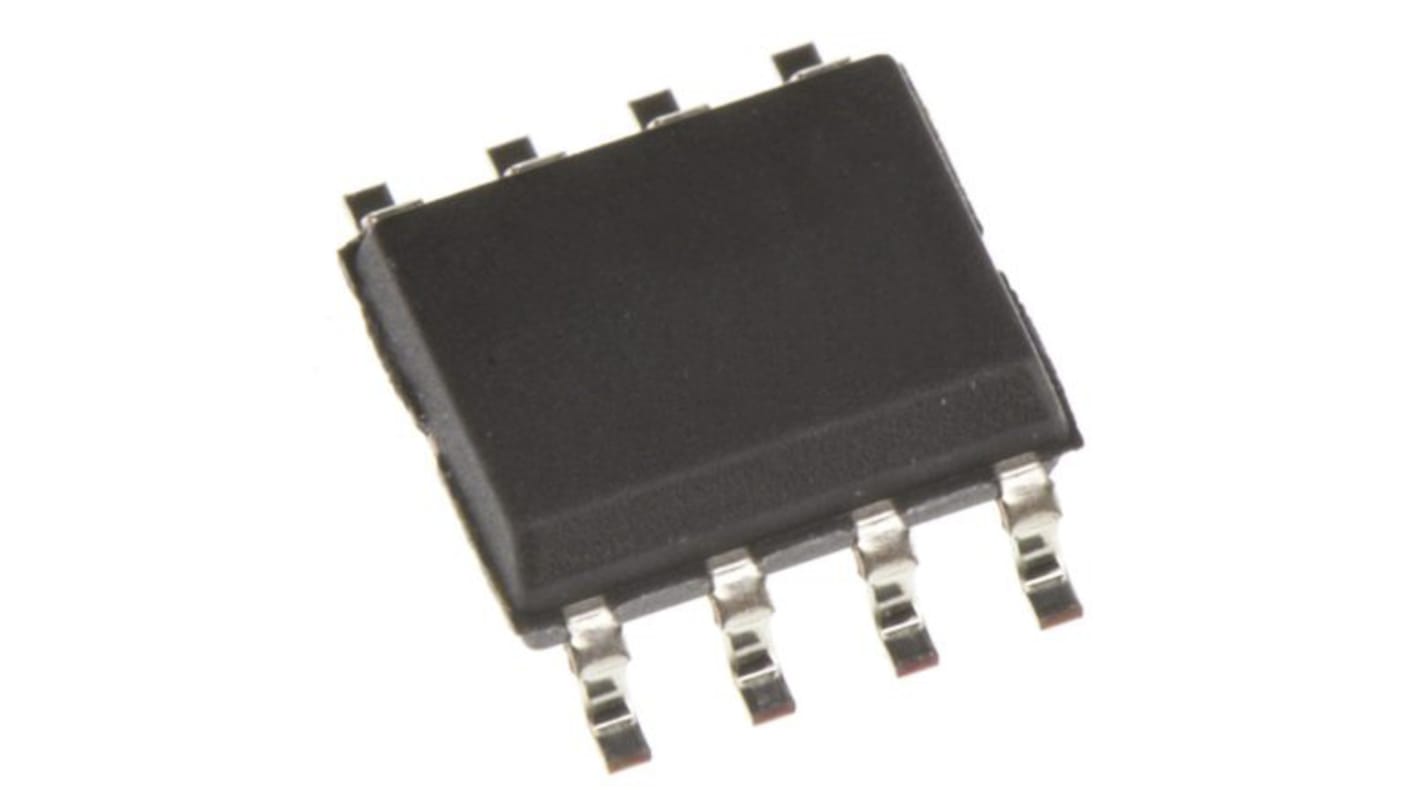

TL082BIYDT STMicroelectronics, Dual Operational, Op Amp, 4MHz 100 kHz, 6 → 36 V, 8-Pin SO
