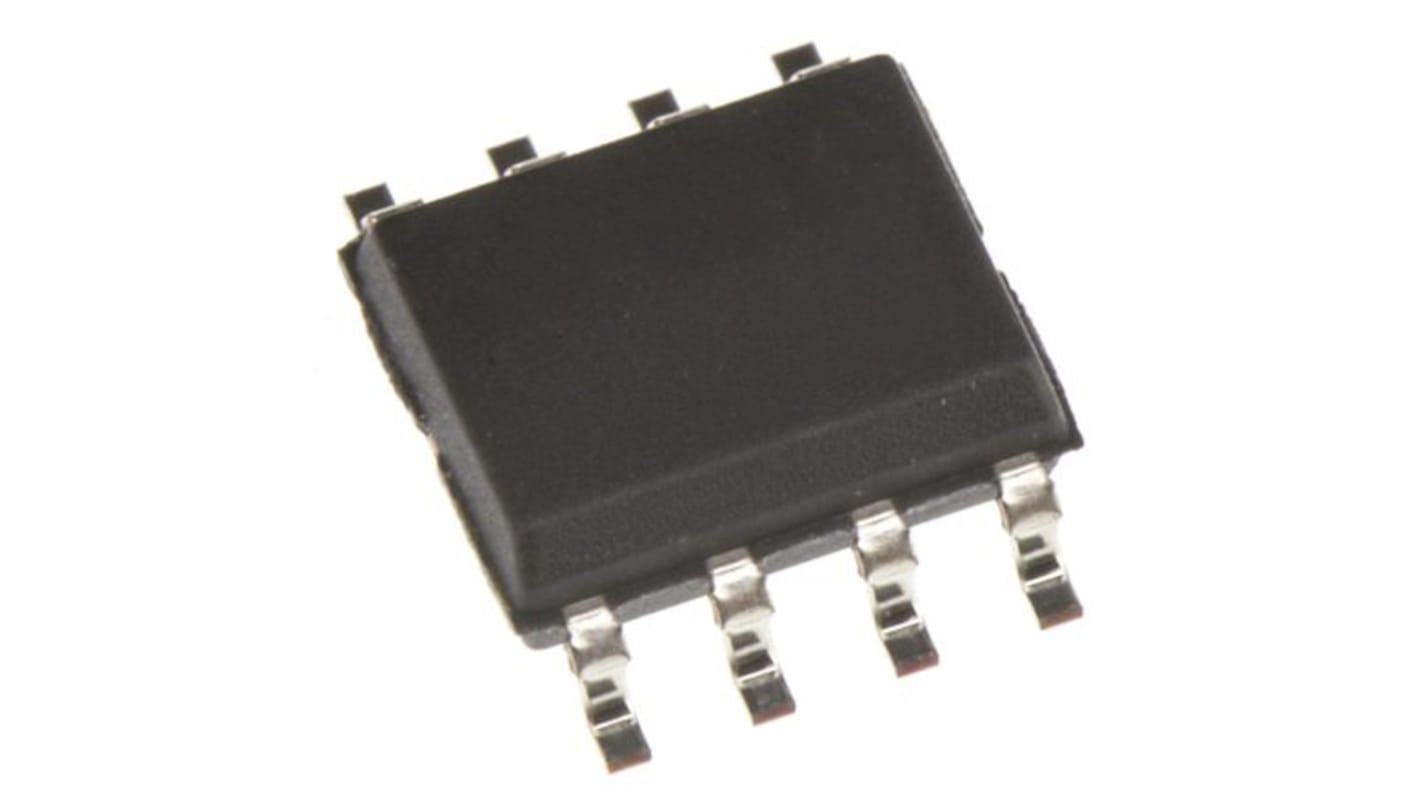

    LM258AST STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin MiniSO

    View all Op Amps
    Bulk discount available

    Subtotal (1 reel of 4000 units)**

    MYR9,132.00

    Add to Basket
    Select or type quantity
    4000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Reel**
    4000 - 4000MYR2.283MYR9,132.00
    8000 - 12000MYR2.233MYR8,932.00
    16000 +MYR2.192MYR8,768.00

    **price indicative

    RS Stock No.:
    189-1845
    Mfr. Part No.:
    LM258AST
    Manufacturer:
    STMicroelectronics
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    STMicroelectronics

    Amplifier Type

    Dual Operational

    Mounting Type

    Surface Mount

    Package Type

    MiniSO

    Power Supply Type

    Single

    Number of Channels per Chip

    2

    Pin Count

    8

    Typical Single Supply Voltage

    3 → 30 V

    Typical Gain Bandwidth Product

    1.1MHz

    Output Type

    Swing

    Typical Slew Rate

    0.6V/µs

    Maximum Operating Frequency

    100 kHz

    Maximum Operating Temperature

    +105 °C

    Minimum Operating Temperature

    -40 °C

    Offset Voltage

    3mV

    Output Current

    20 (Sink) mA, 60 (Source) mA

    Typical Voltage Gain

    100 dB

    Maximum Input Voltage

    30 V

    Width

    3.1mm

    Typical Input Voltage Noise Density

    55nV/√Hz

    Dimensions

    3.2 x 3.1 x 0.95mm

    Minimum Input Voltage

    3 V

    Length

    3.2mm

    Input Offset Current

    10nA

    Height

    0.95mm

    Input Voltage Range

    3 → 30 V
