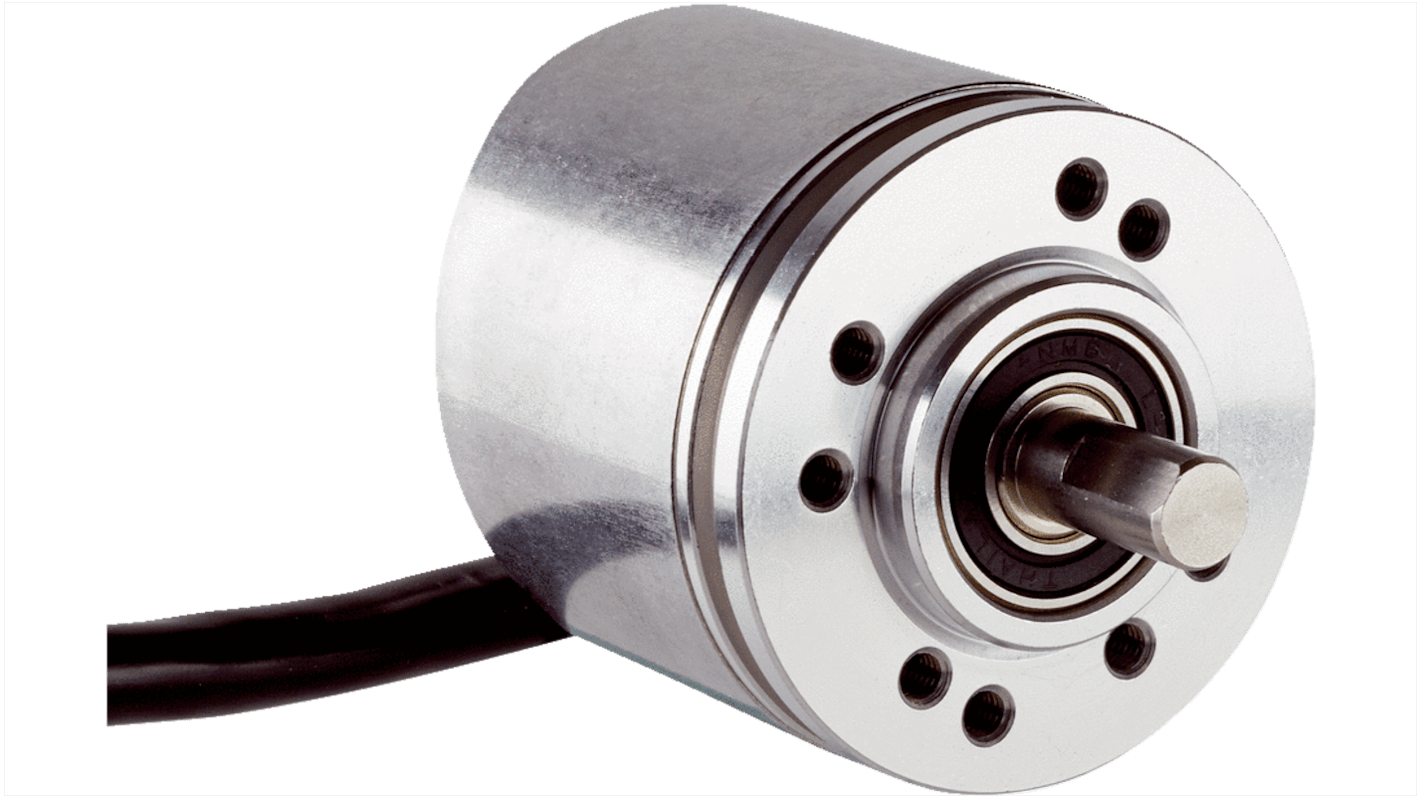

SICK DBS36E Series Incremental Incremental Encoder 30V, 2000 ppr ppr, HTL, Push Pull Signal, Solid Shaft Type, 6 mm

RS Stock No.:: 285-1069
Mfr. Part No.:: DBS36E-S3EL02000 / 1069515
Manufacturer:: SICK

Subtotal (1 unit)*

MYR808.13

FREE delivery for orders over RM 500.00

Stocked by manufacturer

Ready to ship from 12 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR808.13

*price indicative

RS Stock No.:: 285-1069
Mfr. Part No.:: DBS36E-S3EL02000 / 1069515
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Incremental Encoder
	Encoder Technology	Incremental
	Series	DBS36E
	Pulses Per Revolution	2000ppr
	Maximum Revolutions	8000rpm
	Output Signal Type	HTL, Push Pull
	Shaft Type	Solid Shaft
	Shaft Diameter	6mm
	Interface Type	Incremental
	IP Rating	IP65
	Terminal Type	Cable
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-20°C
	Overall Depth	35.5mm
	Overall Height	36mm
	Standards/Approvals	ACMA declaration of conformity, CE, CHINA-RoHS, cULus, EU declaration of conformity, UK declaration of conformity
	Overall Width	36mm
	Mount Type	Flange
	Maximum Operating Temperature	85°C
	Switching Frequency	300kHz

	Select all
	Brand SICK
	Product Type Incremental Encoder
	Encoder Technology Incremental
	Series DBS36E
	Pulses Per Revolution 2000ppr
	Maximum Revolutions 8000rpm
	Output Signal Type HTL, Push Pull
	Shaft Type Solid Shaft
	Shaft Diameter 6mm
	Interface Type Incremental
	IP Rating IP65
	Terminal Type Cable
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -20°C
	Overall Depth 35.5mm
	Overall Height 36mm
	Standards/Approvals ACMA declaration of conformity, CE, CHINA-RoHS, cULus, EU declaration of conformity, UK declaration of conformity
	Overall Width 36mm
	Mount Type Flange
	Maximum Operating Temperature 85°C
	Switching Frequency 300kHz

Datasheet - DBS36E-S3EL02000

COO (Country of Origin):: MY

Overview

The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings.

The DBS36/50 devices offer comprehensive mounting options. All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.

At a glance

Pulses per revolution: Up to 2,500

Housing diameter: 36 mm or 50 mm

Solid shaft and blind hollow shaft

Enclosure rating: IP65

Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector

Connection type: Cable, cable with M12 or M23 male connector

Your Benefit

The flexible cable connection makes installation flexible and easy especially when space is limited

Tailorable to the application: Many mounting options due to various flanges and universal stator couplings

Can be used internationally thanks to shafts in both metric and inch sizes

The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications

The compact housing diameter saves valuable space

The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and storage life

Applications

Fields of applications

Positioning and speed measurement, e.g., in the textile industry, glass industry, drive technology, storage and conveyor technology, in packaging machines, printing presses, and elevators
