P-Channel MOSFET, 3.6 A, 40 V, 3-Pin SOT-23 Vishay Siliconix Si2319DDS-T1-GE3
- RS Stock No.:
- 178-3853
- Mfr. Part No.:
- Si2319DDS-T1-GE3
- Manufacturer:
- Vishay Siliconix
Temporarily out of stock - back order for despatch 30/08/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 50)
MYR2.005
| Units | Per Unit | Per Pack* |
| 50 - 700 | MYR2.005 | MYR100.25 |
| 750 - 1450 | MYR1.935 | MYR96.75 |
| 1500 + | MYR1.838 | MYR91.90 |
| *price indicative | ||
- RS Stock No.:
- 178-3853
- Mfr. Part No.:
- Si2319DDS-T1-GE3
- Manufacturer:
- Vishay Siliconix
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
TrenchFET® Gen III p-channel power MOSFET
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 3.6 A |
| Maximum Drain Source Voltage | 40 V |
| Series | TrenchFET |

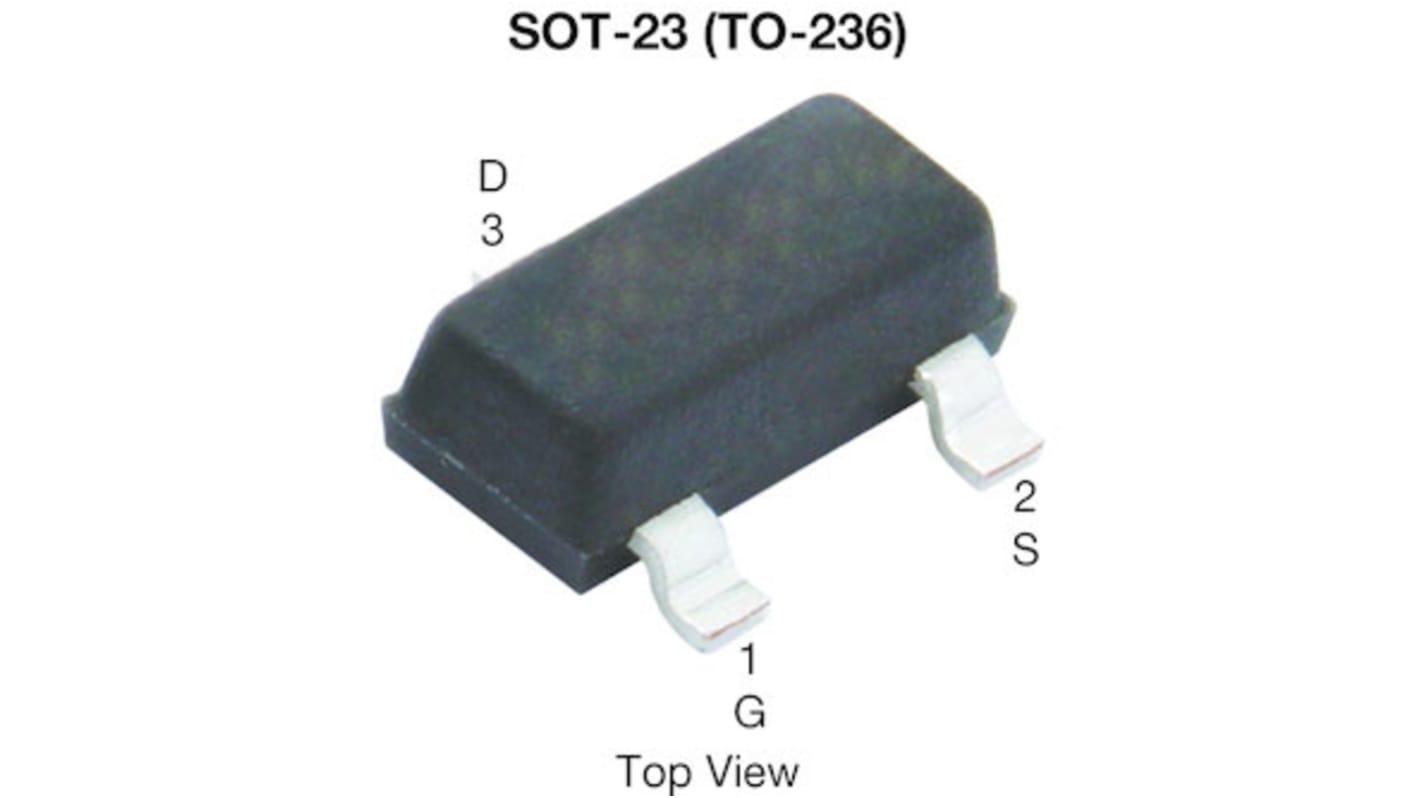

| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 100 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Width | 1.4mm |
| Length | 3.04mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 12.5 nC @ 10 V |
| Transistor Material | Si |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Height | 1.02mm |
