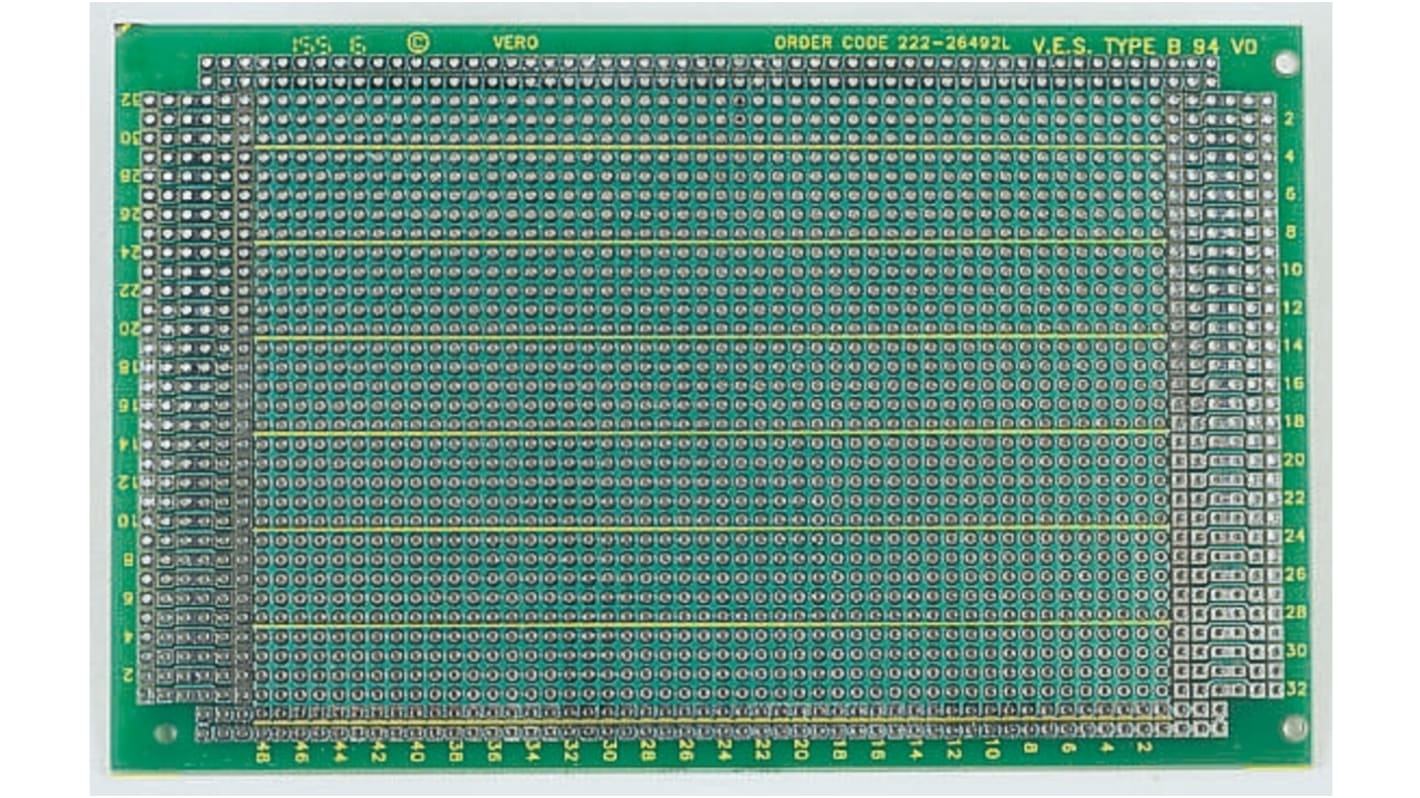

Vero Technologies Matrix Board FR4 With 42 x 38 1.02mm Holes, 2.54mm Pitch, 160 x 100 x 1.6mm
- RS Stock No.:
- 110-2438
- Mfr. Part No.:
- 222-26492
- Manufacturer:
- Vero Technologies
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR302.87
| Units | Per Unit |
| 1 - 9 | MYR302.87 |
| 10 - 19 | MYR296.51 |
| 20 - 49 | MYR287.63 |
| 50 + | MYR279.00 |
- RS Stock No.:
- 110-2438
- Mfr. Part No.:
- 222-26492
- Manufacturer:
- Vero Technologies
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Eurocards: Lined on each side with through-hole
Quadratic soldering islands reduce risk of lifting during soldering. Simple connections to adjacent soldering islands can also be made. An earth screen on the component side provides maximum shielding. Plug connectors compliant with DIN 41612, types B and C up to 96 contacts, can be mounted on both sides of the board.
DIN Type Matrixboard
Matrix boards with 1mm holes on a 2.54mm pitch.
Specifications
Attribute | Value |
|---|---|
| Hole Pitch | 2.54mm |
| Dimensions | 160 x 100 x 1.6mm |
| Length | 160mm |
| Width | 100mm |
| Thickness | 1.6mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1.02mm |
| FR Material Grade | FR4 |
| Hole Layout | 42 x 38 |
| Copper Thickness | 35µm |
| Connection | DIN 41612 |
