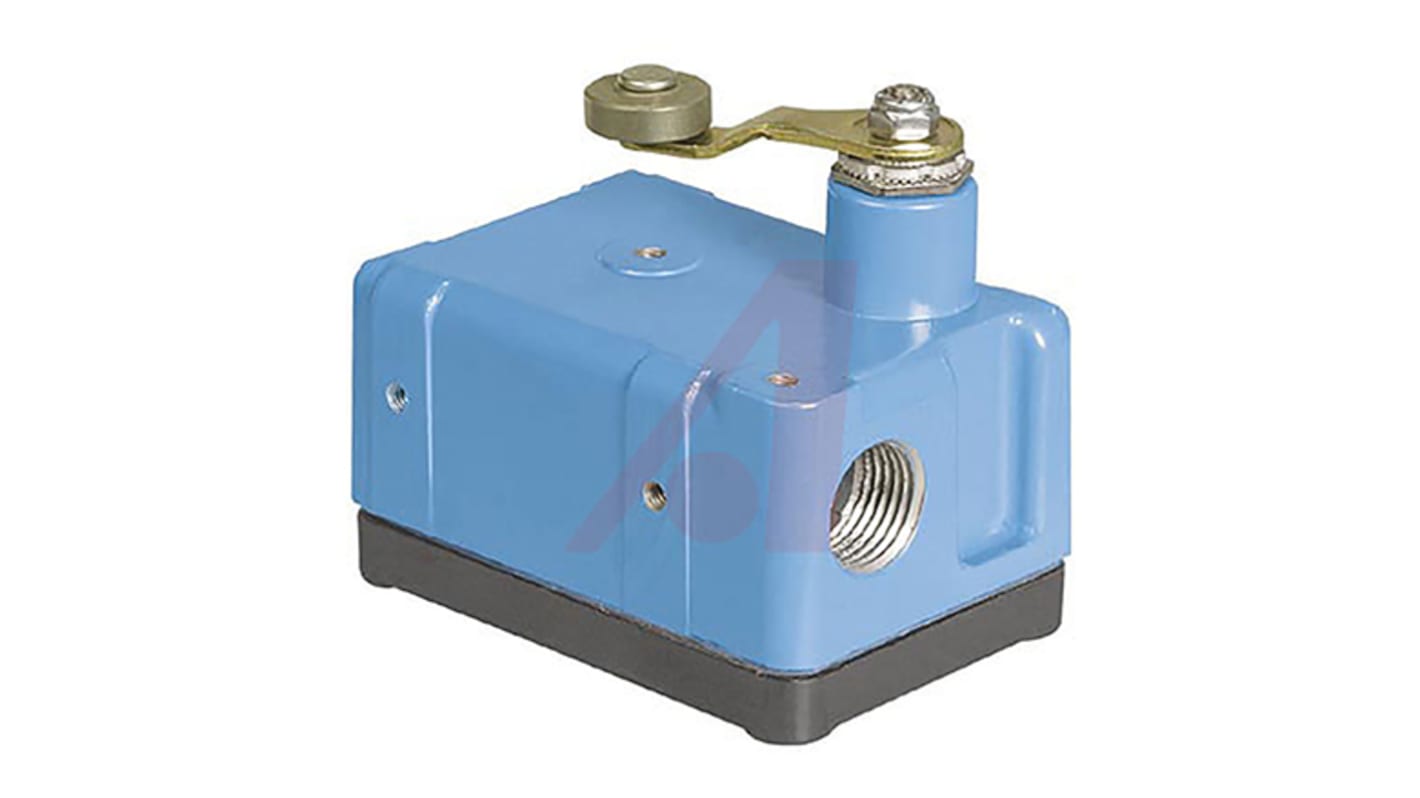

Honeywell Roller Lever Limit Switch, NO/NC, SPDT, Die Cast Aluminium Housing, 480V ac Max, 15A Max
- RS Stock No.:
- 808-7664
- Mfr. Part No.:
- OP-AR
- Manufacturer:
- Honeywell
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,299.73
| Units | Per Unit |
| 1 + | MYR1,299.73 |
- RS Stock No.:
- 808-7664
- Mfr. Part No.:
- OP-AR
- Manufacturer:
- Honeywell
Technical data sheets
Legislation and Compliance
Product Details
Limit Switches OP Series
Honeywell OP Series are precision, snap-action switches sealed in rugged cast aluminum housings. Cover and shaft seals keep out moisture and other contaminants on rotary operated switches. The plungers in the Q-plunger versions are not sealed.
Cast aluminium housing
Cover seal, captive cover screws
Cover seal, captive cover screws
Approvals
UL/ UL listed for Canada
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Housing Material | Die Cast Aluminium |
| Maximum AC Voltage | 480V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT |
| Action Type | Snap Action |
| Length | 92.96mm |
| Width | 65.02mm |
| Depth | 52.32mm |
| Mounting Orientation | Vertical |
