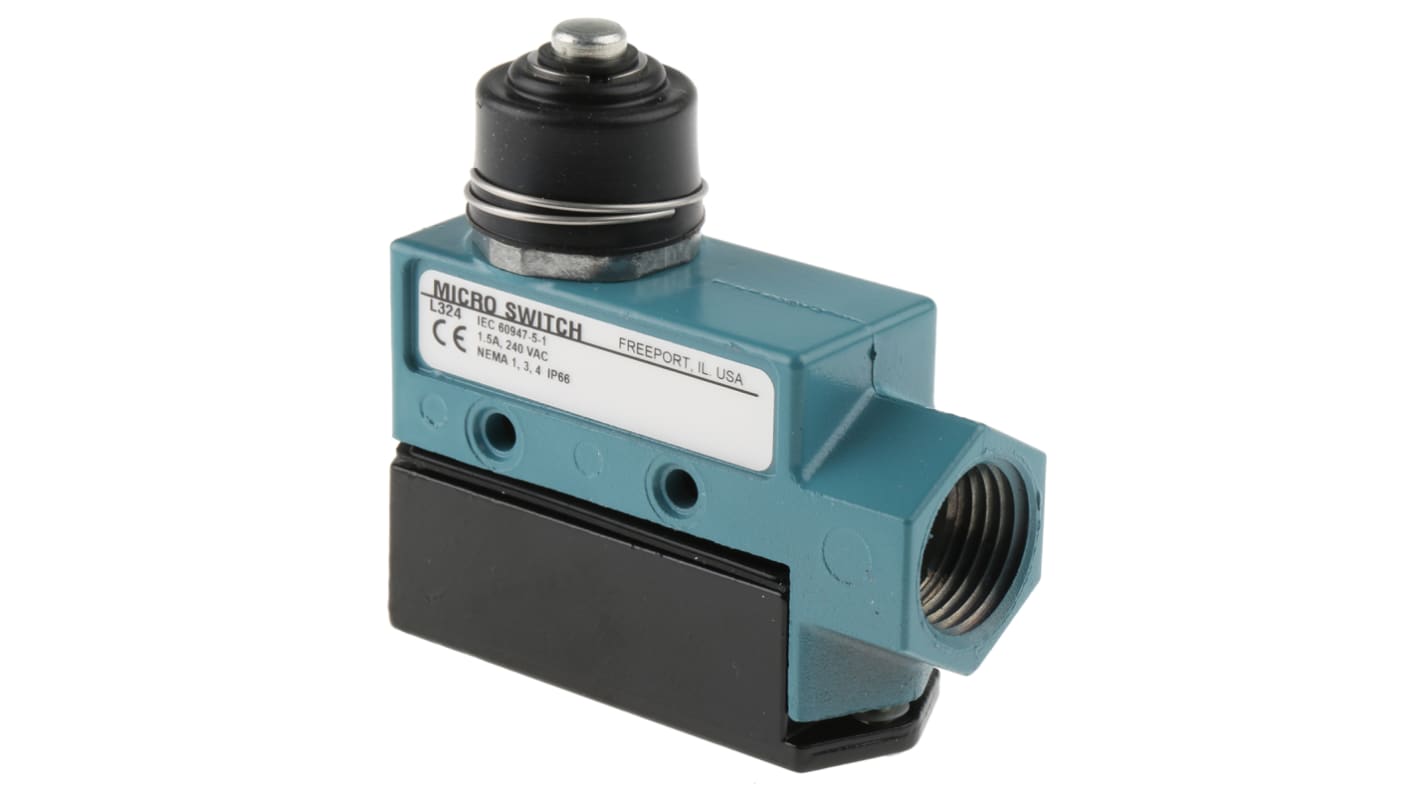

IP66 Snap Action Limit Switch Plunger Die Cast Zinc, NO/NC, 600V

  • RS Stock No. 808-2757
  • Mfr. Part No. BZE6-2RN
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

BZE6 Enclosed Limit Switches

The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable.

BZE6 series featuring side mounting
Die-cast zinc housing for robustness and durability
Wide temperature operating range

Approvals

UL, CSA.

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 15 A
Housing Material Die Cast Zinc
Maximum AC Voltage 600V
Maximum DC Voltage 250V
Connection Type 1/2 NPT
Series BZE6
Contact Type Snap Action
Terminal Type Screw
Length 25.4mm
Width 44.4mm
Mounting Orientation Side
Maximum Operating Temperature +71°C
Depth 77.2mm
Minimum Operating Temperature -32°C
Dimensions 25.4 x 44.4 x 77.2 mm
88 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 224.68
units
Per unit
1 - 9
MYR224.68
10 - 24
MYR220.95
25 - 49
MYR217.31
50 - 99
MYR209.68
100 +
MYR203.48
