IP68 Snap Action Limit Switch Plunger, NO/NC, 240V

  • RS Stock No. 344-3589
  • Mfr. Part No. SSCEB31B
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Honeywell SSCE Super Sealed CE Limit Switches

SSCE limit switches form part of Honeywell’s wider miniature limit switches range. They are precise and reliable, even in the toughest environments. These ’Super Sealed’ CE switches are able to function as normal while full submerged in a variety of different fluids.


• SSCE series limit switches feature gang-mounting capability.
• They have two 25 mm mounting centres.
• SSCE limit switches are pre-wired with 3 meter long PUR (Polyurethane) cable.
• They can be used for multiple switching within confined spaces.
• This series of limit switches are constructed from a rugged die-cast zinc housing.
• Excellent mechanical lifespan up to 10 million operations.
• Snap action contacts.


• With a compact design, SSCE limit switches can be used in applications where space is limited and a switch with a small footprint is required.
• They are quick and easy to install, with a simple two-screw mounting design and pre-wired PUR cable.
• The use of polyurethane (PUR) for the cable, also enhances SSCE limit switches ability to withstand harsh conditions. PUR sheathing remains flexible through a wide range of temperatures and has anti-kink properties. It is difficult to cut and incredibly wear resistant. It also offers resistance to humidity, UV radiation and as a barrier to oils and chemicals.
• Unlike many other limit switches from Honeywell, SSCE series are fitted with gold plated contacts instead of silver contacts. Some environmental conditions, such as submersion in liquid, or the presence of moisture can cause silver contacts to tarnish. These conditions do not affect the gold plated contacts, giving SSCE switches greater reliability when switching at low voltages and low currents. Gold plating protects the contacts from contamination while in storage before use as well as during operation.
• You can build your own multiple plunger switch by using the SSCE series’ gang mounting capability.


SSCE series limit switches are suitable for applications that require a limit switch to be fully submerged in liquid. They are robust and rugged and can handle harsh applications.

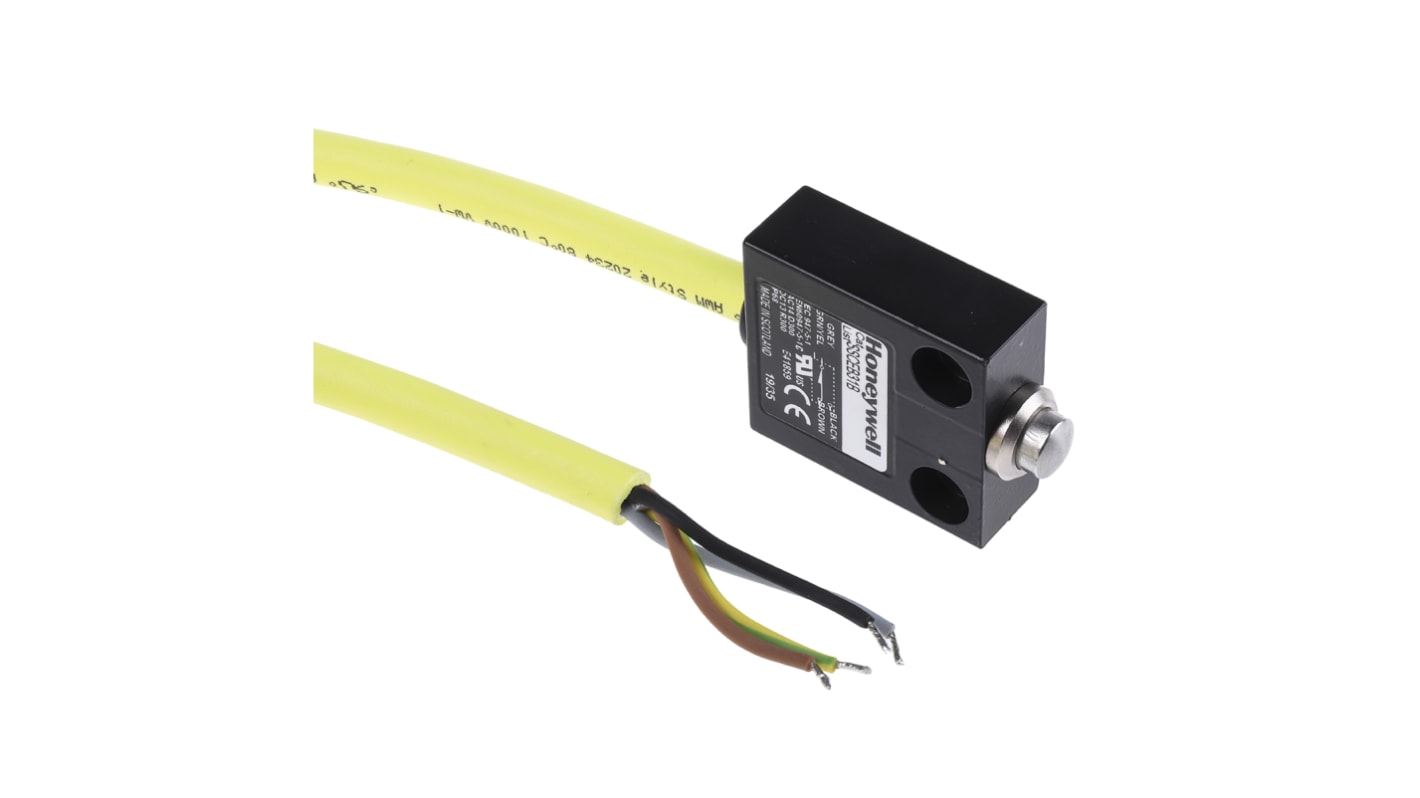

SSCEB31B Limit Switch

The SSCEB31B model features a straight actuator at the top of the unit. It is idea for applications where the actuating element and plunger travel in the same direction. It has 1 normally open (NO) and one normally closed (NC) contact.





Attribute Value
Actuator Type Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP68
Maximum Current 4 A
Maximum AC Voltage 240V
Series SSCE
Contact Type Snap Action
Terminal Type Wire Lead
Length 54mm
Width 40mm
Dimensions 54 x 40 x 16 mm
Minimum Operating Temperature -40°C
Depth 16mm
Mechanical Life Minimum 10000000 cycles
Maximum Operating Temperature +90°C
27 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 313.74
Per unit
1 +
