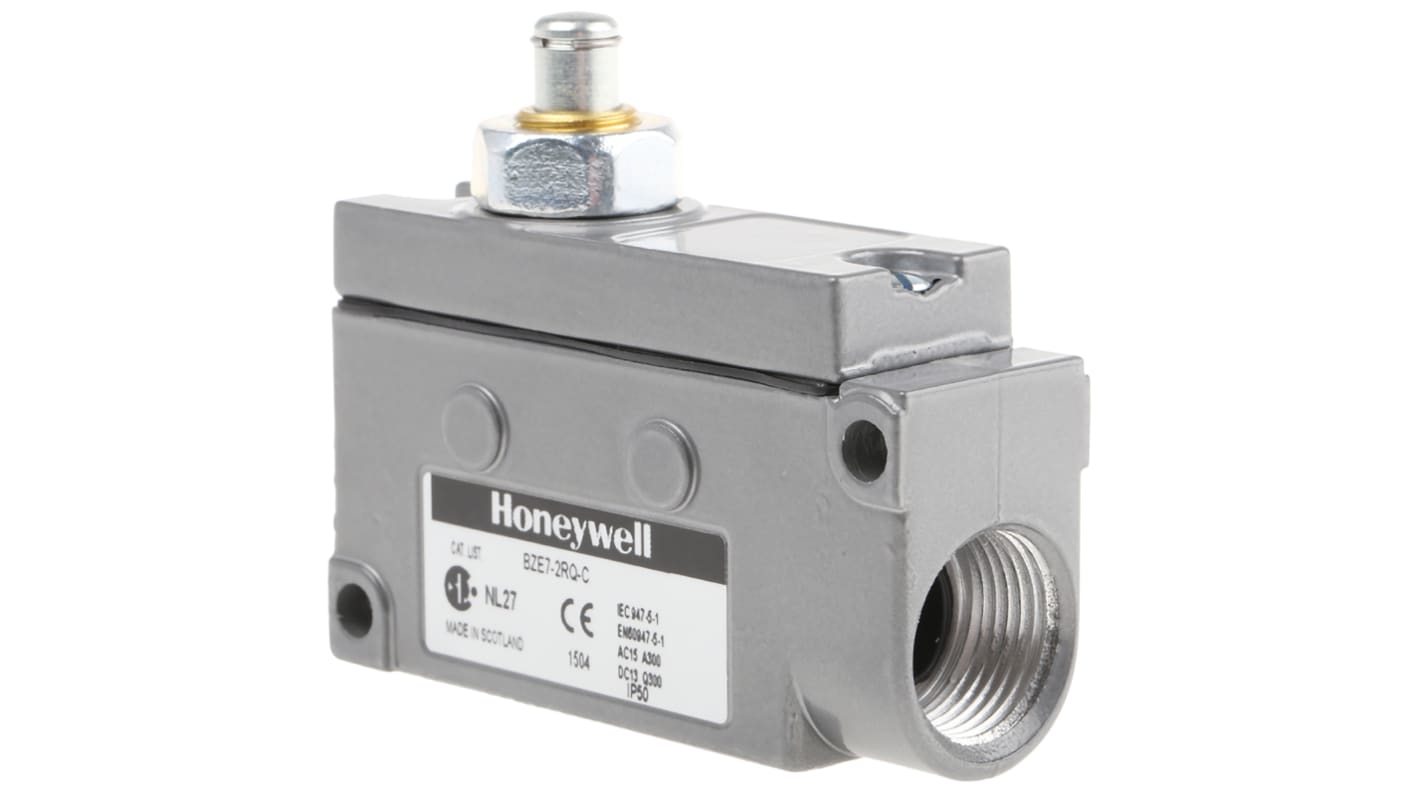

SPDT Plunger Microswitch, 15 A @ 250 V ac

  • RS Stock No. 515-694
  • Mfr. Part No. BZE7-2RQ-C
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

SPDT Metal Housed - Honeywell

Available in sealed (IP65) or standard (IP50) versions
Internal earthing point
Available with standard plunger button, a roller lever actuator or wobble stick lever (IP65)
Roller lever actuator is mounted on a hardened steel bracket allowing horizontal adjustment through 360° and vertical adjustment through 225°
Actuator contact parts made of hardened steel
Operating temperature range: -30 to +70°C
Mechanical life of >105 operations

Specifications
Attribute Value
Actuator Type Plunger
IP Rating IP50
Terminal Type Screw
Operating Force 2.5N
Maximum Operating Temperature +71°C
Mechanical Life Minimum 1000000 Operations
Minimum Operating Temperature -30°C
13 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 526.75
units
Per unit
1 - 24
MYR526.75
25 - 49
MYR511.35
50 - 99
MYR500.15
100 - 249
MYR492.35
250 +
MYR484.95
