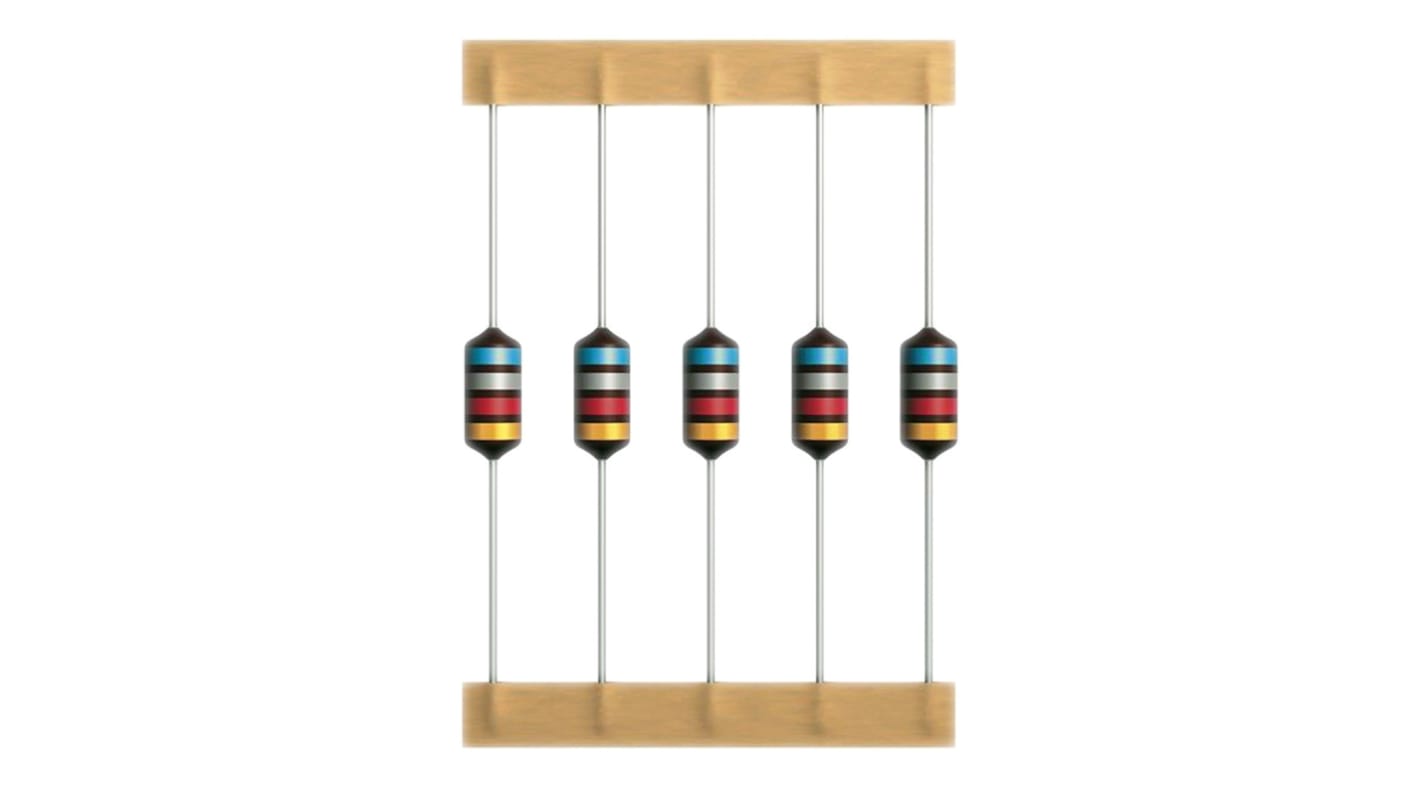

EPCOS 47 mH ±5% Ferrite Leaded Inductor, Max SRF:180kHz, Q:40, 30mA Idc, 230Ω Rdc, LBC
- RS Stock No.:
- 880-7228
- Mfr. Part No.:
- B82144A2476J000
- Manufacturer:
- EPCOS
Bulk discount available
Subtotal (1 bag of 10 units)**
MYR16.66
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 10 - 370 | MYR1.666 | MYR16.66 |
| 380 - 740 | MYR1.582 | MYR15.82 |
| 750 + | MYR1.502 | MYR15.02 |
**price indicative
- RS Stock No.:
- 880-7228
- Mfr. Part No.:
- B82144A2476J000
- Manufacturer:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 47 mH | |
| Maximum DC Current | 30mA | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 230Ω | |
| Tolerance | ±5% | |
| Diameter | 5.2mm | |
| Length | 12mm | |
| Dimensions | 5.2 (Dia.) x 12mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 180kHz | |
| Lead Pitch | 15mm | |
| Series | LBC | |
| Terminal Type | Axial Leaded | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Minimum Quality Factor | 40 | |
| Lead Diameter | 0.8mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 47 mH | ||
Maximum DC Current 30mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 230Ω | ||
Tolerance ±5% | ||
Diameter 5.2mm | ||
Length 12mm | ||
Dimensions 5.2 (Dia.) x 12mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 180kHz | ||
Lead Pitch 15mm | ||
Series LBC | ||
Terminal Type Axial Leaded | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Minimum Quality Factor 40 | ||
Lead Diameter 0.8mm | ||
