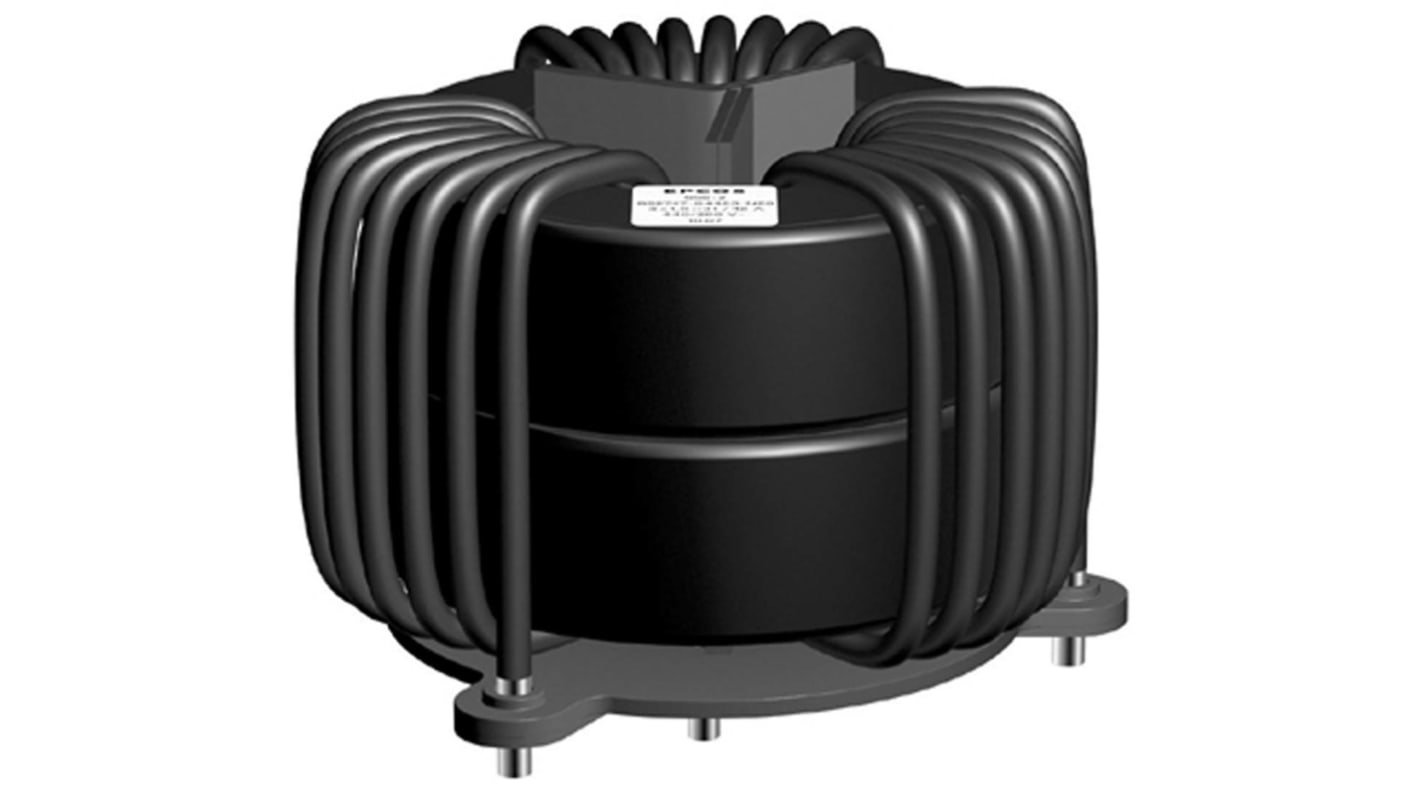

EPCOS 1.5 mH ±30% Ferrite Leaded Inductor, Max SRF:10kHz, 42A Idc, 2.6mΩ Rdc 250 V ac, B82747S
- RS Stock No.:
- 871-1427
- Mfr. Part No.:
- B82747S4423N020
- Manufacturer:
- EPCOS
Bulk discount available
Subtotal (1 unit)**
MYR162.35
26 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 3 | MYR162.35 |
| 4 - 7 | MYR158.96 |
| 8 + | MYR154.20 |
**price indicative
- RS Stock No.:
- 871-1427
- Mfr. Part No.:
- B82747S4423N020
- Manufacturer:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1.5 mH | |
| Maximum DC Current | 42A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 2.6mΩ | |
| Tolerance | ±30% | |
| Diameter | 72mm | |
| Length | 56mm | |
| Height | 51mm | |
| Dimensions | 72 (Dia.) x 51mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10kHz | |
| Series | B82747S | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Lead Diameter | 2.8mm | |
| Terminal Type | PC Pin | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1.5 mH | ||
Maximum DC Current 42A | ||
Mounting Type Radial | ||
Maximum DC Resistance 2.6mΩ | ||
Tolerance ±30% | ||
Diameter 72mm | ||
Length 56mm | ||
Height 51mm | ||
Dimensions 72 (Dia.) x 51mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10kHz | ||
Series B82747S | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Lead Diameter 2.8mm | ||
Terminal Type PC Pin | ||
