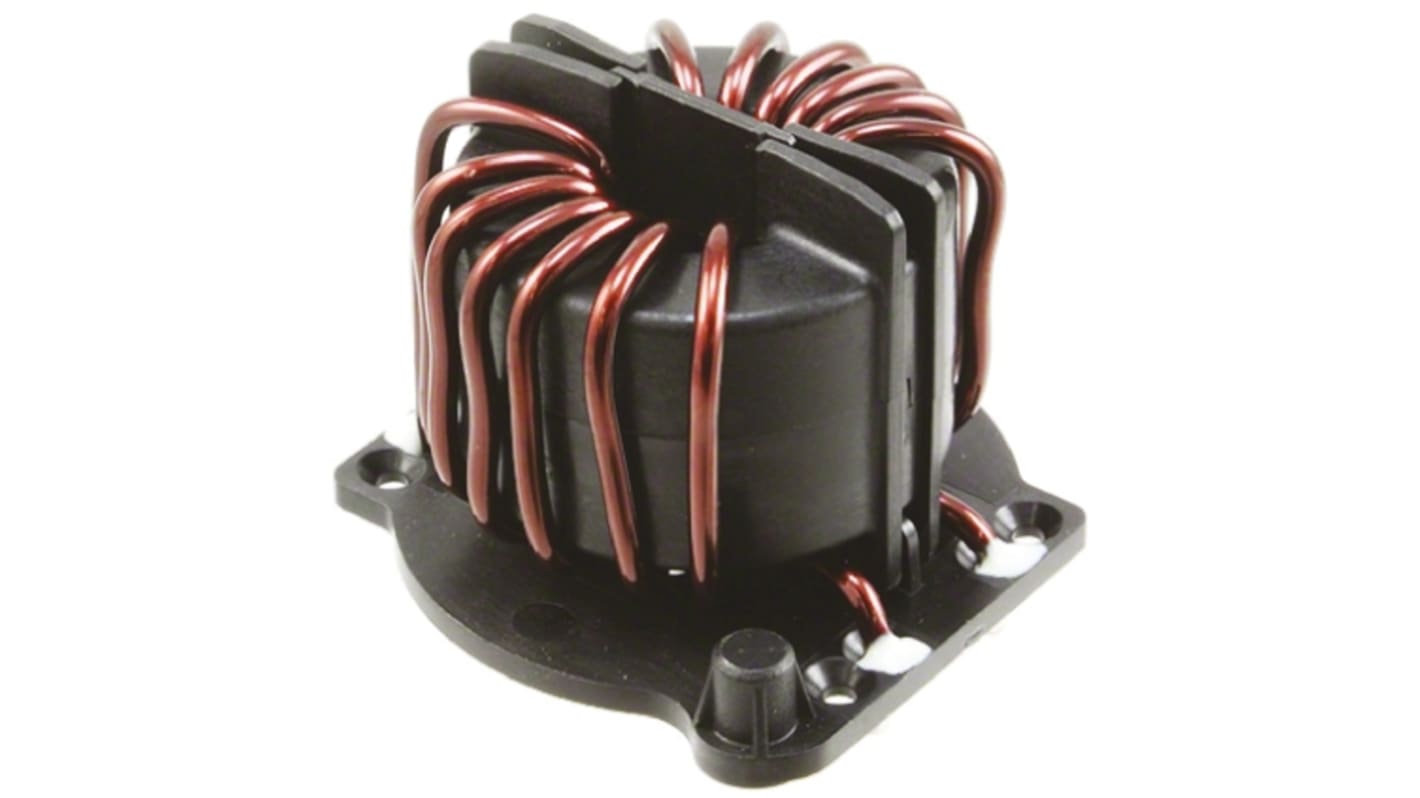

Schaffner 1 mH -30 → +50% Current Compensated Choke, Max SRF:400Hz, 16A Idc, 4.8mΩ Rdc 600,1000 V ac V dc, RB
- RS Stock No.:
- 769-0568
- Mfr. Part No.:
- RB6122-16-1M0
- Manufacturer:
- Schaffner
Bulk discount available
Subtotal (1 unit)**
MYR88.61
22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR88.61 |
| 5 + | MYR85.96 |
**price indicative
- RS Stock No.:
- 769-0568
- Mfr. Part No.:
- RB6122-16-1M0
- Manufacturer:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Inductance | 1 mH | |
| Maximum DC Current | 16A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 4.8mΩ | |
| Tolerance | -30 → +50% | |
| Length | 53.3mm | |
| Depth | 51.34mm | |
| Height | 41.5mm | |
| Dimensions | 53.3 x 51.34 x 41.5mm | |
| Maximum Self Resonant Frequency | 400Hz | |
| Lead Pitch | 15.24mm | |
| Series | RB | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | PC Pin | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 2mm | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Inductance 1 mH | ||
Maximum DC Current 16A | ||
Mounting Type Radial | ||
Maximum DC Resistance 4.8mΩ | ||
Tolerance -30 → +50% | ||
Length 53.3mm | ||
Depth 51.34mm | ||
Height 41.5mm | ||
Dimensions 53.3 x 51.34 x 41.5mm | ||
Maximum Self Resonant Frequency 400Hz | ||
Lead Pitch 15.24mm | ||
Series RB | ||
Maximum Operating Temperature +125°C | ||
Terminal Type PC Pin | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 2mm | ||
