Units	Per Unit	Per Pack**
10 - 1240	MYR0.942	MYR9.42
1250 - 2490	MYR0.922	MYR9.22
2500 +	MYR0.893	MYR8.93

Select all	Attribute	Value
	Brand	EPCOS
	Inductance	22 μH
	Maximum DC Current	560mA
	Mounting Type	Axial
	Maximum DC Resistance	740mΩ
	Tolerance	±10%
	Diameter	4mm
	Length	11.5mm
	Dimensions	4 (Dia.) x 11.5mm
	Core Material	Ferrite
	Maximum Self Resonant Frequency	13MHz
	Series	BC
	Minimum Quality Factor	55

	Select all
	Brand EPCOS
	Inductance 22 μH
	Maximum DC Current 560mA
	Mounting Type Axial
	Maximum DC Resistance 740mΩ
	Tolerance ±10%
	Diameter 4mm
	Length 11.5mm
	Dimensions 4 (Dia.) x 11.5mm
	Core Material Ferrite
	Maximum Self Resonant Frequency 13MHz
	Series BC
	Minimum Quality Factor 55

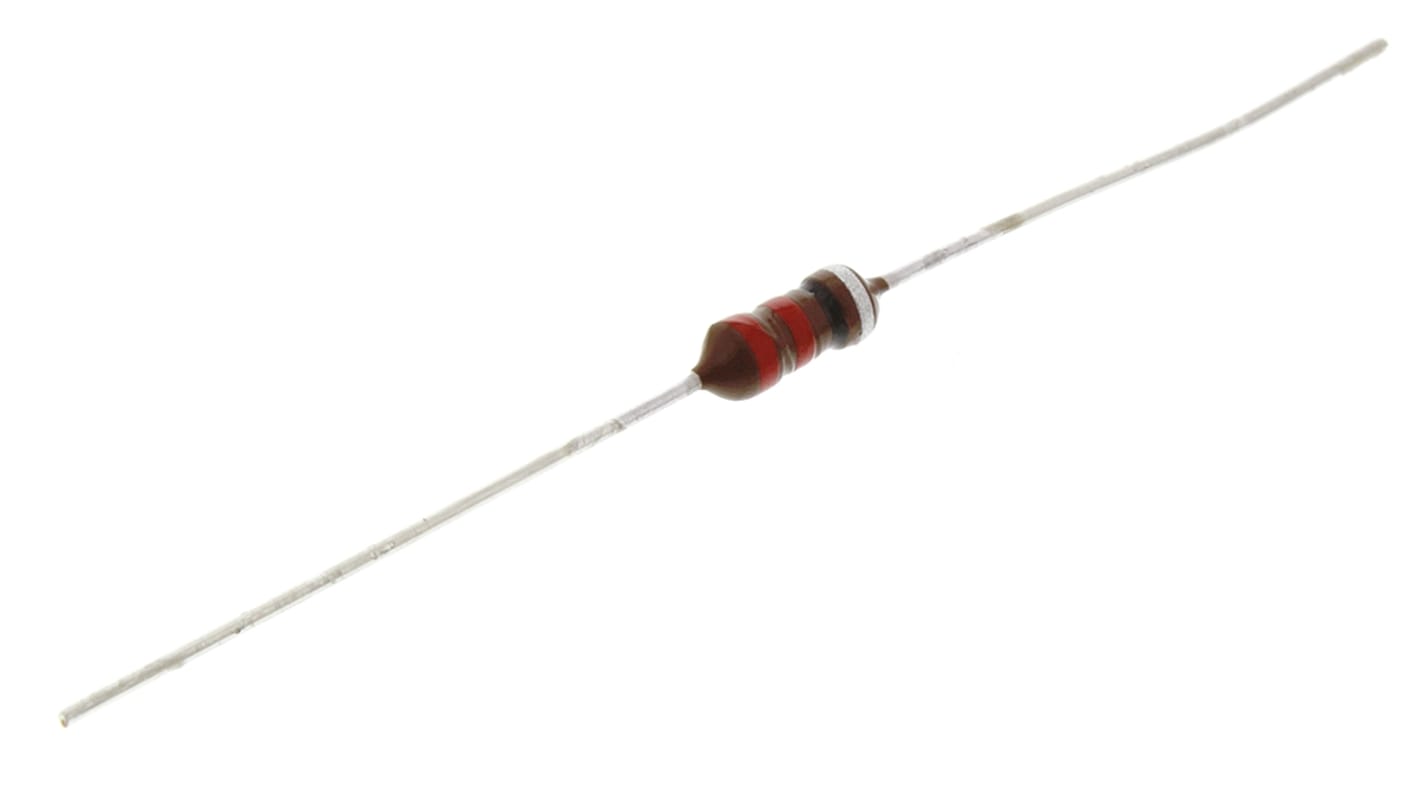

EPCOS 22 μH ±10% Ferrite Leaded Inductor, Max SRF:13MHz, Q:55, 560mA Idc, 740mΩ Rdc, BC

FREE delivery for orders over MYR500.00

Epcos B78108S BC Series Axial Inductors

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
