Murata 2.2 mH ±10% Radial Inductor, Max SRF:1kHz, 240mA Idc, 4.5Ω Rdc, 1300R
- RS Stock No.:
- 167-6220
- Mfr. Part No.:
- 13R225C
- Manufacturer:
- Murata Power Solutions

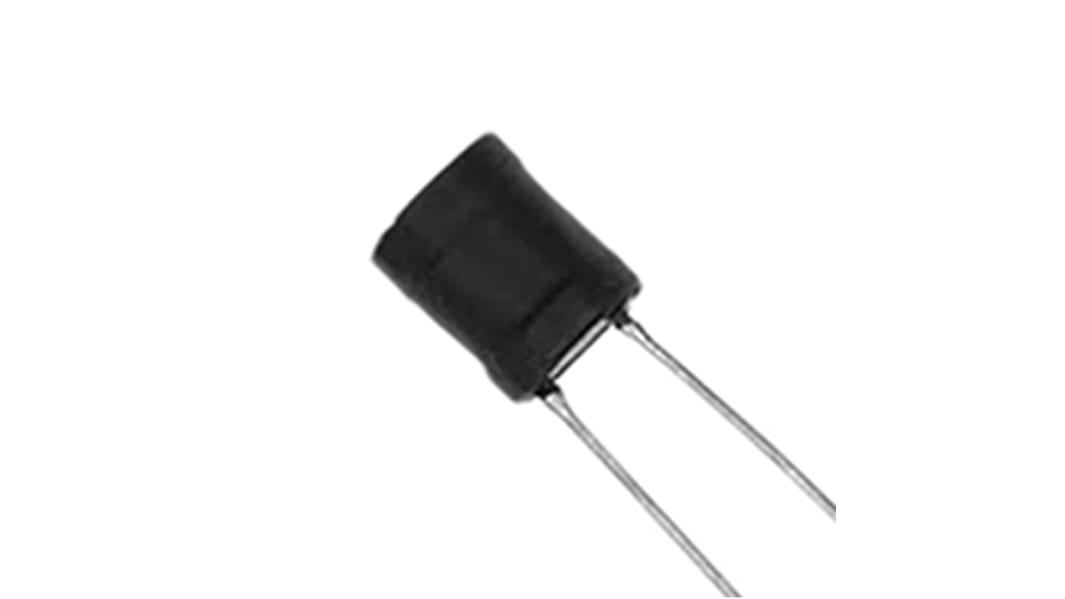

This image is representative of the product range
View all Leaded Inductors
Temporarily out of stock - back order for despatch 26/06/2023, delivery within 4 working days from despatch date
Price Each (In a Box of 200)
MYR2.45
| units | Per Unit | Per Box* |
| 200 - 200 | MYR2.45 | MYR490.00 |
| 400 - 600 | MYR2.412 | MYR482.40 |
| 800 + | MYR2.365 | MYR473.00 |
| *price indicative | ||
- RS Stock No.:
- 167-6220
- Mfr. Part No.:
- 13R225C
- Manufacturer:
- Murata Power Solutions
- COO (Country of Origin):
- CN
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
1300 Series Unshielded Inductors
Professional range of Murata unshielded inductors from the 1300 series. The inductors are suitable for applications such as power supplies and general purpose filtering designs.
1300 Series are general purpose range of inductors suitable for low to medium current applications
Radial Mount
Up to 6.3A
1.5μH to 68μH
Low DC resistance
Radial Mount
Up to 6.3A
1.5μH to 68μH
Low DC resistance
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Murata Non Standard SMT Inductors (Chokes)
Specifications
| Attribute | Value |
| Inductance | 2.2 mH |
| Maximum DC Current | 240mA |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 4.5Ω |
| Tolerance | ±10% |
| Diameter | 9.5mm |
| Height | 13.5mm |
| Dimensions | 9.5 (Dia.) x 13.5 (H)mm |
| Maximum Self Resonant Frequency | 1kHz |
| Lead Pitch | 5mm |
| Series | 1300R |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Radial Leaded |
| Lead Diameter | 0.65mm |
