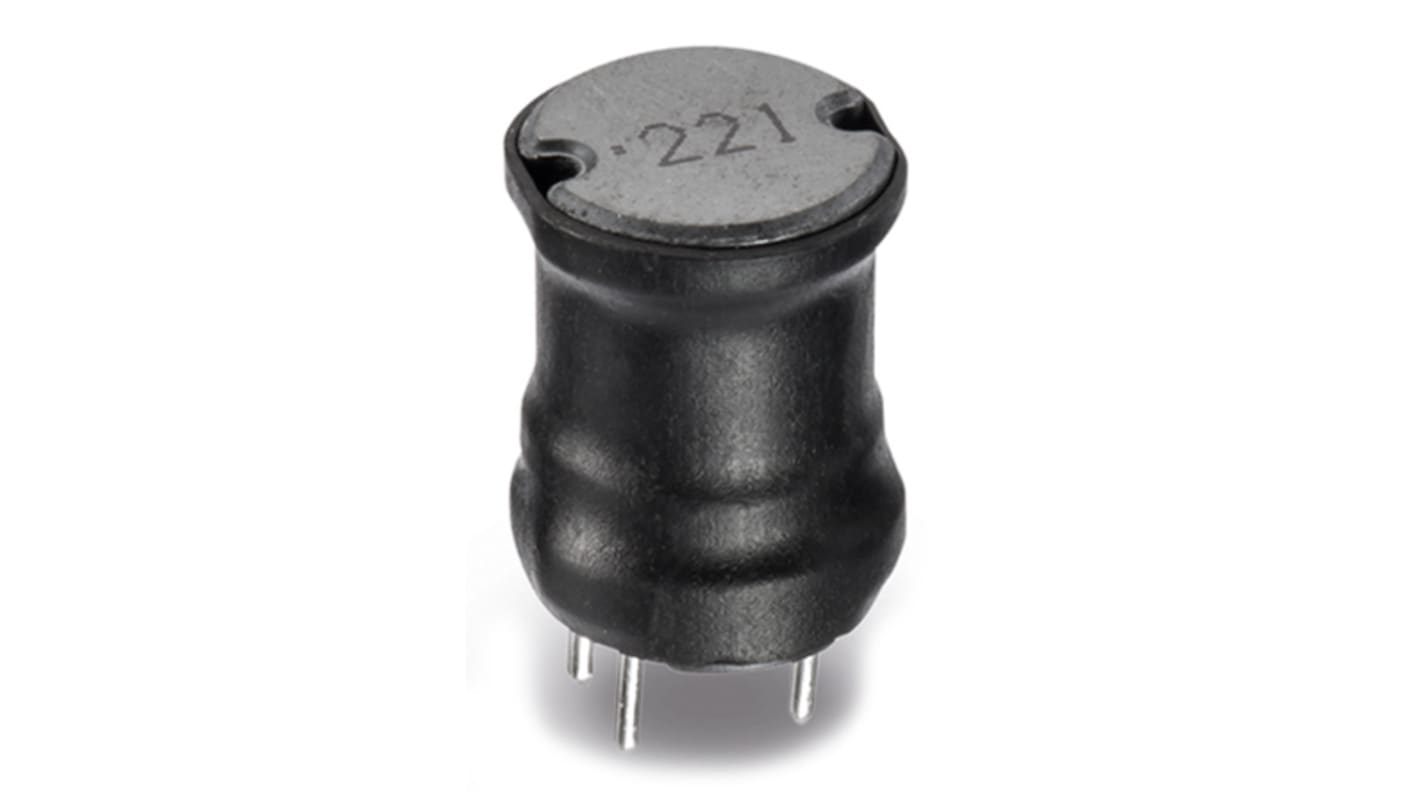

Wurth 1 mH ±5% Ferrite Leaded Inductor, Max SRF:1MHz, 750mA Idc, 980mΩ Rdc, WE-TIF
- RS Stock No.:
- 163-8227
- Mfr. Part No.:
- 7447221102
- Manufacturer:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tray of 70 units)**
MYR642.46
140 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Tray** |
---|---|---|
70 - 70 | MYR9.178 | MYR642.46 |
140 - 210 | MYR8.976 | MYR628.32 |
280 + | MYR8.811 | MYR616.77 |
**price indicative
- RS Stock No.:
- 163-8227
- Mfr. Part No.:
- 7447221102
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 1 mH | |
Maximum DC Current | 750mA | |
Mounting Type | Radial | |
Maximum DC Resistance | 980mΩ | |
Tolerance | ±5% | |
Diameter | 11mm | |
Length | 11mm | |
Depth | 11mm | |
Height | 17mm | |
Dimensions | 11 (Dia.) x 17mm | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 1MHz | |
Lead Pitch | 6.5mm | |
Series | WE-TIF | |
Lead Diameter | 0.8mm | |
Terminal Type | Radial Leaded | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 mH | ||
Maximum DC Current 750mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 980mΩ | ||
Tolerance ±5% | ||
Diameter 11mm | ||
Length 11mm | ||
Depth 11mm | ||
Height 17mm | ||
Dimensions 11 (Dia.) x 17mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 1MHz | ||
Lead Pitch 6.5mm | ||
Series WE-TIF | ||
Lead Diameter 0.8mm | ||
Terminal Type Radial Leaded | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
