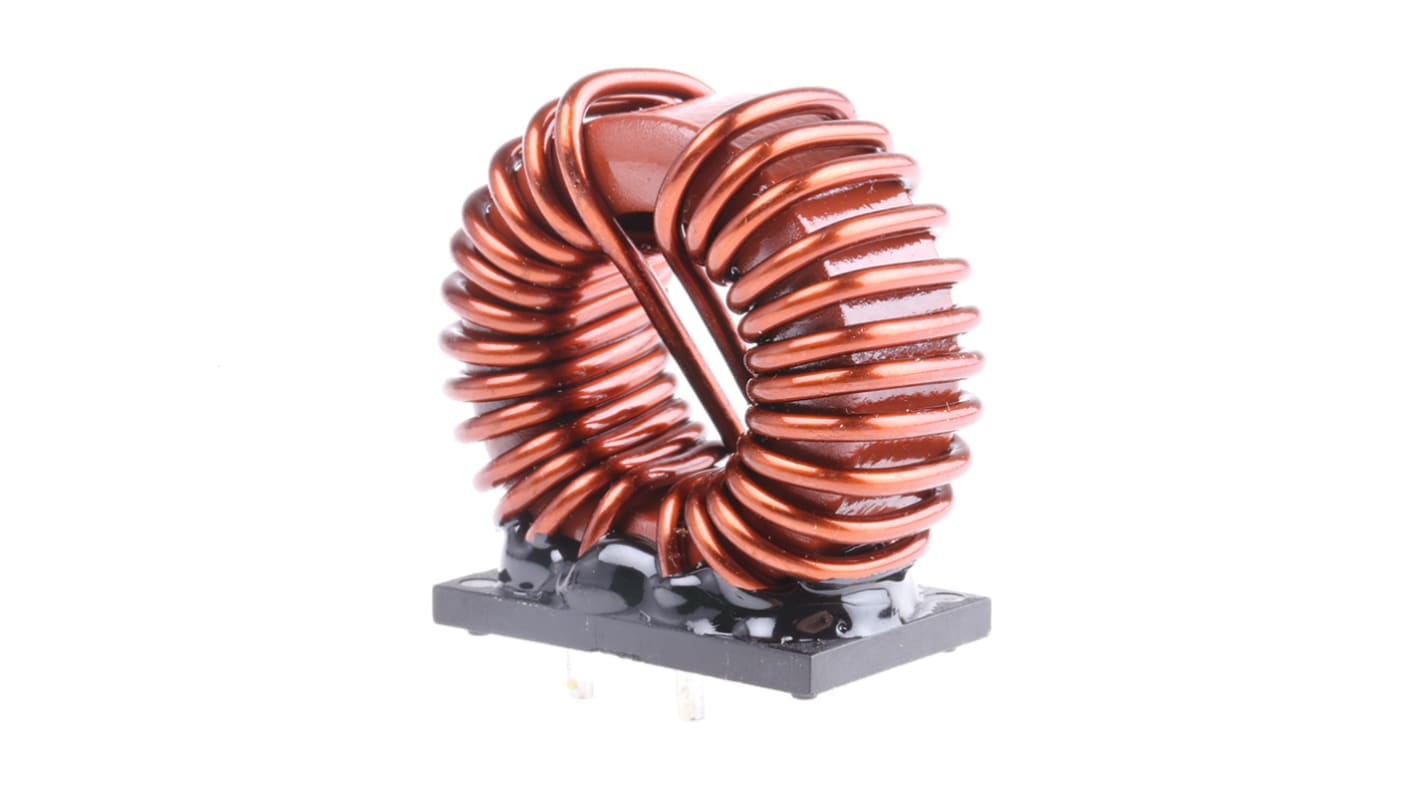

Wurth 1 mH ±30% Ferrite Common Mode Choke, Max SRF:100kHz, 25A Idc, 3.6mΩ Rdc 250 V ac, WE-CMB
- RS Stock No.:
- 163-4250
- Mfr. Part No.:
- 7448262510
- Manufacturer:
- Wurth Elektronik
Subtotal (1 box of 18 units)**
MYR1,891.098
144 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 18 + | MYR105.061 | MYR1,891.098 |
**price indicative
- RS Stock No.:
- 163-4250
- Mfr. Part No.:
- 7448262510
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1 mH | |
| Maximum DC Current | 25A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 3.6mΩ | |
| Tolerance | ±30% | |
| Length | 44mm | |
| Depth | 23.5mm | |
| Height | 43mm | |
| Dimensions | 44 x 23.5 x 43mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 100kHz | |
| Lead Pitch | 10mm | |
| Series | WE-CMB | |
| Lead Diameter | 2mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | Through Hole | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 mH | ||
Maximum DC Current 25A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 3.6mΩ | ||
Tolerance ±30% | ||
Length 44mm | ||
Depth 23.5mm | ||
Height 43mm | ||
Dimensions 44 x 23.5 x 43mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 100kHz | ||
Lead Pitch 10mm | ||
Series WE-CMB | ||
Lead Diameter 2mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Terminal Type Through Hole | ||
