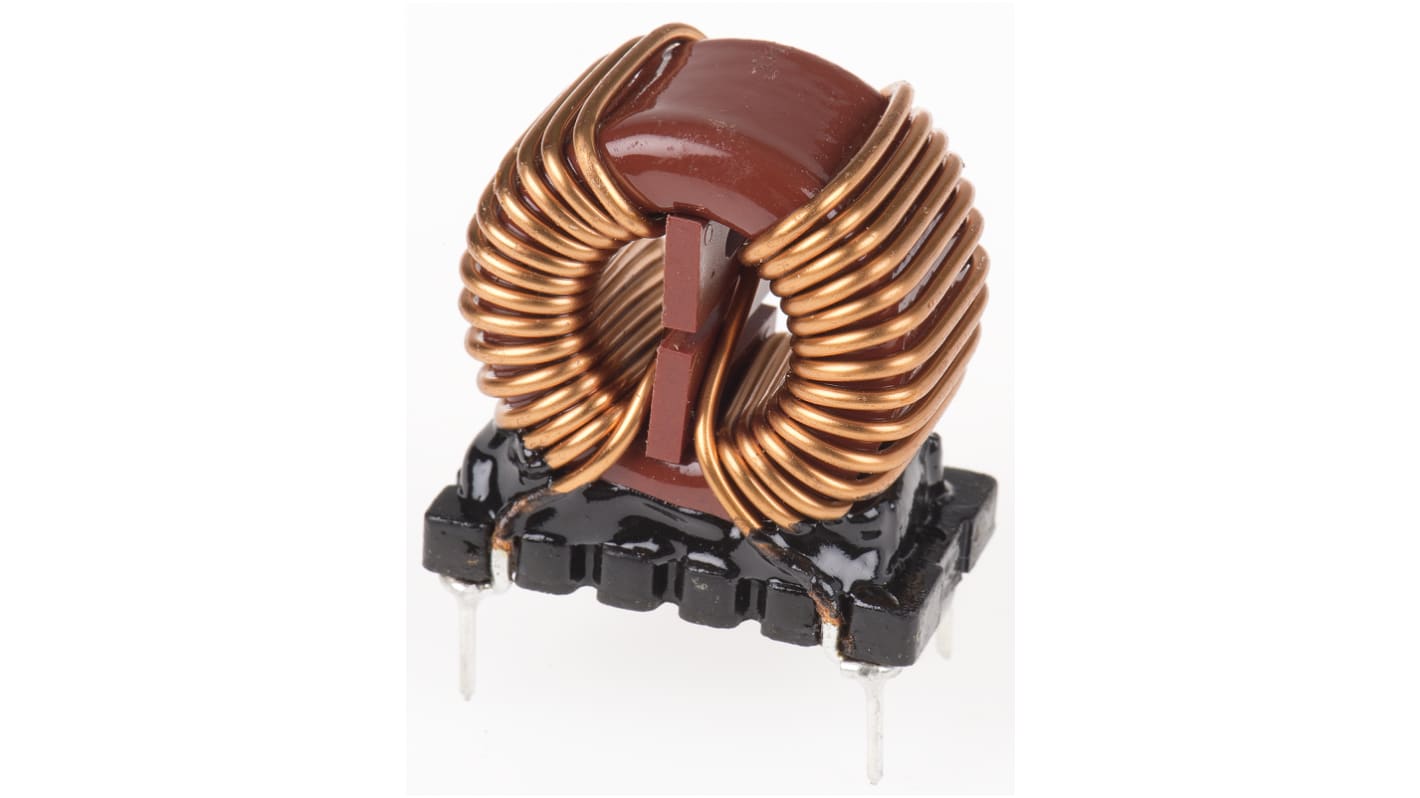

Wurth 2.2 mH ±30% Common Mode Choke, 8A Idc, 14mΩ Rdc 250 V ac, WE-CMB
- RS Stock No.:
- 163-3407
- Mfr. Part No.:
- 7448258022
- Manufacturer:
- Wurth Elektronik
Subtotal (1 tray of 20 units)**
MYR490.98
Temporarily out of stock - back order for despatch 21/11/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Tray** |
---|---|---|
20 + | MYR24.549 | MYR490.98 |
**price indicative
- RS Stock No.:
- 163-3407
- Mfr. Part No.:
- 7448258022
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 2.2 mH | |
Maximum DC Current | 8A | |
Mounting Type | Radial | |
Maximum DC Resistance | 14mΩ | |
Tolerance | ±30% | |
Length | 30.5mm | |
Depth | 21mm | |
Height | 35mm | |
Dimensions | 30.5 x 21 x 35mm | |
Lead Pitch | 25mm | |
Series | WE-CMB | |
Minimum Operating Temperature | -40°C | |
Lead Diameter | 1mm | |
Terminal Type | Through Hole | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 2.2 mH | ||
Maximum DC Current 8A | ||
Mounting Type Radial | ||
Maximum DC Resistance 14mΩ | ||
Tolerance ±30% | ||
Length 30.5mm | ||
Depth 21mm | ||
Height 35mm | ||
Dimensions 30.5 x 21 x 35mm | ||
Lead Pitch 25mm | ||
Series WE-CMB | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 1mm | ||
Terminal Type Through Hole | ||
Maximum Operating Temperature +125°C | ||
