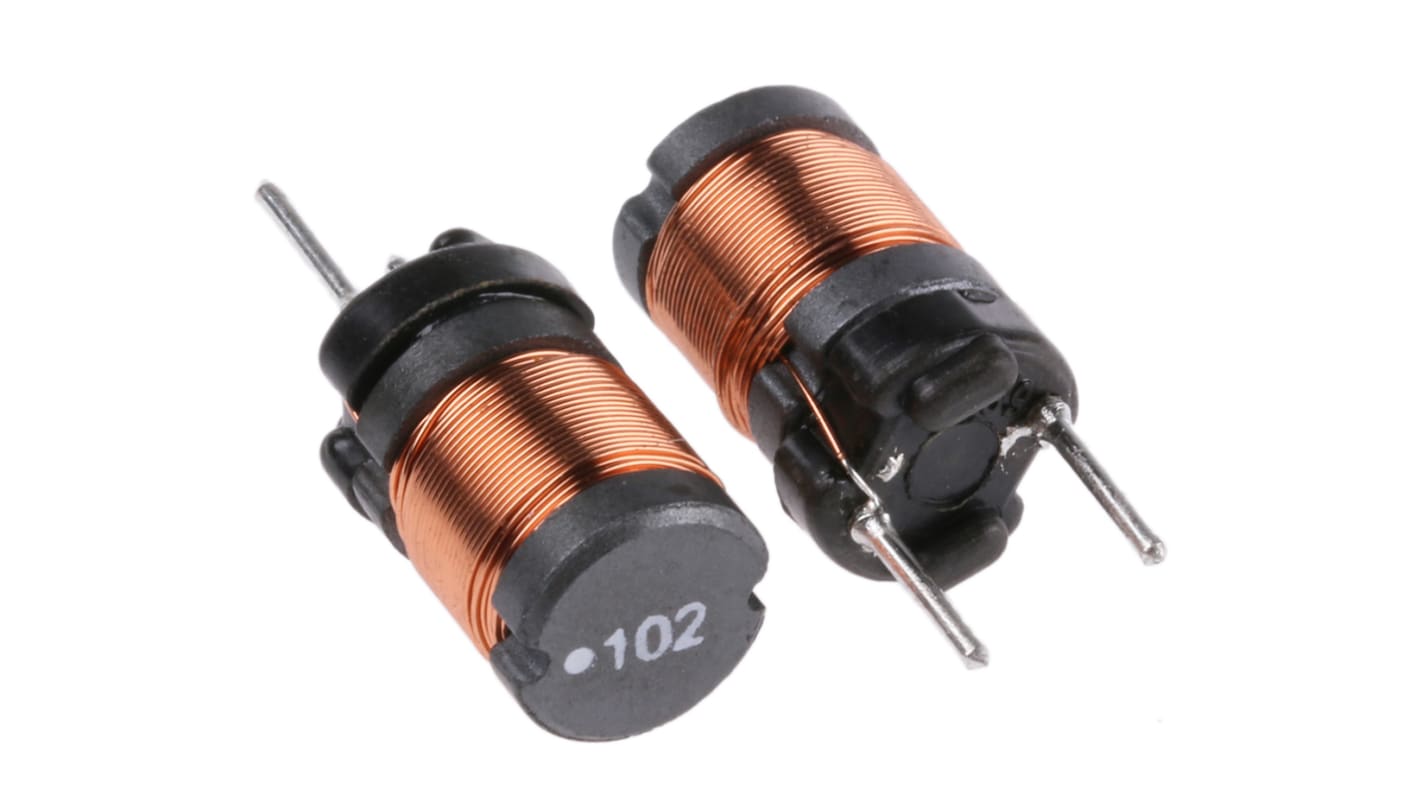

Wurth 1 mH ±5% Ferrite Leaded Inductor, Max SRF:1.6MHz, 420mA Idc, 2.5Ω Rdc, WE-TI
- RS Stock No.:
- 163-3309
- Mfr. Part No.:
- 744743102
- Manufacturer:
- Wurth Elektronik
600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
999399 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tray of 100)
MYR6.372
| Units | Per Unit | Per Tray* |
| 100 - 100 | MYR6.372 | MYR637.20 |
| 200 - 300 | MYR6.231 | MYR623.10 |
| 400 + | MYR6.117 | MYR611.70 |
| *price indicative | ||
- RS Stock No.:
- 163-3309
- Mfr. Part No.:
- 744743102
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
Wurth WE-TI Series Radial Filter Chokes
Characteristics
Radial through-hole inductor
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C
Applications
Signal filtering
Switches, switching power supply for small and medium voltage
Power supply filter
Switches, switching power supply for small and medium voltage
Power supply filter
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Wurth Leaded Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 1 mH |
| Maximum DC Current | 420mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 2.5Ω |
| Tolerance | ±5% |
| Diameter | 8mm |
| Height | 12.5mm |
| Dimensions | 8 (Dia.) x 12.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 1.6MHz |
| Lead Pitch | 5mm |
| Series | WE-TI |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Lead Diameter | 0.7mm |
| Terminal Type | Through Hole |
