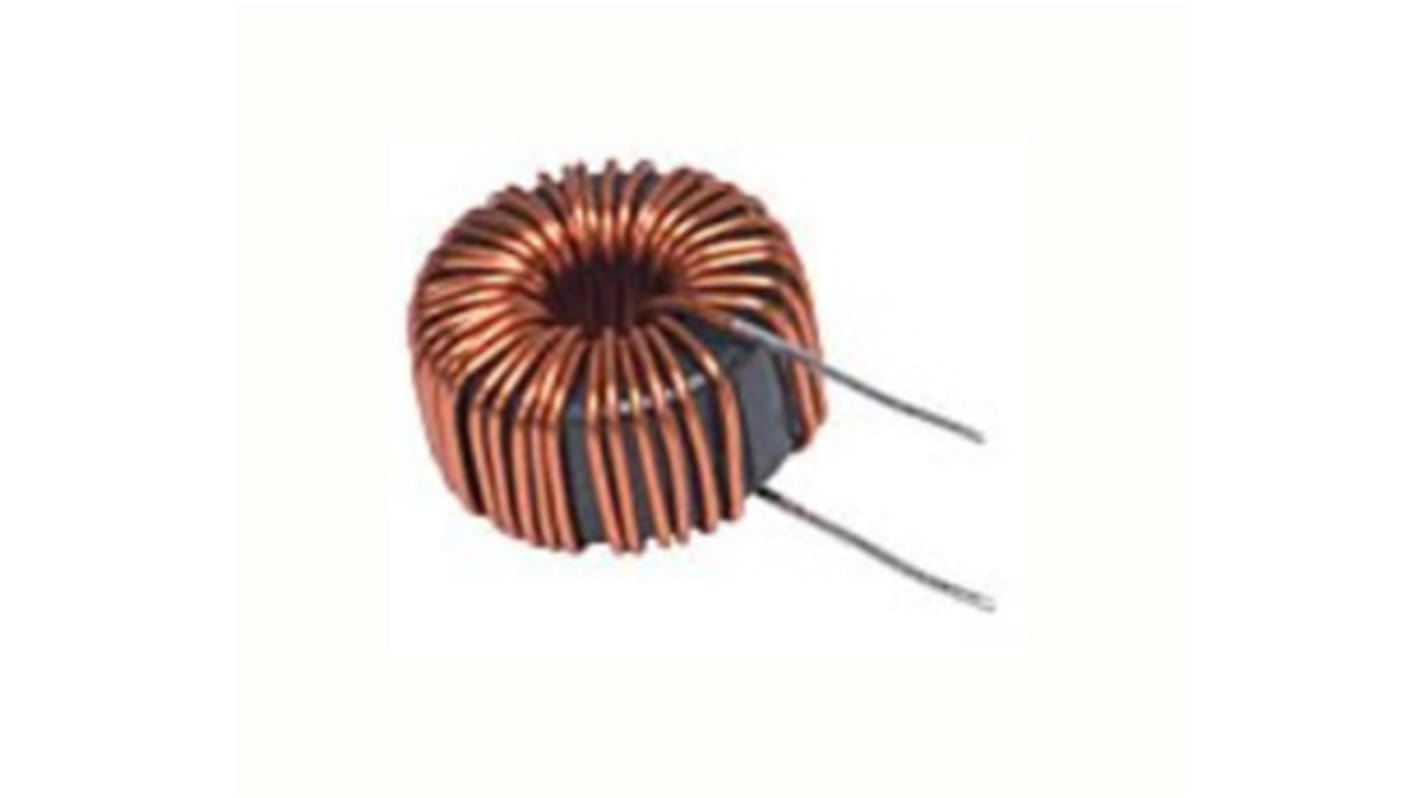

Tamura 100 μH ±25% Ferrite Coil Inductor, 10A Idc, 15mΩ Rdc NAC-10

  • RS Stock No. 153-6903
  • Mfr. Part No. NAC-10-0101
  • Manufacturer Tamura
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Tamura's choke coils being manufactured through the study on unique features of carefully selected magnetic metal materials, under the highest levels of magnetic characteristics and electric designing technology. Magnetic metal materials provide a high saturation magnetic flux density and good stability for the humidity, which are suitable to make the cores in light weight and miniature size.

Amorphous iron cores with precised gap are used in the coil. Small size/light weight can be designed.

Low core-loss at high frequency.
Designable for small size/light weight compared with the ferrite core and dust core.
Coils for a high-power can be designed.
APPLICATIONS:For smoothing switching power supplies output.

Specifications
Attribute Value
Inductance 100 μH
Maximum DC Current 10A
Mounting Type Through Hole
Maximum DC Resistance 15mΩ
Tolerance ±25%
Diameter 34mm
Height 20mm
Dimensions 34 (Dia.) x 20mm
Core Material Ferrite
Series NAC-10
Lead Diameter 2 x 1.1mm
Terminal Type Wire
18 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 71.72
units
Per unit
1 - 4
MYR71.72
5 - 9
MYR64.51
10 +
MYR57.31
