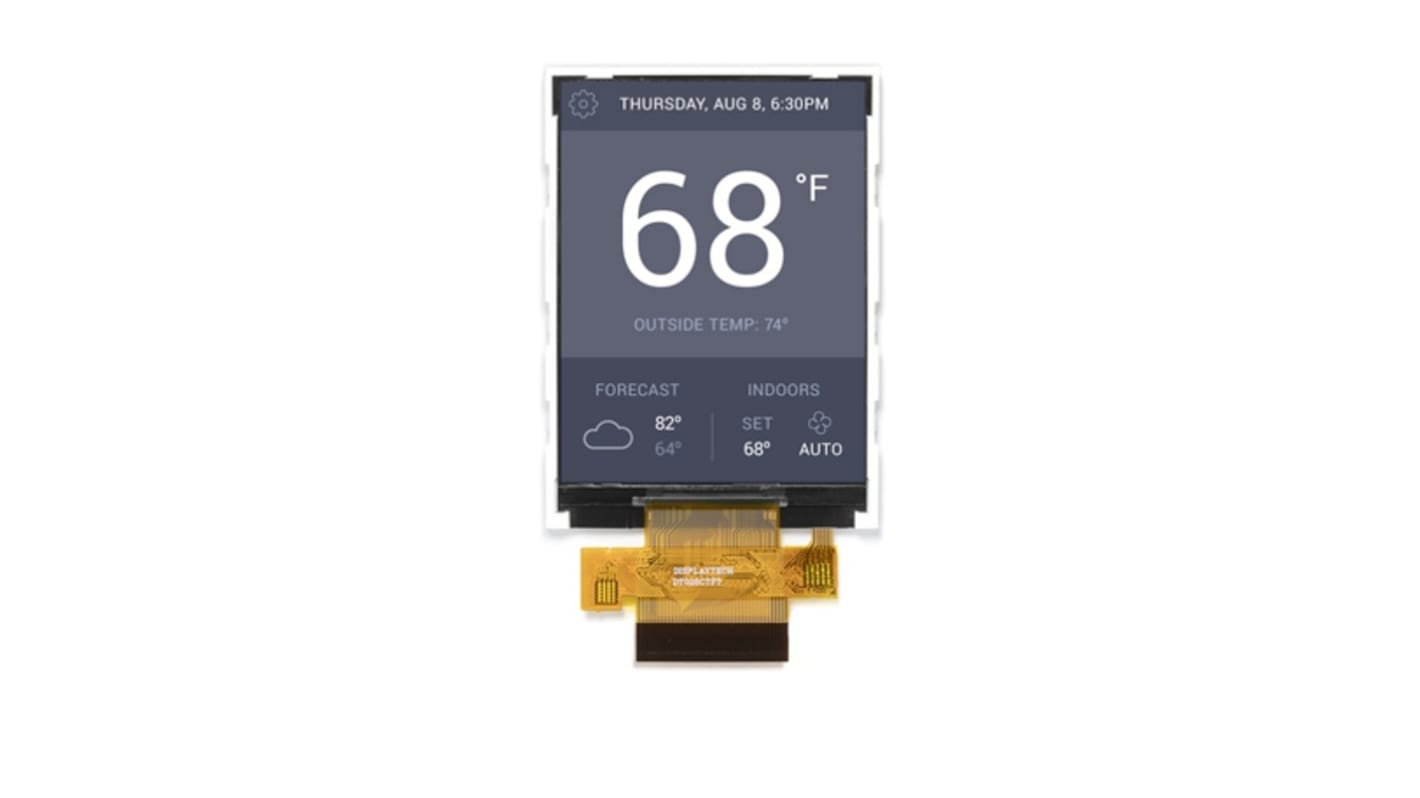

Name: Displaytech DT028CTFT-PTS2 IPS TFT TFT LCD Display / Touch Screen, 2.8in QVGA, 240 x 320pixels
Brand: Displaytech
SKU: 232-2359
Price: 179.41 MYR
Availability: InStock

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Displaytech
	Diagonal Display Size	2.8in
	Interface Type	8-Bit, 9-Bit, 16-Bit, 18-Bit, SPI
	Resolution	240 x 320pixels
	Touch Screen	Yes
	Viewing Area Dimensions	43.20 x 57.60mm
	Supply Voltage	2.8 V
	Touch Screen Type	Capacitive
	Backlight Type	LED
	Display Mode	Transmissive
	AC or DC Input Voltage	dc
	Dimensions	50 x 69.2 mm, 50 x 69.20 x 4.32 mm
	Display Matrix Technology	IPS TFT
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Graphics Array Type	QVGA
	Brightness	430cd/m²
	Operating Temperature Range	-20 → 70°C
	Depth	4.32mm
	Voltage Rating	2.5 → 3.3V
	Viewing Area Height	43.2mm
	Contrast Ratio	20.8340277777778
	Viewing Area Width	57.6mm
	Series	DT028
	Display Type	TFT
	Width	50mm
	Current Rating	80mA
	Response Time	35ms
	Height	69.2mm

	Select all
	Brand Displaytech
	Diagonal Display Size 2.8in
	Interface Type 8-Bit, 9-Bit, 16-Bit, 18-Bit, SPI
	Resolution 240 x 320pixels
	Touch Screen Yes
	Viewing Area Dimensions 43.20 x 57.60mm
	Supply Voltage 2.8 V
	Touch Screen Type Capacitive
	Backlight Type LED
	Display Mode Transmissive
	AC or DC Input Voltage dc
	Dimensions 50 x 69.2 mm, 50 x 69.20 x 4.32 mm
	Display Matrix Technology IPS TFT
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
	Graphics Array Type QVGA
	Brightness 430cd/m²
	Operating Temperature Range -20 → 70°C
	Depth 4.32mm
	Voltage Rating 2.5 → 3.3V
	Viewing Area Height 43.2mm
	Contrast Ratio 20.8340277777778
	Viewing Area Width 57.6mm
	Series DT028
	Display Type TFT
	Width 50mm
	Current Rating 80mA
	Response Time 35ms
	Height 69.2mm

Datasheet - DT028CTFT-PTS2

The Displaytech have 2.8" TFT LCD module with IPS panel. This LCD module has 240 x 320 RGB resolution with a full viewing angle from any direction. The 2.8 inch LCD uses the Ilitek ILI9341 single-chip driver to drive the display. The IPS display offers improved colour accuracy, crisp images, and high refresh rate. This 2.8” IPS TFT LCD module includes a colour TFT-LCD, driver IC, FPC, and LED backlight. Available in a standard non-touch or capacitive touch screen display.

Resolution is 240(RGB)x320
Interface is RGB/MCU
Technology type is IPS TFT
Outline dimension (W x H x D) are 50.00x69.20x4.32 mm
Active area is 43.20x57.60 mm
Display Mode is transmissive normally black

Units	Per Unit
1 - 4	MYR179.41
5 - 9	MYR174.03
10 +	MYR168.81

Displaytech DT028CTFT-PTS2 IPS TFT TFT LCD Display / Touch Screen, 2.8in QVGA, 240 x 320pixels
