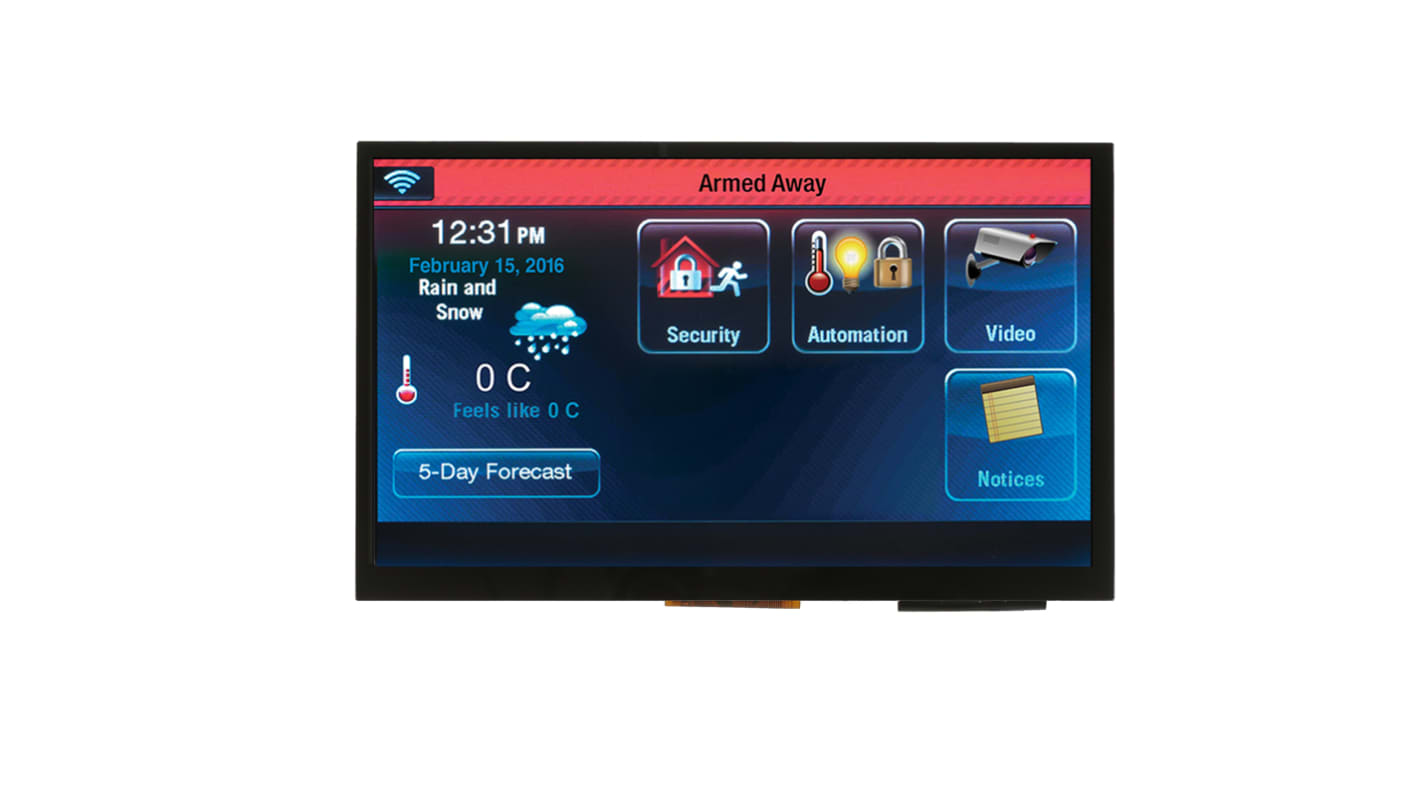

Midas MDT0700ESSC-HDMI LCD Colour Display Touch Screen, 7 in, 1024 x 600 pixel
- RS Stock No.:
- 225-6215
- Mfr. Part No.:
- MDT0700ESSC-HDMI
- Manufacturer:
- Midas
Bulk discount available
Subtotal (1 unit)*
MYR764.44
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 47 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR764.44 |
| 5 - 9 | MYR733.86 |
| 10 + | MYR703.29 |
*price indicative
- RS Stock No.:
- 225-6215
- Mfr. Part No.:
- MDT0700ESSC-HDMI
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Product Type | LCD Colour Display | |
| Diagonal Display Size | 7in | |
| Interface Type | HDMI | |
| Current | 1200mA | |
| Screen Resolution | 1024 x 600 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 154.2144 x 85.92 mm | |
| Touch Screen Type | Capacitive | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 4.9V | |
| Maximum Supply Voltage | 5.1V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Height | 99.80mm | |
| Width | 164.80 mm | |
| Brightness | 450cd/m² | |
| Power Supply Included | Yes | |
| Display Type | TFT | |
| Aspect Ratio | 16:9 | |
| Contrast Ratio | 500:1 | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Product Type LCD Colour Display | ||
Diagonal Display Size 7in | ||
Interface Type HDMI | ||
Current 1200mA | ||
Screen Resolution 1024 x 600 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 154.2144 x 85.92 mm | ||
Touch Screen Type Capacitive | ||
Backlight Type LED | ||
Minimum Supply Voltage 4.9V | ||
Maximum Supply Voltage 5.1V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Height 99.80mm | ||
Width 164.80 mm | ||
Brightness 450cd/m² | ||
Power Supply Included Yes | ||
Display Type TFT | ||
Aspect Ratio 16:9 | ||
Contrast Ratio 500:1 | ||
The Midas MDT0700ESSC-HDMI TFT is a TN transmissive type colour active-matrix LCD with 7.0-inch diagonal active area and a resolution of 1024 x 600. It has a landscape orientation with HDMI A input. This display has a capacitive touch panel (plug and play via USB), initialised as an HID device on Linux and Windows Operating Systems. The pinout/mounting is optimised for the Raspberry Pi and OKDO ROCK. Previously called MCT070HDMI-B-CTP. This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs (tested on vanilla Linux/Windows Operating systems).
Features Summary:
•This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs
•Can be used with Midas MCIB-HDMI/HDMI interconnect board and MCIC-USB Cable for the touch panel
•Size (inches): 7.0"
•Resolution: 1024x600
•Module Dimensions (mm): 164.8 x 99.8 x 26.5
•Active Area (mm): 154.21 x 85.92
•Interface: HDMI (display), USB (touch)
•Touch: Capacitive
•Brightness (cd/m2): 450
•Display Technology: TN
•Operating Temperature (°C): -20°C to +70°C
•Orientation: Landscape
