Littelfuse Battery Isolator Switch -, IP67, IP69K
- RS Stock No.:
- 905-8815
- Mfr. Part No.:
- 880175
- Manufacturer:
- Littelfuse
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
85 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR515.54
| Units | Per Unit |
| 1 - 9 | MYR515.54 |
| 10 - 19 | MYR504.70 |
| 20 - 49 | MYR489.23 |
| 50 + | MYR477.36 |
- RS Stock No.:
- 905-8815
- Mfr. Part No.:
- 880175
- Manufacturer:
- Littelfuse
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

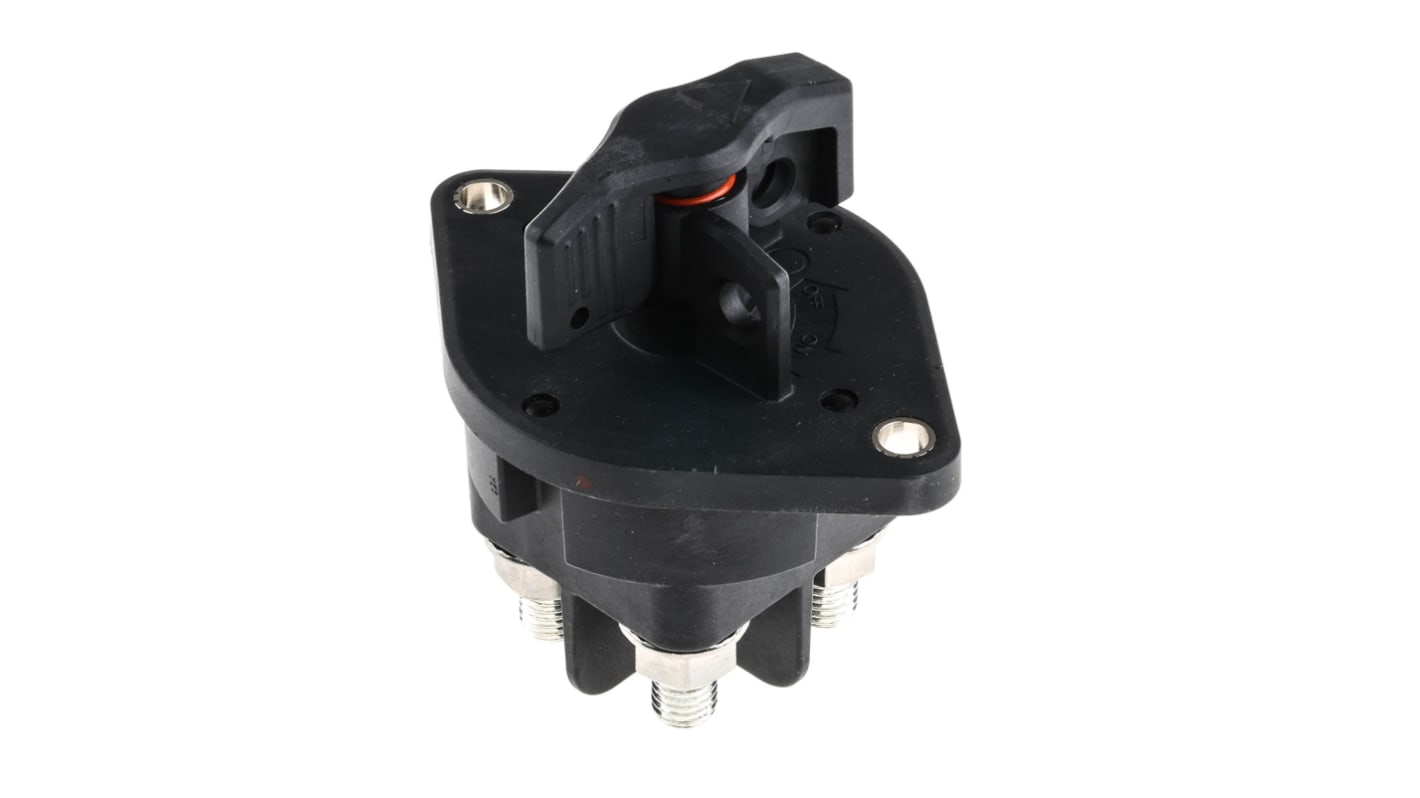

TR Series 500A Master Disconnect Switch, Dual Pole
The TR series master disconnect switch will cut all battery power from vehicle electrical systems for applications needing switching of two circuits or both positive and negative. It is extremely durable with a high continuous current rating of 500 A on each circuit. It is also IP67/IP69K rated allowing it to be mounted in exposed locations.
It has countless possible applications but can even be used to switch two vehicle voltage circuits at the same time (12 V and 24 V). It also has a lock-out/tag-out feature in both the On and Off position and can be secured with a padlock or hasp.
It has countless possible applications but can even be used to switch two vehicle voltage circuits at the same time (12 V and 24 V). It also has a lock-out/tag-out feature in both the On and Off position and can be secured with a padlock or hasp.
Features and Benefits
Can be used to switch two vehicle voltage circuits simultaneously
Disconnect a battery or multiple batteries, in either the positive or the negative line
High continuous current rating for each of the two circuits
Max operating voltage: 48 V dc
Operating temperature range: -50°C to +85°C (DC rated to +105°C)
Disconnect a battery or multiple batteries, in either the positive or the negative line
High continuous current rating for each of the two circuits
Max operating voltage: 48 V dc
Operating temperature range: -50°C to +85°C (DC rated to +105°C)
Specifications
Attribute | Value |
|---|---|
| IP Rating | IP67, IP69K |
| Voltage Rating | 48V dc |
| Normal State Configuration | NC, NO |
| Length | 103mm |
| Width | 120mm |
| Depth | 85mm |
| Maximum Operating Temperature | +105 °C, +85°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -50°C |
