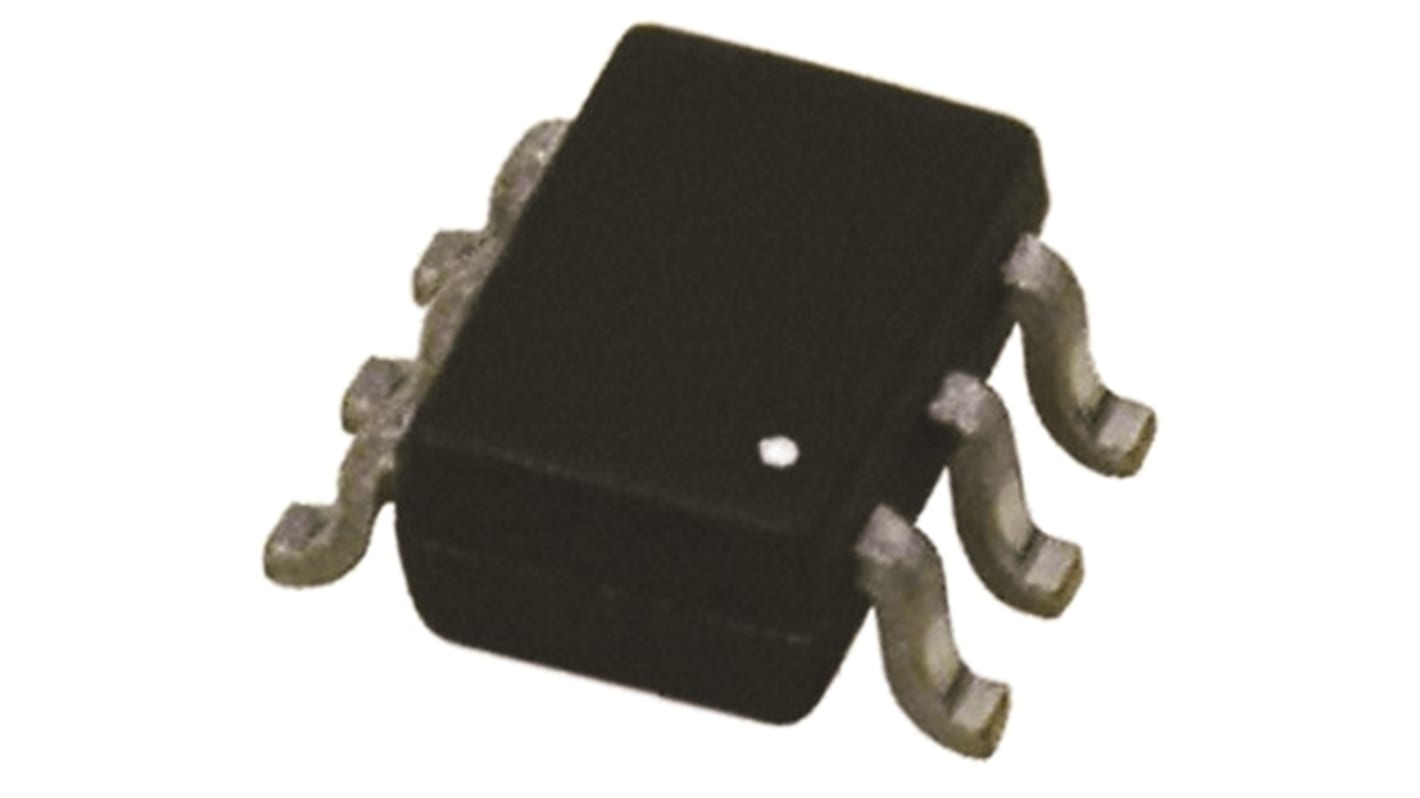

Nexperia 74LVC2G14GW,125 Dual Schmitt Trigger Inverter, 6-Pin SC-88
- RS Stock No.:
- 816-8814
- Mfr. Part No.:
- 74LVC2G14GW,125
- Manufacturer:
- Nexperia
Bulk discount available
Subtotal (1 pack of 40 units)**
MYR12.40
120 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
---|---|---|
40 - 720 | MYR0.31 | MYR12.40 |
760 - 1480 | MYR0.299 | MYR11.96 |
1520 + | MYR0.284 | MYR11.36 |
**price indicative
- RS Stock No.:
- 816-8814
- Mfr. Part No.:
- 74LVC2G14GW,125
- Manufacturer:
- Nexperia
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Logic Function | Inverter | |
Input Type | Schmitt Trigger | |
Number of Elements per Chip | 2 | |
Schmitt Trigger Input | Yes | |
Maximum Propagation Delay Time @ Maximum CL | 12 ns @ 50 pF | |
Maximum High Level Output Current | -32mA | |
Maximum Low Level Output Current | 32mA | |
Mounting Type | Surface Mount | |
Package Type | SC-88 | |
Pin Count | 6 | |
Logic Family | LVC | |
Dimensions | 2.2 x 1.35 x 1mm | |
Height | 1mm | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum Operating Temperature | +125 °C | |
Width | 1.35mm | |
Length | 2.2mm | |
Minimum Operating Supply Voltage | 1.65 V | |
Propagation Delay Test Condition | 50pF | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Number of Elements per Chip 2 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 12 ns @ 50 pF | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 32mA | ||
Mounting Type Surface Mount | ||
Package Type SC-88 | ||
Pin Count 6 | ||
Logic Family LVC | ||
Dimensions 2.2 x 1.35 x 1mm | ||
Height 1mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Operating Temperature +125 °C | ||
Width 1.35mm | ||
Length 2.2mm | ||
Minimum Operating Supply Voltage 1.65 V | ||
Propagation Delay Test Condition 50pF | ||
Minimum Operating Temperature -40 °C | ||
