Units	Per Unit	Per Reel**
250 - 250	MYR3.452	MYR863.00
500 - 750	MYR3.376	MYR844.00
1000 +	MYR3.313	MYR828.25

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	Inverter
	Input Type	Schmitt Trigger
	Number of Elements per Chip	2
	Schmitt Trigger Input	Yes
	Maximum Propagation Delay Time @ Maximum CL	4.3 ns @ 5 V, 5.4 ns @ 3.3 V
	Maximum High Level Output Current	-32mA
	Maximum Low Level Output Current	32mA
	Mounting Type	Surface Mount
	Package Type	SC-70
	Pin Count	6
	Logic Family	LVC
	Dimensions	2 x 1.25 x 0.9mm
	Height	0.9mm
	Maximum Operating Supply Voltage	5.5 V
	Minimum Operating Temperature	-40 °C
	Width	1.25mm
	Maximum Operating Temperature	+85 °C
	Length	2mm
	Propagation Delay Test Condition	50pF
	Minimum Operating Supply Voltage	1.65 V

	Select all
	Brand Texas Instruments
	Logic Function Inverter
	Input Type Schmitt Trigger
	Number of Elements per Chip 2
	Schmitt Trigger Input Yes
	Maximum Propagation Delay Time @ Maximum CL 4.3 ns @ 5 V, 5.4 ns @ 3.3 V
	Maximum High Level Output Current -32mA
	Maximum Low Level Output Current 32mA
	Mounting Type Surface Mount
	Package Type SC-70
	Pin Count 6
	Logic Family LVC
	Dimensions 2 x 1.25 x 0.9mm
	Height 0.9mm
	Maximum Operating Supply Voltage 5.5 V
	Minimum Operating Temperature -40 °C
	Width 1.25mm
	Maximum Operating Temperature +85 °C
	Length 2mm
	Propagation Delay Test Condition 50pF
	Minimum Operating Supply Voltage 1.65 V

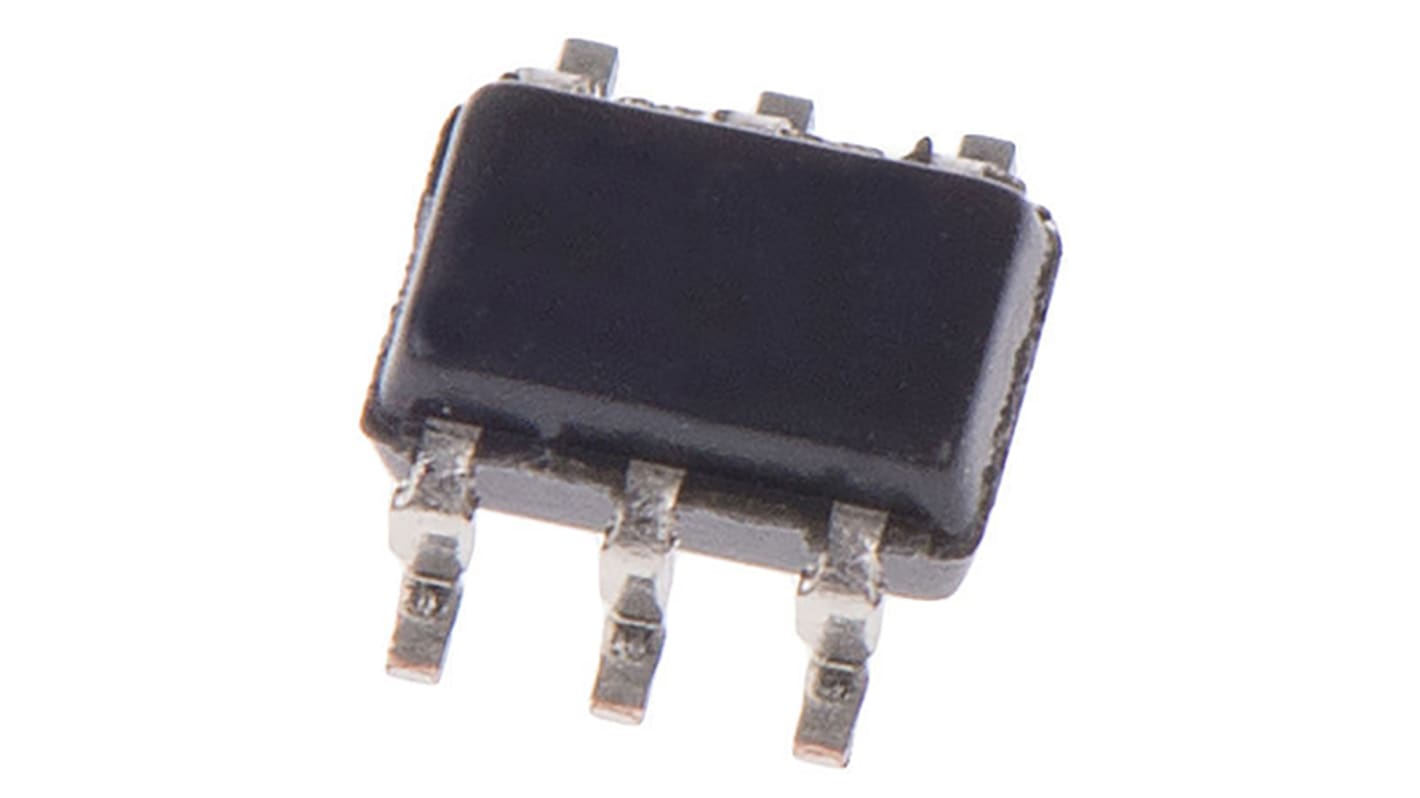

Texas Instruments SN74LVC2G14DCKT Dual Schmitt Trigger CMOS Inverter, 6-Pin SC-70

FREE delivery for orders over MYR500.00

74LVC2G Family, Texas Instruments

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
