Nexperia 6 Schmitt Trigger Input Hex Schmitt Trigger Inverter, 14-Pin TSSOP
- RS Stock No.:
- 219-4278
- Mfr. Part No.:
- 74HCT14PW,118
- Manufacturer:
- Nexperia

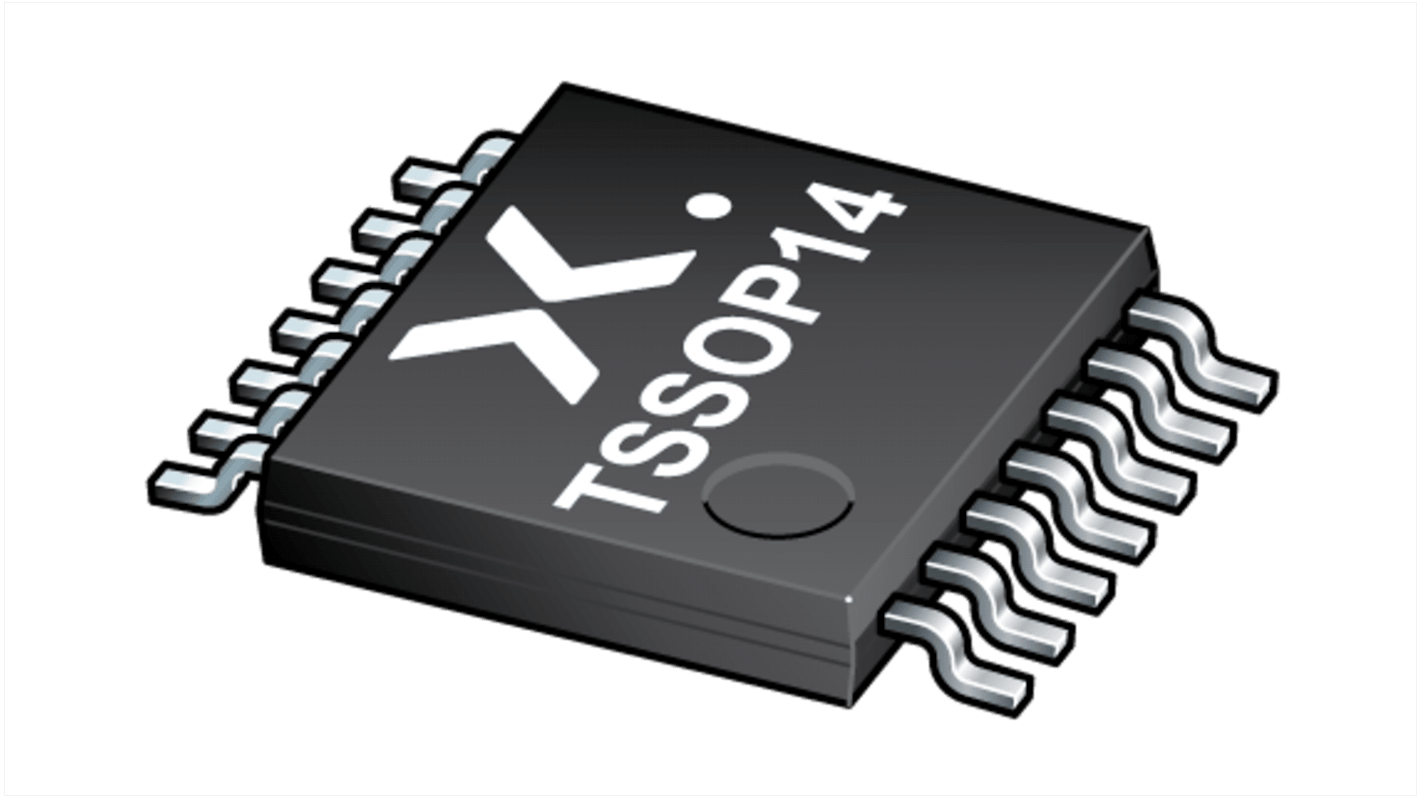

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
MYR967.50
FREE delivery for orders over RM 150.00
In Stock
- 2,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | MYR0.387 | MYR967.50 |
| 5000 - 7500 | MYR0.378 | MYR945.00 |
| 10000 + | MYR0.372 | MYR930.00 |
*price indicative
- RS Stock No.:
- 219-4278
- Mfr. Part No.:
- 74HCT14PW,118
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Hex Schmitt Trigger Inverter | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | Inverting | |
| Number of Elements per Chip | 6 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ CL | 190ns | |
| Maximum High Level Output Current | 4mA | |
| Maximum Low Level Output Current | 20μA | |
| Minimum Supply Voltage | 4.5V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 7V | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40°C | |
| Logic Family | 74HCT | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 6.4mm | |
| Series | 74HCT14 | |
| Height | 1.8mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Hex Schmitt Trigger Inverter | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Output Type Inverting | ||
Number of Elements per Chip 6 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ CL 190ns | ||
Maximum High Level Output Current 4mA | ||
Maximum Low Level Output Current 20μA | ||
Minimum Supply Voltage 4.5V | ||
Mount Type Surface | ||
Maximum Supply Voltage 7V | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Minimum Operating Temperature -40°C | ||
Logic Family 74HCT | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 6.4mm | ||
Series 74HCT14 | ||
Height 1.8mm | ||
Automotive Standard No | ||
The Nexperia 74HCT14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels.
Complies with JEDEC standard no. 7A
ESD protection
