Nexperia 6 Schmitt Trigger Input Hex Schmitt Trigger Inverter, 14-Pin SO-14
- RS Stock No.:
- 219-4347
- Mfr. Part No.:
- HEF40106BT,653
- Manufacturer:
- Nexperia

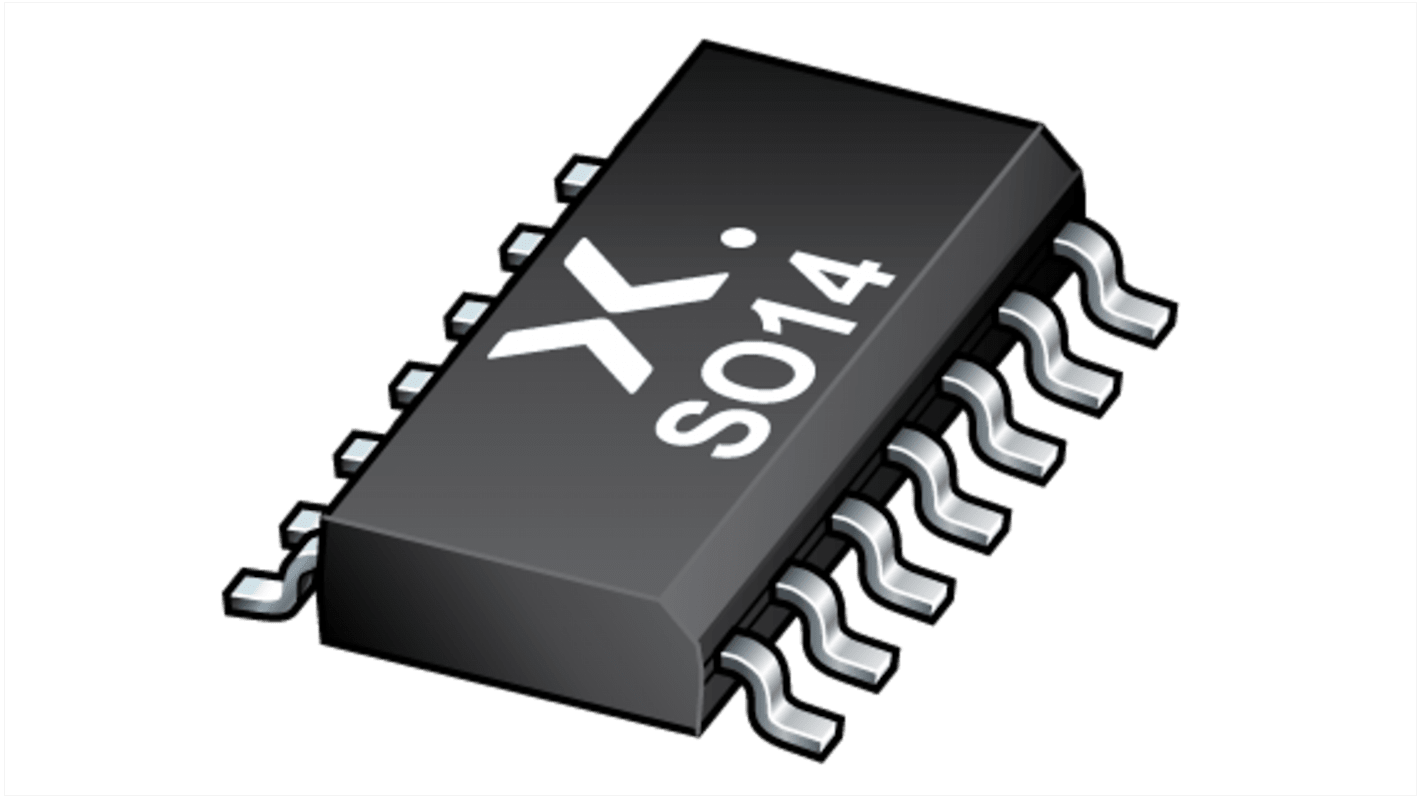

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
MYR1,987.50
FREE delivery for orders over RM 500.00
In Stock
- 72,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | MYR0.795 | MYR1,987.50 |
| 5000 - 7500 | MYR0.777 | MYR1,942.50 |
| 10000 + | MYR0.763 | MYR1,907.50 |
*price indicative
- RS Stock No.:
- 219-4347
- Mfr. Part No.:
- HEF40106BT,653
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter | |
| Product Type | Hex Schmitt Trigger Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | Inverting | |
| Number of Elements per Chip | 6 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ CL | 180ns | |
| Maximum High Level Output Current | -0.36mA | |
| Minimum Supply Voltage | 3V | |
| Package Type | SO-14 | |
| Maximum Supply Voltage | 15V | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40°C | |
| Logic Family | HE4000B | |
| Maximum Operating Temperature | 125°C | |
| Length | 8.75mm | |
| Height | 1.45mm | |
| Standards/Approvals | No | |
| Series | HEF40106B | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function Inverter | ||
Product Type Hex Schmitt Trigger Inverter | ||
Input Type Schmitt Trigger | ||
Output Type Inverting | ||
Number of Elements per Chip 6 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ CL 180ns | ||
Maximum High Level Output Current -0.36mA | ||
Minimum Supply Voltage 3V | ||
Package Type SO-14 | ||
Maximum Supply Voltage 15V | ||
Pin Count 14 | ||
Minimum Operating Temperature -40°C | ||
Logic Family HE4000B | ||
Maximum Operating Temperature 125°C | ||
Length 8.75mm | ||
Height 1.45mm | ||
Standards/Approvals No | ||
Series HEF40106B | ||
Automotive Standard No | ||
The Nexperia HEF40106B provides six inverting buffers. Each input has a Schmitt trigger circuit. The inverting buffer switches at different points for positive-going and negative-going signals.
Schmitt trigger input discrimination
Fully static operation
