DiodesZetex Inverter 1, 6-Pin SOT-26
- RS Stock No.:
- 165-8517
- Mfr. Part No.:
- 74LVC2G04W6-7
- Manufacturer:
- DiodesZetex

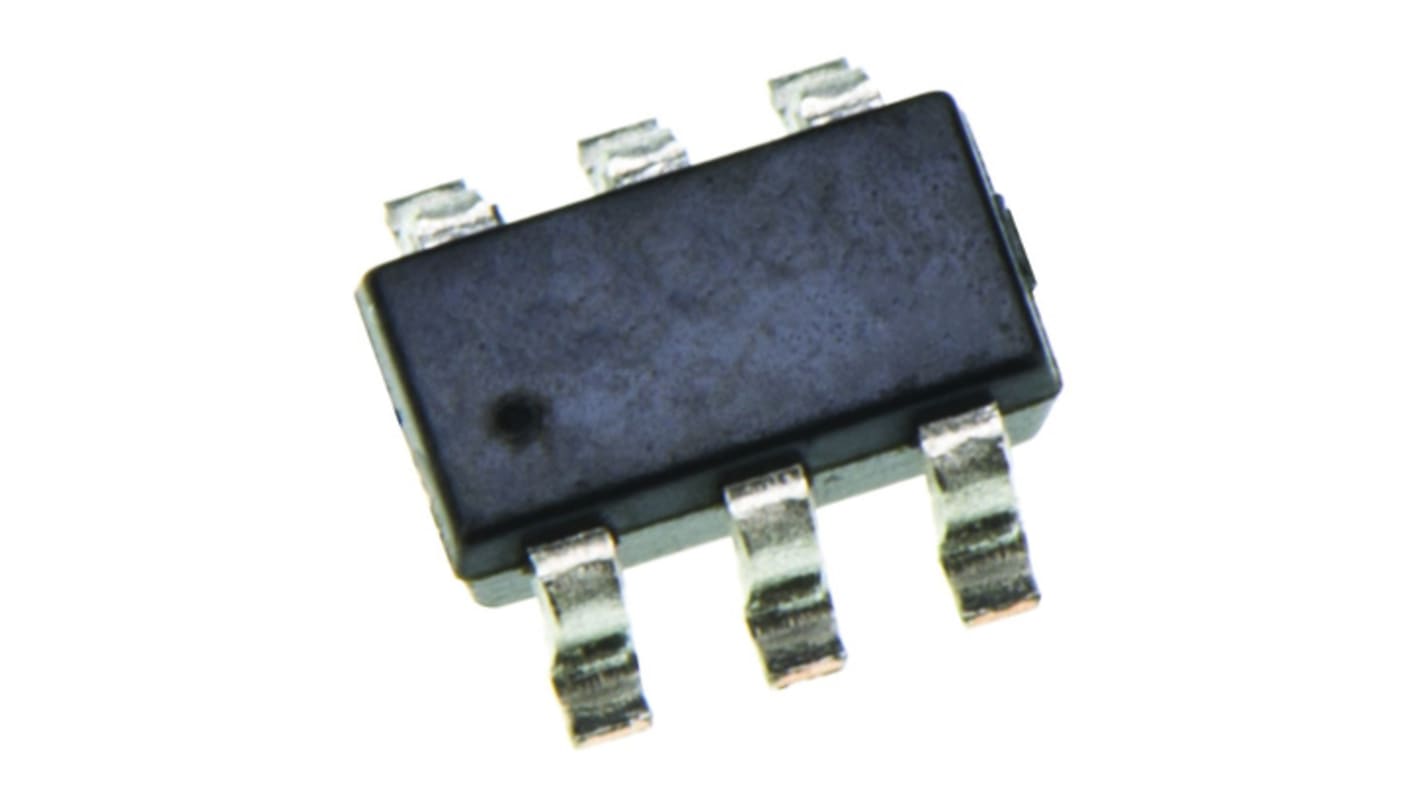

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 3000 units)*
MYR1,560.00
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | MYR0.52 | MYR1,560.00 |
| 6000 - 9000 | MYR0.508 | MYR1,524.00 |
| 12000 + | MYR0.499 | MYR1,497.00 |
*price indicative
- RS Stock No.:
- 165-8517
- Mfr. Part No.:
- 74LVC2G04W6-7
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Inverter | |
| Logic Function | Inverter | |
| Output Type | Push Pull | |
| Number of Elements per Chip | 1 | |
| Schmitt Trigger Input | No | |
| Maximum Propagation Delay Time @ CL | 3.8ns | |
| Maximum High Level Output Current | -4mA | |
| Maximum Low Level Output Current | 32mA | |
| Minimum Supply Voltage | 1.65V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | SOT-26 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 150°C | |
| Logic Family | LVC | |
| Length | 3.1mm | |
| Height | 1.3mm | |
| Standards/Approvals | No | |
| Width | 1.7mm | |
| Series | 74LVC2G04 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Inverter | ||
Logic Function Inverter | ||
Output Type Push Pull | ||
Number of Elements per Chip 1 | ||
Schmitt Trigger Input No | ||
Maximum Propagation Delay Time @ CL 3.8ns | ||
Maximum High Level Output Current -4mA | ||
Maximum Low Level Output Current 32mA | ||
Minimum Supply Voltage 1.65V | ||
Mount Type Surface | ||
Maximum Supply Voltage 5.5V | ||
Package Type SOT-26 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 6 | ||
Maximum Operating Temperature 150°C | ||
Logic Family LVC | ||
Length 3.1mm | ||
Height 1.3mm | ||
Standards/Approvals No | ||
Width 1.7mm | ||
Series 74LVC2G04 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
74LVC2G Family, Diodes Inc
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
