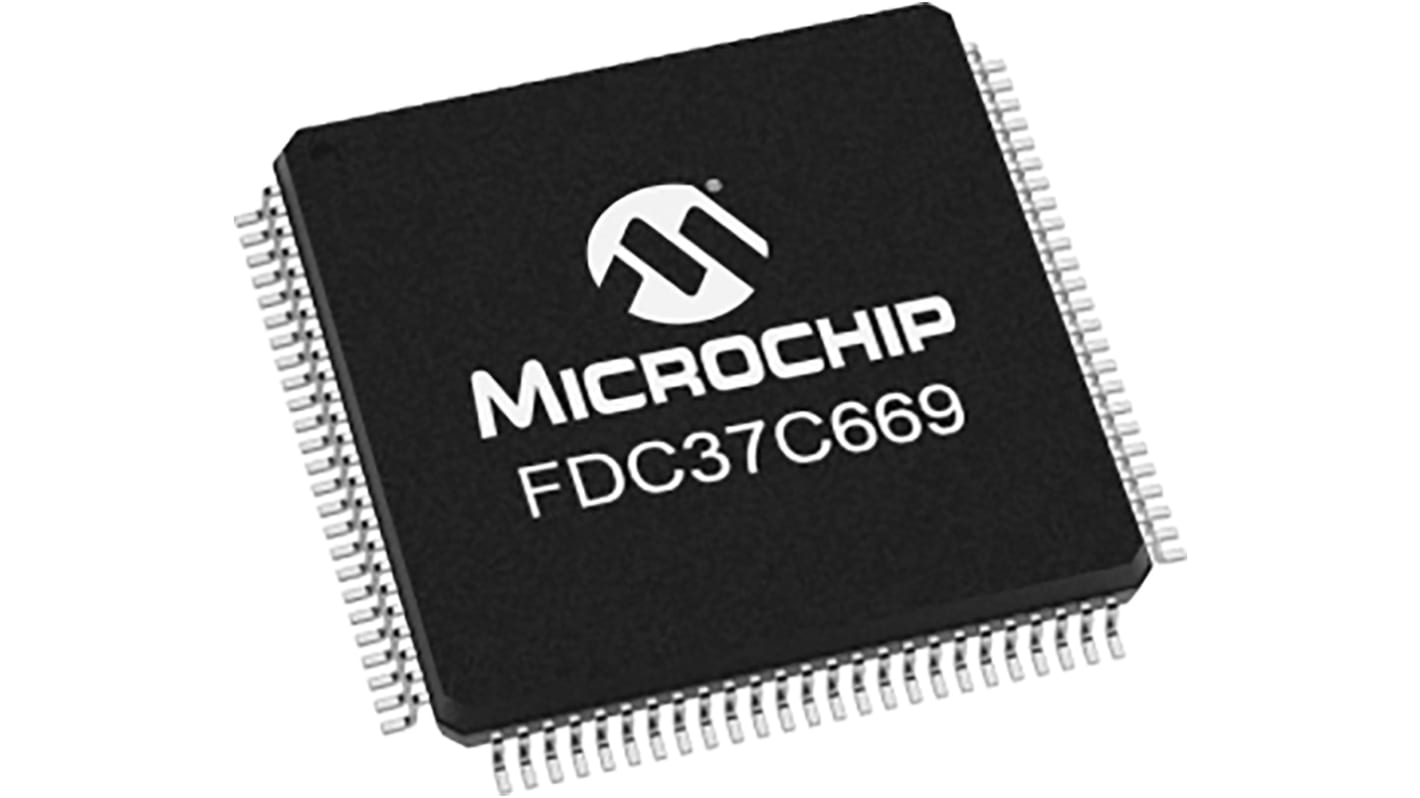

Microchip FDC37C669-MS, 13, IO Controller, 100-Pin QFP
- RS Stock No.:
- 177-3520
- Mfr. Part No.:
- FDC37C669-MS
- Manufacturer:
- Microchip
Temporarily out of stock - back order for despatch 31/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Tray of 66)
MYR54.052
| Units | Per Unit | Per Tray* |
| 66 - 66 | MYR54.052 | MYR3,567.432 |
| 132 - 198 | MYR52.863 | MYR3,488.958 |
| 264 + | MYR51.89 | MYR3,424.74 |
| *price indicative | ||
- RS Stock No.:
- 177-3520
- Mfr. Part No.:
- FDC37C669-MS
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
The SMSC FDC37C669 PC 95 Compatible Super I/O Floppy Disk Controller: Infrared Support utilizes SMSC's proven SuperCell technology for increased product reliability and functionality. The FDC37C669 is optimized for motherboard applications.
ISA Interface
100 QFP Packaging
5V Operating Voltage
48 GPIO Pins
1 Multi-Mode Parallel Port with EPP and ECP Support
Game Port Chip Select
IDE Interface
CMOS 765B Floppy Disk Controller
16 byte data FIFO
On-chip 12 mA bus drivers
2 Floppy Direct Drive Support
2 N216C550-compatible UARTs
100 QFP Packaging
5V Operating Voltage
48 GPIO Pins
1 Multi-Mode Parallel Port with EPP and ECP Support
Game Port Chip Select
IDE Interface
CMOS 765B Floppy Disk Controller
16 byte data FIFO
On-chip 12 mA bus drivers
2 Floppy Direct Drive Support
2 N216C550-compatible UARTs
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| LAN Controller | No |
| IDE Controller | Yes |
| PCI Support | No |
| Serial ATA | No |
| Number of I/O Channels | 13 |
| DMA Controller | Yes |
| Mounting Type | Surface Mount |
| Package Type | QFP |
| Pin Count | 100 |
| Dimensions | 20.1 x 14.1 x 2.87mm |
| Maximum Operating Supply Voltage | 5 V |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
