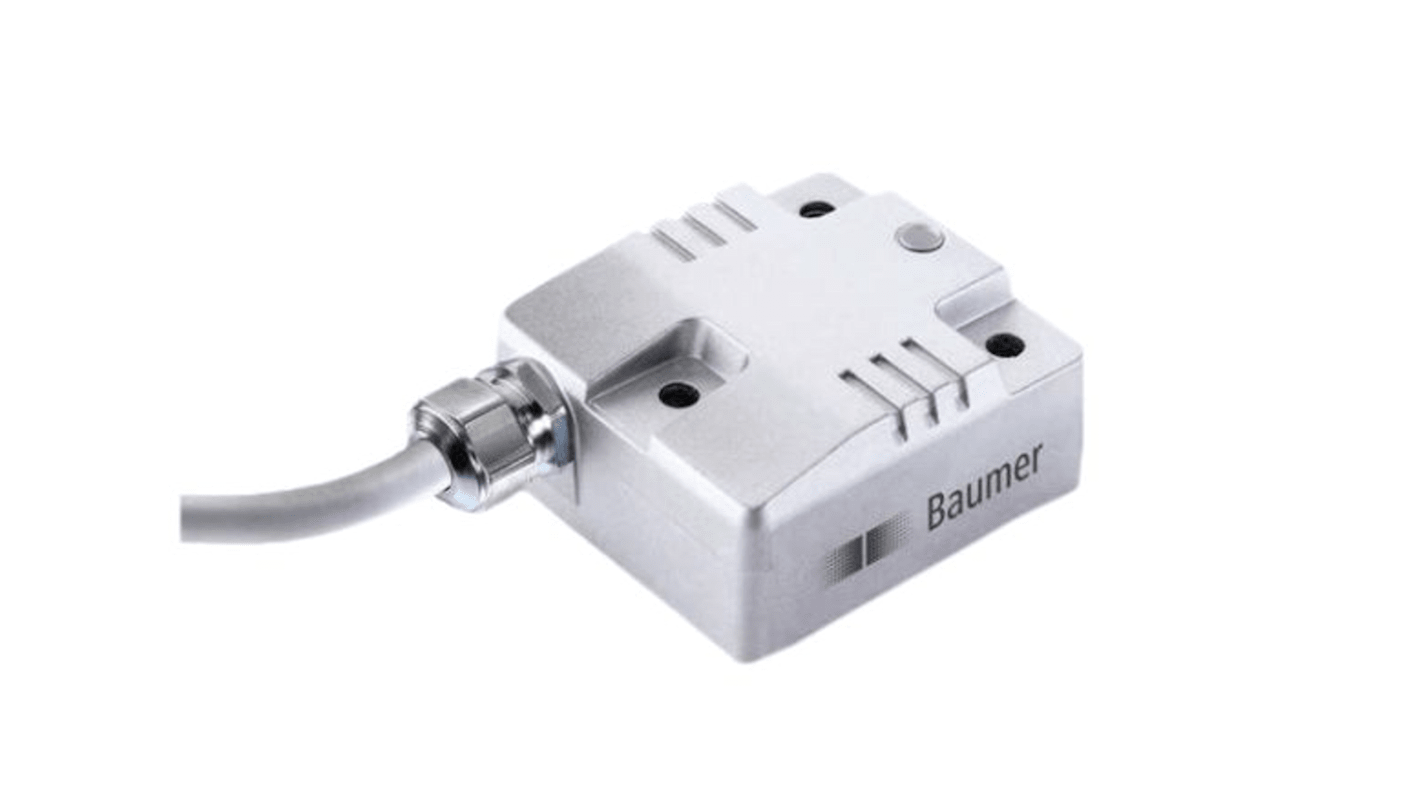

Baumer GIM500R-M290.FC4.A 2 Axis Inclination Sensor, IP69K
- RS Stock No.:
- 210-0672
- Mfr. Part No.:
- GIM500R-M290.FC4.A
- Manufacturer:
- Baumer
Subtotal (1 unit)*
MYR2,159.32
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 11 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR2,159.32 |
*price indicative
- RS Stock No.:
- 210-0672
- Mfr. Part No.:
- GIM500R-M290.FC4.A
- Manufacturer:
- Baumer
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Number of Axis | 2 | |
| Product Type | Inclination Sensor | |
| Measurement Range | 10 to 90 ° | |
| Accuracy | 0.1 ° | |
| Connection Type | M12 Connector | |
| Supply Voltage | 30V | |
| Dimensions | 48 x 24 x 52 mm | |
| Housing Material | Aluminium, Coated | |
| IP Rating | IP69K | |
| Weight | 95g | |
| Select all | ||
|---|---|---|
Brand Baumer | ||
Number of Axis 2 | ||
Product Type Inclination Sensor | ||
Measurement Range 10 to 90 ° | ||
Accuracy 0.1 ° | ||
Connection Type M12 Connector | ||
Supply Voltage 30V | ||
Dimensions 48 x 24 x 52 mm | ||
Housing Material Aluminium, Coated | ||
IP Rating IP69K | ||
Weight 95g | ||
- COO (Country of Origin):
- DE
The Baumer GIM500R 2-dimensional inclination sensor has analogue output and used MEMS capacitive measuring principle for sensor. It used metal housing which has measuring range ±90° and protected against polarity reversal. It used connector M12 with cable which is 1 m long.
Operating temperature -40 to+85 °C
Protection IP 69K
Accuracy typically ±0.1°
