JST V5.5 Yellow Insulated Quick Disconnect Crimp Terminal, Crimp, 5 mm Tab Size 12 AWG to 10 AWG

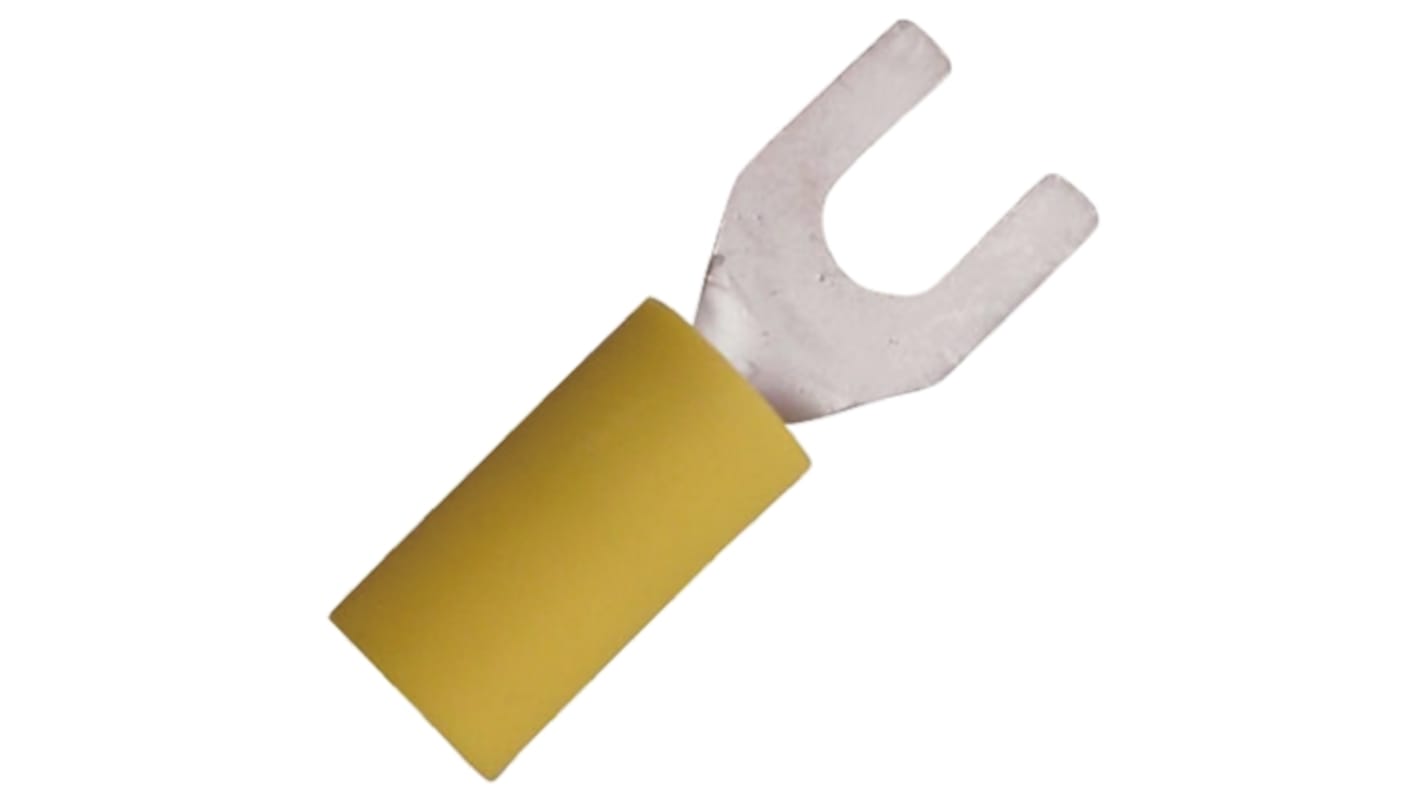

This image is representative of the product range

Bulk discount available

Subtotal (1 bag of 100 units)*

MYR165.49

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	JST
	Termination Type	Crimp
	Product Type	Quick Disconnect Crimp Terminal
	Tab Size	5 mm
	Tab Width	9.5mm
	Insulation	Insulated
	Minimum Wire Size AWG	12 AWG
	Maximum Wire Size AWG	10 AWG
	Colour	Yellow
	Contact Plating	Tin
	Insulation Material	Vinyl
	Standards/Approvals	RoHS
	Overall Length	26.2mm
	Series	V5.5

	Select all
	Brand JST
	Termination Type Crimp
	Product Type Quick Disconnect Crimp Terminal
	Tab Size 5 mm
	Tab Width 9.5mm
	Insulation Insulated
	Minimum Wire Size AWG 12 AWG
	Maximum Wire Size AWG 10 AWG
	Colour Yellow
	Contact Plating Tin
	Insulation Material Vinyl
	Standards/Approvals RoHS
	Overall Length 26.2mm
	Series V5.5

Non Compliant

A range of insulated spade tongue crimp terminals from JST made from tin-plated oxygen free copper.

JST part numbers Vxxx are straight-entry terminals with brazed seams

JST part numbers FVWSxxx are flared-entry terminals with butted seams

• Vinyl insulation

• Straight or Flared entry types available

• UL Listed E42024

• CSA Certified LR20812

• RoHS Compliant
