TE Connectivity LC Multimode Duplex Fibre Optic Connector 1.6 → 2mm Fibre Size

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

TE Connectivity Tight Jacketed LC Connector Kits

LC connector kits with non pull-proof connectors for use with tight jacketed fibre cable. These tight jacketed LC connector kits are designed to allow the jacket and buffer to move together in order to prevent micro-bends and fibre breakage. The ferrules of these LC connector kits are made from zirconia and the housings from UL 94 V-0 rated thermoplastic, with a length of 52mm (ferrule tip to end of boot). Typical applications for these LC connector kits include in flight networks, shipboard applications and the aero market.

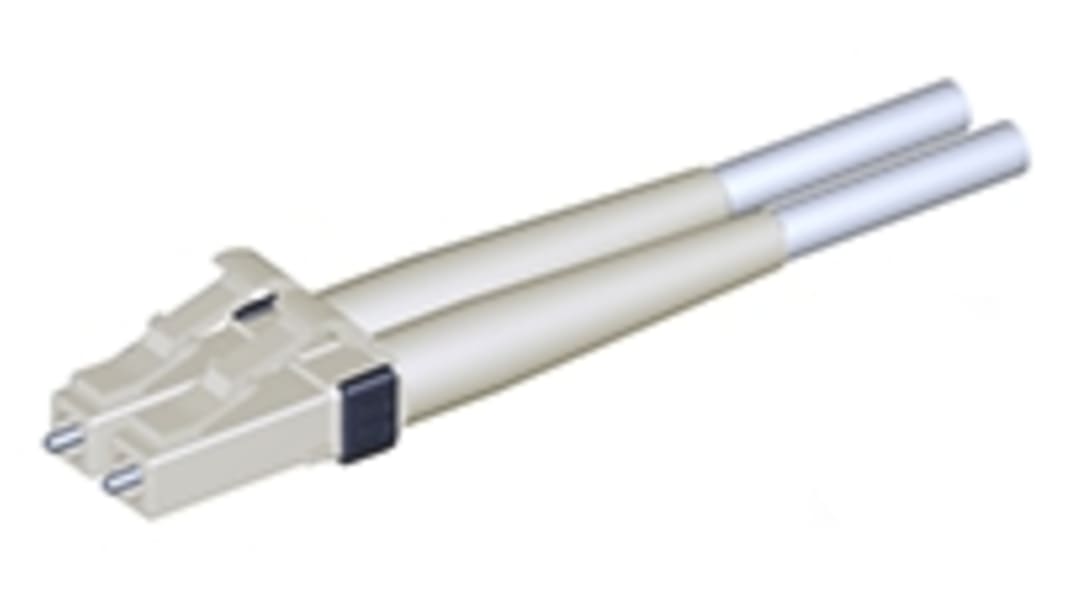

Stock number 820-8108 is a Duplex multimode LC connector kit with a beige housing and boot for sue with 1.6-2.0mm jacketed cable.

Standards

LC Commercial Item Description (CID) interim approval by Naval Surface Warfare Center, Dahlgren Division
Tested using MIL-PRF-85045/16 2.0 mm cable

Specifications
Attribute Value
Series 6828
Connector Type LC
Single/Multimode Multimode
Simplex/Duplex Duplex
Fibre Size 1.6 → 2mm
Colour Beige
Temporarily out of stock - back order for despatch when stock is available
Price Each
MYR 113.19
units
Per unit
1 - 24
MYR113.19
25 - 74
MYR108.55
75 - 199
MYR105.66
200 - 399
MYR102.91
400 +
MYR100.31
