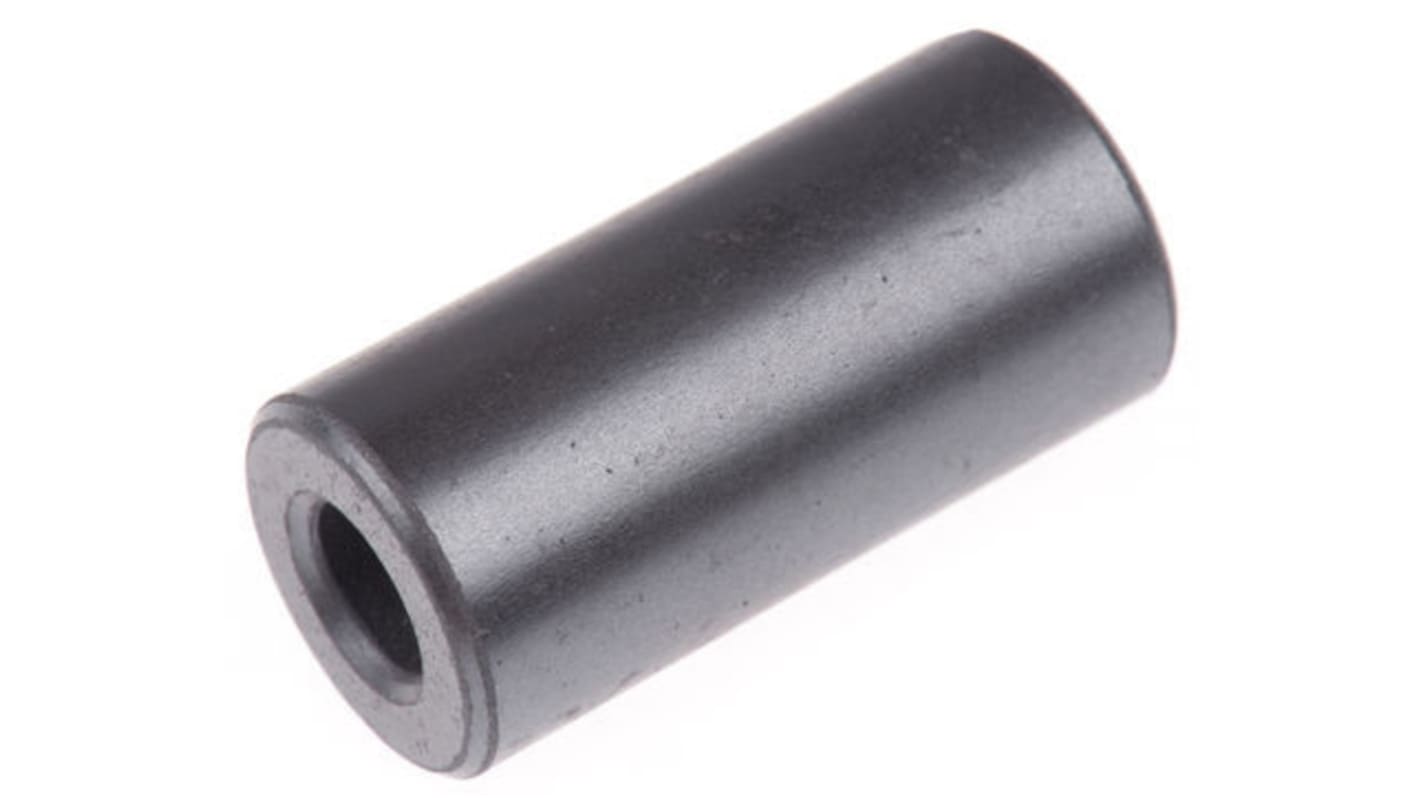

Wurth Elektronik Ferrite Ring EMI Suppression Axial Ferrite Bead

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Ferrite Sleeves

Applications

Wurth Elektronik axial ferrite rings fit over the cable, absorbing energy emitted by cables without affecting the transmitted data. These ferrite rings can be fixed on the cable by using heat shrink sleeving. Attenuation is better than ferrite rings owing to the increased ferrite level, and is increased by threading the cable through several times

Wires
Coaxial cable
Twisted-pair Cabling
Multicore cable

Specifications
Attribute Value
Type EMI Suppression Axial Ferrite Bead
Dimensions 14.1 x 6.3 x 28.6mm
Application Coaxial Cable, Multiconductor Wire, Wire-Wrapping Cable, Wires
Material 4 W 620
Height 28.6mm
Inner Diameter 6.3mm
Outer Diameter 14.1mm
1710 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 5.07
units
Per unit
Per Pack*
10 - 290
MYR5.07
MYR50.70
300 - 990
MYR4.834
MYR48.34
1000 - 4990
MYR4.713
MYR47.13
5000 - 9990
MYR4.425
MYR44.25
10000 +
MYR4.287
MYR42.87
*price indicative
