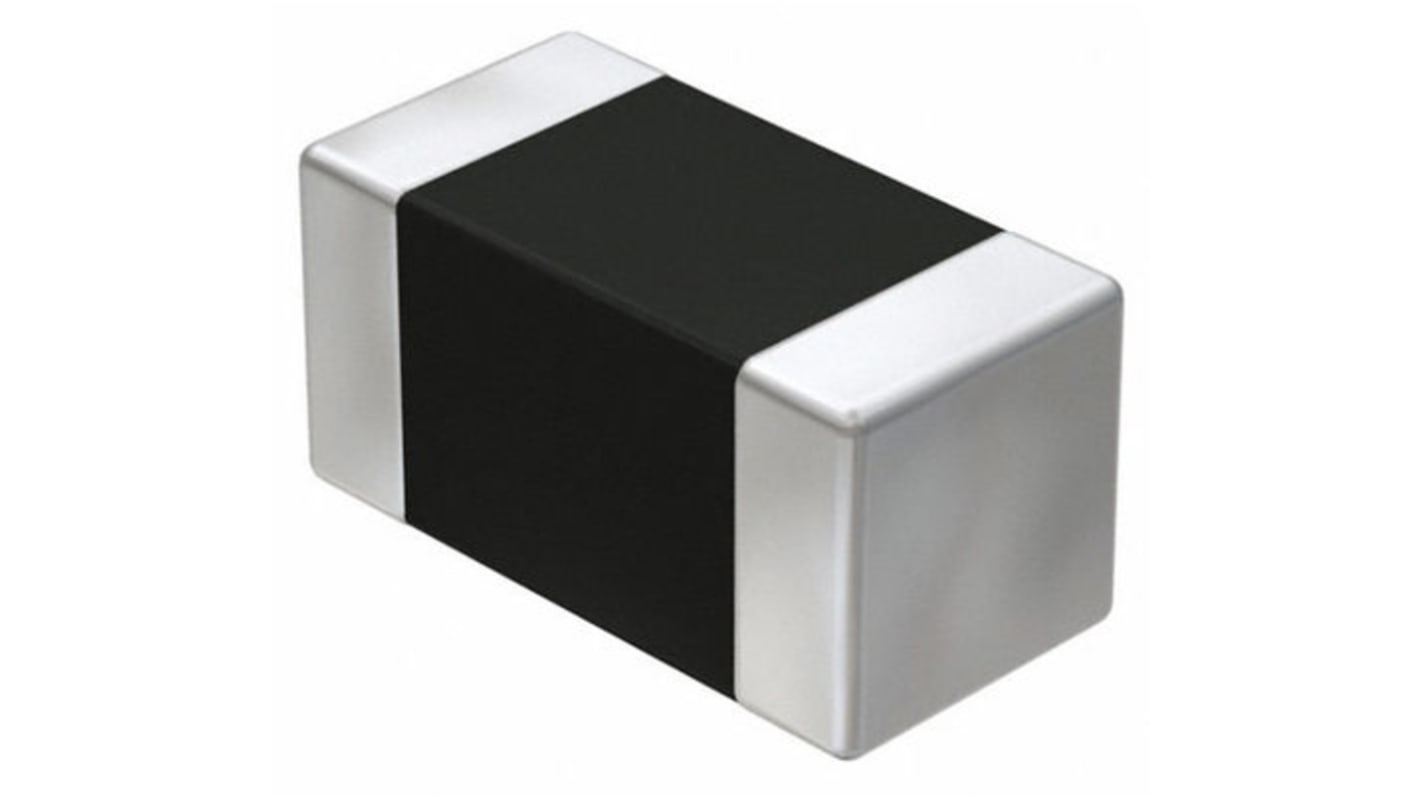

Wurth Elektronik Ferrite Bead, 4.5 x 1.6 x 1.6mm (1806 (4516M)), 60Ω impedance at 100 MHz, 120Ω impedance at 1 GHz
- RS Stock No.:
- 124-1873
- Mfr. Part No.:
- 742792410
- Manufacturer:
- Wurth Elektronik
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 50)
MYR1.159
| Units | Per Unit | Per Pack* |
| 50 + | MYR1.159 | MYR57.95 |
| *price indicative | ||
- RS Stock No.:
- 124-1873
- Mfr. Part No.:
- 742792410
- Manufacturer:
- Wurth Elektronik
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Specifications
Attribute | Value |
|---|---|
| Package Type | 1806 (4516M) |
| Impedance at 100 MHz | 60Ω |
| Impedance at 1 GHz | 120Ω |
| Current Rating | 6A |
| Type | Ferrite Bead |
| Dimensions | 4.5 x 1.6 x 1.6mm |
| Length | 4.5mm |
| Depth | 1.6mm |
| Maximum DC Resistance | 0.01Ω |
| Height | 1.6mm |
| Application | Anti EMI, Control Signals, DC/DC Converter, Fast Bus Signals, HDD, High Current, High Frequency, High Speed, Line Filter, LVDS, Power Supply, RS232, RS422, USB 2.0 |
| Series | WE-CBF |
| Material | Ferrite |
