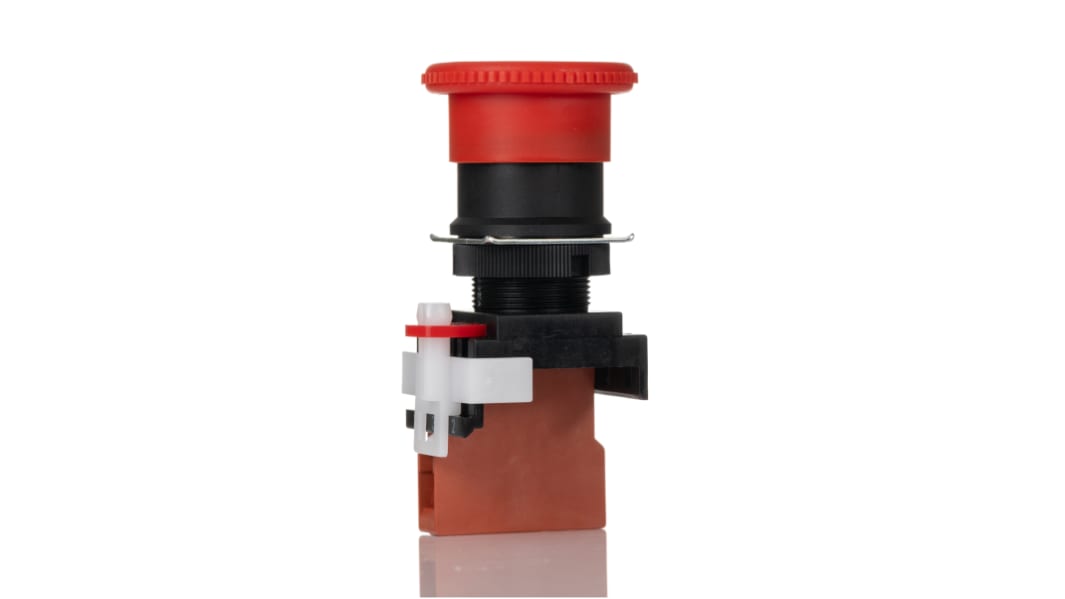

Omron A22E Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP65

RS Stock No.:: 757-9089
Distrelec Article No.:: 301-36-686
Mfr. Part No.:: A22E-M-01
Manufacturer:: Omron

Omron A22E Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP65

1 / 5

Subtotal (1 unit)**

MYR187.10

20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit
1 +	MYR187.10

**price indicative

RS Stock No.:: 757-9089
Distrelec Article No.:: 301-36-686
Mfr. Part No.:: A22E-M-01
Manufacturer:: Omron

A22E Series Emergency Stop Switch

The A22E series emergency stop switch is supplied as a complete or sub-assembled unit and can be installed in a 22mm or 25mm diameter hole. The switch unit can easily be mounted without the use of tools.

Direct opening mechanism to open the circuit when the contact welds
Safety lock mechanism prevents operating errors
Easy mounting and removal of Switch Blocks using a lever
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts)
Finger protection mechanism on Switch Unit provided as a standard feature
Install using either round, or forked crimp terminals
Non-lighted models IP65 (oil-resistant), lighted models IP65
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated

Completely Assembled Models

Non-lighted, 818-2009, 861-4616, 757-9089, 549-479, 841-1809 & 861-4610 (with Emergency Off legend)
Lighted, without voltage reduction unit, 757-9092 & 757-9095

Switch with Integrated Control Box

Non-lighted, 746-7154 & 746-7163

Operation Units only

Non-lighted 746-7166 & 746-7157
Lighted 746-7150

Switch Units only

Without voltage reduction unit, 861-4629 & 861-4622
With voltage reduction unit, 861-4626

Accessories

LED lamp, Red, 24 Vac/dc, 861-4635
Emergency Stop legend plate, 60mm dia. 757-9109
Emergency Off legend plate, 60mm dia. 746-7160
Control Box, yellow, 1 hole, 746-7179
E-Stop Shroud with Emergency Off legend, yellow, 746-7172
E-Stop Shroud, yellow, 746-7176 (no spacers) & 746-7185 (2 spacers)

Standards

UL508 C22.2 No.14, EN60947-5-1 & EN60947-5-5 (certified direct opening mechanism), GB14048.5, EN60947-5-1.

Approvals

UL, cUL, TUV, CCC.

OMRON Emergency Stop Push Button, Screw Connection Type, Non-Illuminated - A22E Series - A22E-M-01

Do you want to boost safety around hazardous industrial equipment? Trust this OMRON emergency stop push button to do the job. Pressing down on its 40mm-wide actuator instantly cuts power to an attached electrical component, such as a press or milling machine. This cuts the risk of user injury or machine damage. Simply twist the button in the direction of the clearly marked arrows to release it and get your system back up and running.

Features & Benefits

• Mountable with open-type or closed-type crimp terminals for versatility
• Bright red actuator is easy to spot, saving precious time in emergencies
• Standard 22mm cut-out diameter for compatibility with standard panels
• Can be customised with a compatible legend plate for clear identification
• Plastic construction for resistance to abrasion, impacts and oil

Applications

• Mining industry
• Food and beverage production
• Material handling
• Packaging plants
• Industrial storage facilities

Is this push button waterproof?

Yes. This unit has an IP65 rating, which shows that it's fully protected against low-pressure water jets from any direction, as well as being dust-resistant.

Emergency Stop Pushbutton

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Mounting Type	Panel Mount
	Cutout Diameter	22mm
	Contact Configuration	1NC
	Push Button Actuation	Twist Release
	Illuminated	No
	Series	A22E
	IP Rating	IP65
	Colour	Red
	Auxiliary Contacts	NO
	Push Button Material	Plastic
	Switch Operation	Turn To Reset
	Housing Colour	Red
	Pole and Throw Configuration	SPST
	Push Button Diameter	40mm

	Select all
	Brand Omron
	Mounting Type Panel Mount
	Cutout Diameter 22mm
	Contact Configuration 1NC
	Push Button Actuation Twist Release
	Illuminated No
	Series A22E
	IP Rating IP65
	Colour Red
	Auxiliary Contacts NO
	Push Button Material Plastic
	Switch Operation Turn To Reset
	Housing Colour Red
	Pole and Throw Configuration SPST
	Push Button Diameter 40mm
