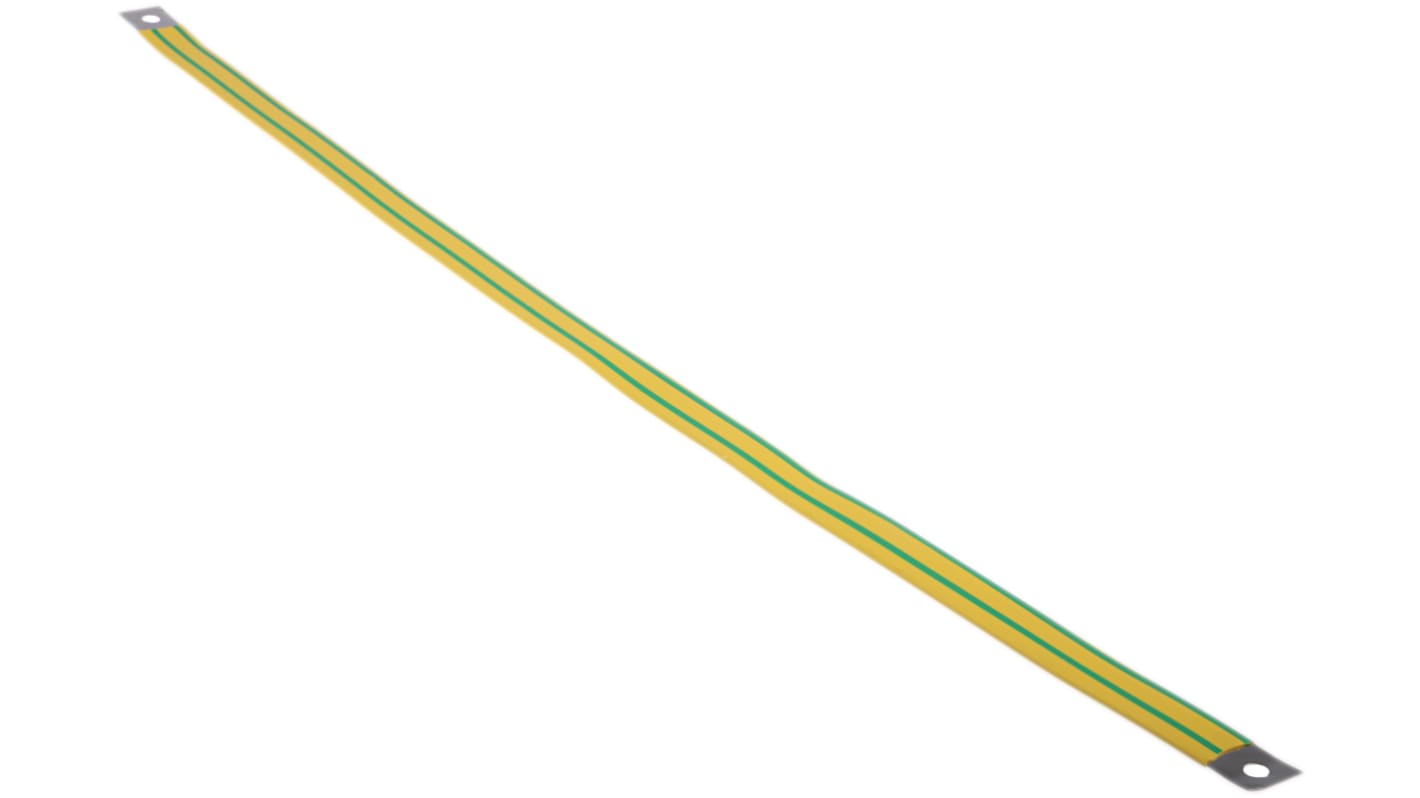

RS PRO Earthing Strap Copper 457 x 13mm Diameter

This range of insulated earth straps (also known as shunt wires, grounding straps or braided harnesses) from RS PRO offer a variety of straps made of copper with green and yellow polyolefin insulated sleeves, providing RFI generated currents with a low impedance path. These high quality earth straps with insulation are ideal for use with enclosure panels in a wide range of electrical applications and are available in a range of sizes. These durable and reliable straps feature a wide temperature range of -55 to +135°C, making them a highly versatile earth strap for use in a range of environments.

Tinned copper, flat earth straps fully insulated with a green/yellow sleeve
Strap provides a low impedance path for RFI generated currents, overcoming the problems associated with the ’skin effect’
Sleeve meets requirements of UL224 and offers electrical isolation up to 10kV
Sleeve temperature range -55°C to +135°C
Four types from 75mm long to 457mm long, each 13mm wide with 4.75mm dia. holes punched at each end

RS PRO insulated earth straps are ideal for use with enclosure panels in a variety of electrical applications, allowing you to connect an electrical system to the conductive surface of the earth for safety.

75 x 13 mm - 264-9219
150 x 13 mm - 264-9225
300 x 13 mm - 264-9247
457 x 13 mm - 264-9253
