onsemi Linear, 1.4 W Output, 30 mA PWM
- RS Stock No.:
- 186-9295
- Mfr. Part No.:
- NSI45030AZT1G
- Manufacturer:
- onsemi

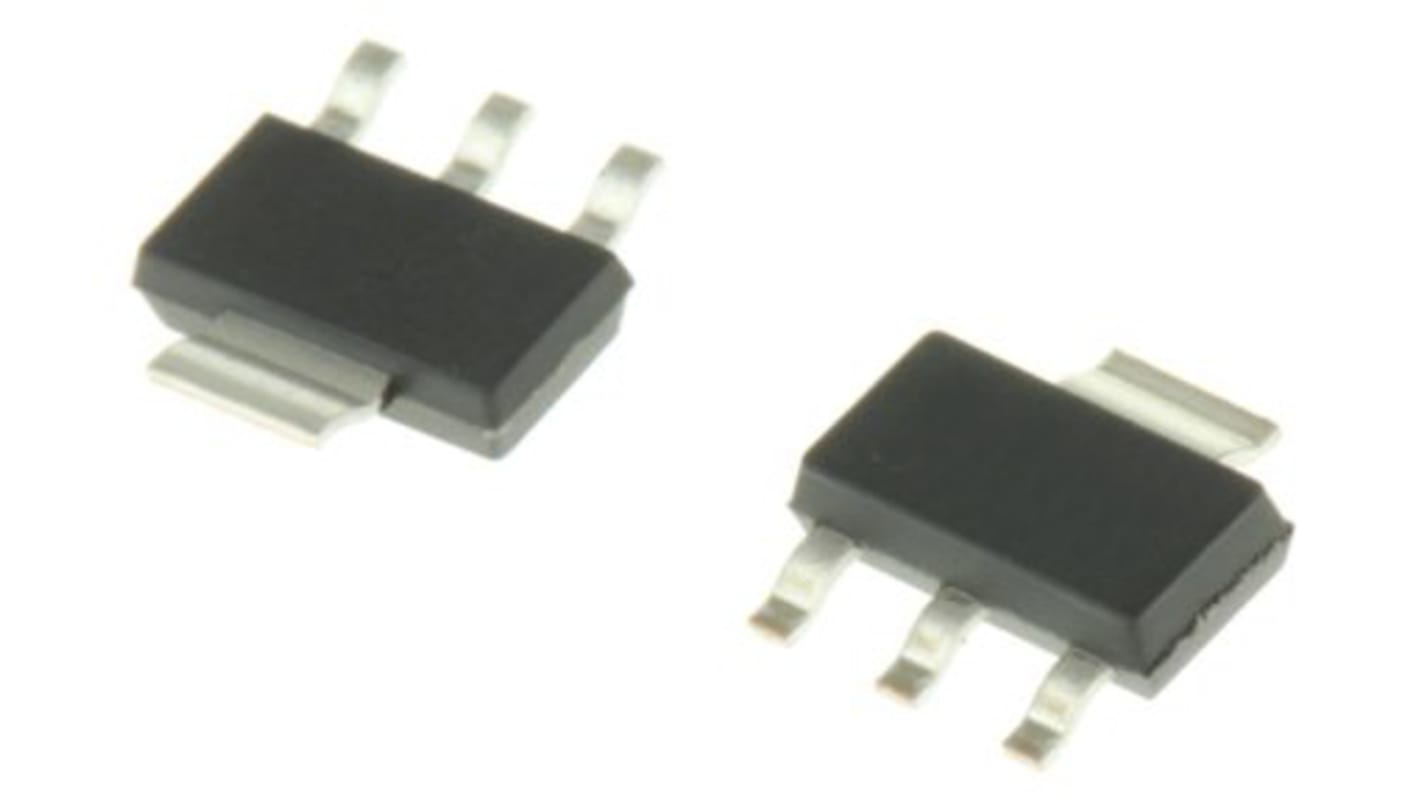

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 186-9295
- Mfr. Part No.:
- NSI45030AZT1G
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Display Driver | |
| Maximum Output Power | 1.4W | |
| Input Voltage | 45 V | |
| Mount Type | Surface | |
| Sub Type | Linear | |
| Dimming Operation | PWM | |
| Input Voltage Type | DC | |
| Terminal Type | Surface Mount | |
| Operating Modes | Constant Current | |
| Driver Current | 30 mA | |
| Number of Outputs | 1 | |
| Standards/Approvals | AEC-Q101, RoHS, UL94-V0 | |
| Series | NSI450 | |
| Power Dissipation | 1.4W | |
| Primary Type | Constant Current Regulator | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Display Driver | ||
Maximum Output Power 1.4W | ||
Input Voltage 45 V | ||
Mount Type Surface | ||
Sub Type Linear | ||
Dimming Operation PWM | ||
Input Voltage Type DC | ||
Terminal Type Surface Mount | ||
Operating Modes Constant Current | ||
Driver Current 30 mA | ||
Number of Outputs 1 | ||
Standards/Approvals AEC-Q101, RoHS, UL94-V0 | ||
Series NSI450 | ||
Power Dissipation 1.4W | ||
Primary Type Constant Current Regulator | ||
Robust Power Package: 1.4 W, Wide operating voltage range, Immediate turn on Voltage surge suppressing protecting LEDs, PPAP capable SBT (Self Biased Transistor) Technology, Negative Temperature Coefficient, This device uses Halogen-Free Molding Compound, This is a Pb-Free Device
PPAP capable
Benefit
High or Low side control, Simple Battery Charge, Reduce LED binning and therefore inventory, NO EMI
Applications
LED Drive, Battery Charging, Contact Wetting
Automotive - Cluster & Central Console Backlighting, Navigation/Audio Systems, Vanity Mirror Light, Car Door Puddle Light, Ambience Lighting, CHMSL, Turn Signals, Side Repeaters, Tail Lamps, Brake Lighting, Trailer lights & Contact Wetting. Display & Signage - Channel letters, Display backlighting, Neon bulb replacements, LED stripes & modules. Architectural lighting Decorative, Task, Exterior, Landscape & Under counter. Computing and Industrial Indicator lamps, Backlights
