- RS Stock No.:
- 879-0849
- Mfr. Part No.:
- 1SNK708011R0000
- Manufacturer:
- Entrelec
65 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 5)
MYR16.314
Units | Per Unit | Per Pack* |
---|---|---|
5 + | MYR16.314 | MYR81.57 |
*price indicative
- RS Stock No.:
- 879-0849
- Mfr. Part No.:
- 1SNK708011R0000
- Manufacturer:
- Entrelec
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

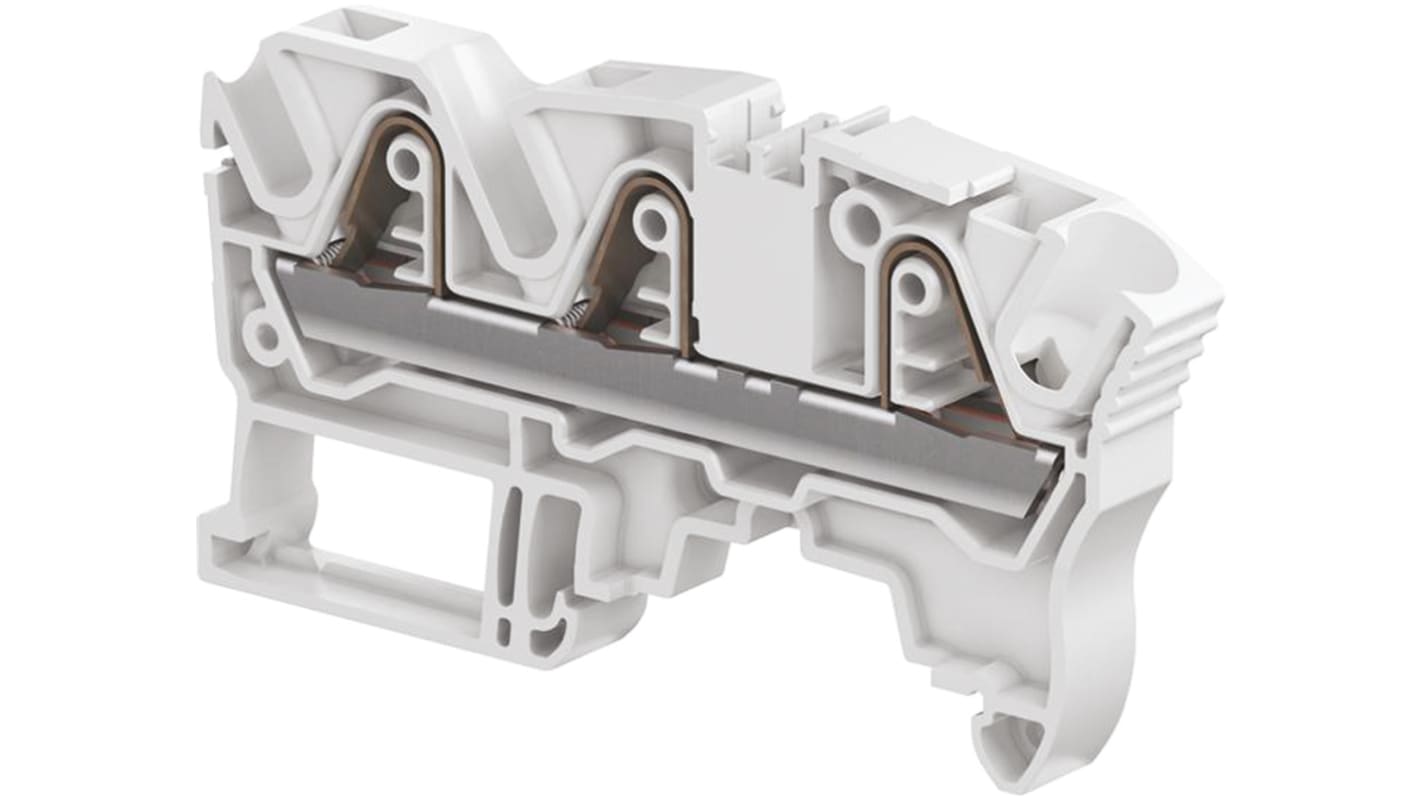

ZK6 PI-Spring Feed-Through Terminal Blocks
ZK6 PI-Spring feed-through Terminal Blocks combine high performance with compact dimensions. The terminals are also the best for marking, with an up-front flat marker zone. This feature lets you mark up to eight digits or increase the font size.
Push-in and spring mode terminals
6 mm² (8 AWG)
Easy DIN Rail mounting
6 mm² (8 AWG)
Easy DIN Rail mounting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
SNK Series PI-Spring Terminal Blocks
PI-Spring technology provides a Smart Connection and the benefits of 2 technologies in 1 connection:
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
1. 50% faster connection time with Push-In mode (direct insertion - for stranded wire with ferrule or for solid wire, use screwdriver to remove wire).
2. Reduced effort and conductor preparation time with Spring-Mode (use screwdriver to insert and remove non-prepared stranded wires).
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Single |
Series | ZK6 |
Termination Method | Spring Clamp |
Cable CSA | 6mm² |
Current Rating | 50A |
Voltage Rating | 1 kV |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +110°C |
