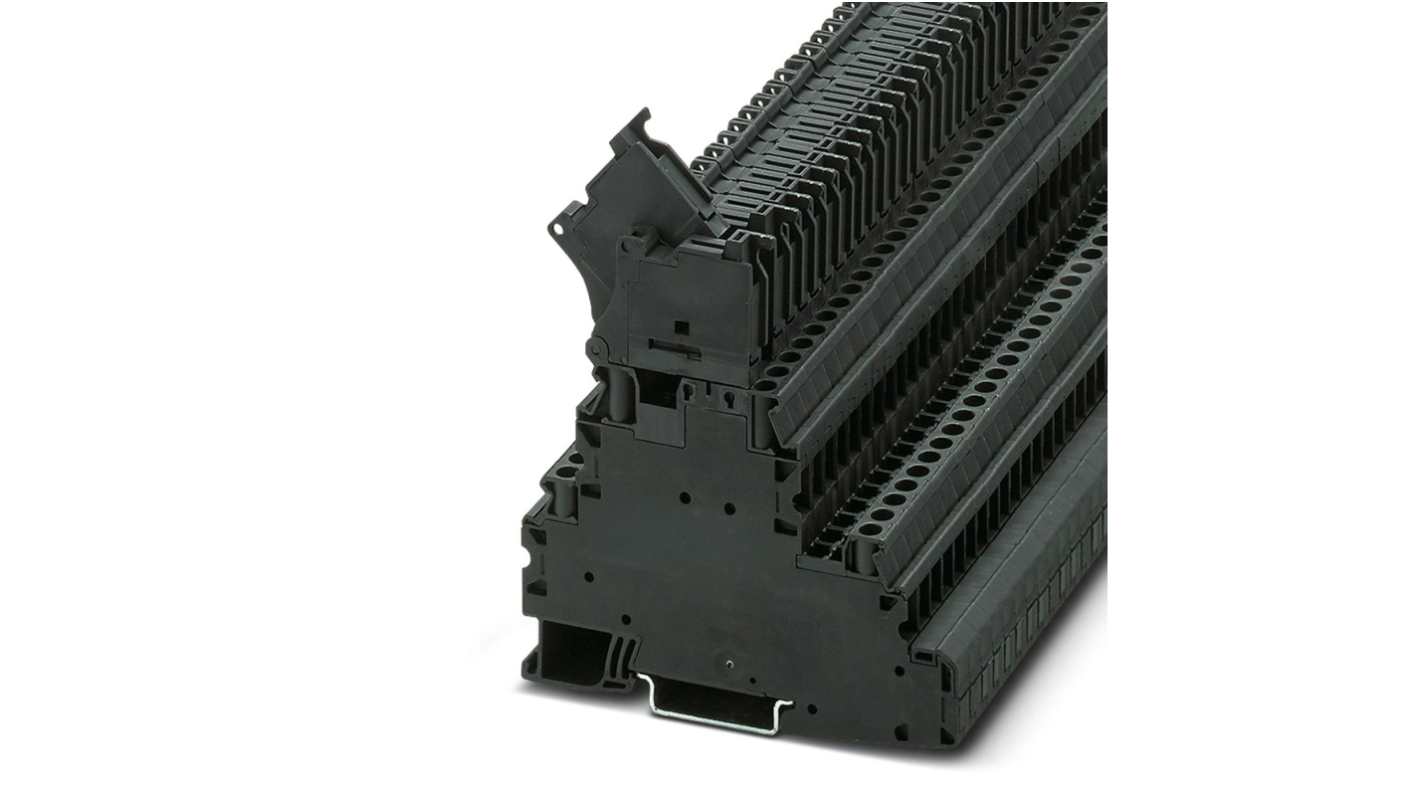

Phoenix Contact 3214325 UT 4-L/HESI (5X20) Series Black, 4mm², Double-Level, Screw Termination, Fused, ATEX, Ex, IECEx

The lever-type fuse and function terminal blocks with PE foot are suitable for process technology based on the Ex nA approval that has been applied for, and are suitable for energy and signal transmission in potentially explosive areas.

• Screw Connection
• Mounting type: NS 35/7.5, NS 35/15
• RoHS compliant

IEC 60947-7-1, V0 UL 94 flammability rating.

IECEx, UL, cUL, EAC, CSA, cULus.

This high-performance DIN rail terminal block from Phoenix Contact lets you conveniently protect your electrical systems from excess current and short circuits. You can clip it directly to the DIN rail to serve as a safety switch for the electrical components mounted on it. It does this through the use of a fuse, which immediately cuts off current supply to the system in the event of a surge or short circuit. The terminal is made from hard-wearing polyamide, which prevents electric shocks.
This rigorously tested component features two independent feed-through wire connections, one on top of the other. You'll find this useful when space is restricted as it doubles the amount of wiring possible, while halving the area requirement. A screw termination system means you can secure conductors and wires to it with a simple screwdriver.

• Accepts standard wire sizes 26 to 10AWG (American Wire Gauge)
• Wide operating temperature range of -60°C to +130°C
• Approved by IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres) for use in hazardous environments
• Underwriters Laboratories (UL) 94 flammability rating V-0 meaning flame stops burning within 10 seconds

Phoenix Contact CLIPLINE UT Range
