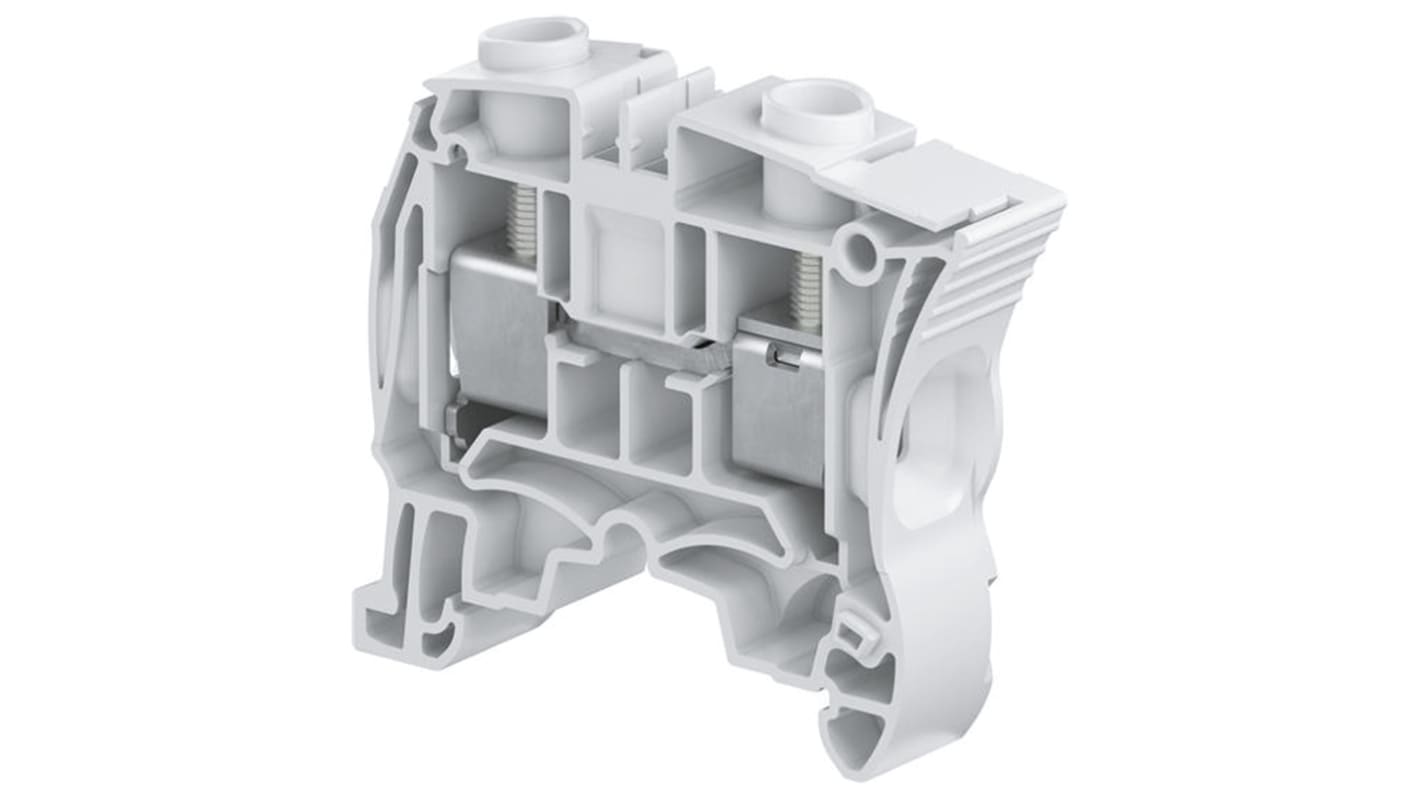

Entrelec ZS25 Series Grey Standard Din Rail Terminal, 16mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 825-1281
- Mfr. Part No.:
- 1SNK512010R0000
- Manufacturer:
- Entrelec
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR12.158
| Units | Per Unit | Per Pack* |
| 10 + | MYR12.158 | MYR121.58 |
| *price indicative | ||
- RS Stock No.:
- 825-1281
- Mfr. Part No.:
- 1SNK512010R0000
- Manufacturer:
- Entrelec
Technical data sheets
Legislation and Compliance
Product Details
Feed-through Terminal Blocks
Available in 4mm2 to 95mm2 sizes
4mm, 6mm and 10mm sold in packs of 10
16mm and 35mm sold in packs of 5
70mm and 95mm sold individually
4mm, 6mm and 10mm sold in packs of 10
16mm and 35mm sold in packs of 5
70mm and 95mm sold individually
SNK Series Screw Clamp Din Rail Terminal Blocks
A range of screw clamp terminal blocks and accessories offering a 20% width reduction compared with the Entrelec 5000 series. Designed to mount on ’top hat’ format DIN rails using a unique asymmetrical profile which aids visibility from any direction and prevents reverse mounting errors. Easy to fit with positive snap action and constructed from ridged flame retardant material. A comprehensive list of international approvals including, UL, CSA, CE, ATEX and IECex, support worldwide use.
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Single |
| Series | ZS25 |
| Termination Method | Screw |
| Cable CSA | 16mm² |
| Current Rating | 76A |
| Voltage Rating | 1 kV ac |
| Pitch | 12mm |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +40°C |
| Hazardous Area Certification | ATEX |
