Phoenix Contact 3211760 PT 4 BU Series Feed Through Terminal Block Blue, 0.2mm², 6 mm², 1-Level, Push-in, ATEX, IECEx
- RS Stock No.:
- 708-1637
- Distrelec Article No.:
- 304-35-919
- Mfr. Part No.:
- 3211760
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
MYR35.60
FREE delivery for orders over RM 150.00
In Stock
- Plus 705 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 + | MYR7.12 | MYR35.60 |
*price indicative
- RS Stock No.:
- 708-1637
- Distrelec Article No.:
- 304-35-919
- Mfr. Part No.:
- 3211760
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Feed Through Terminal Block | |
| Colour | Blue | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Series | PT 4 BU | |
| Minimum Wire Size AWG | 24AWG | |
| Cable CSA | 0.2mm², 6mm² | |
| Fused | No | |
| Maximum Wire Size AWG | 10AWG | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Terminal Block Current | 32A | |
| Hazardous Area Certification | ATEX, IECEx | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EAC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Feed Through Terminal Block | ||
Colour Blue | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Voltage 800V | ||
Series PT 4 BU | ||
Minimum Wire Size AWG 24AWG | ||
Cable CSA 0.2mm², 6mm² | ||
Fused No | ||
Maximum Wire Size AWG 10AWG | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Terminal Block Current 32A | ||
Hazardous Area Certification ATEX, IECEx | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EAC | ||
- COO (Country of Origin):
- PL

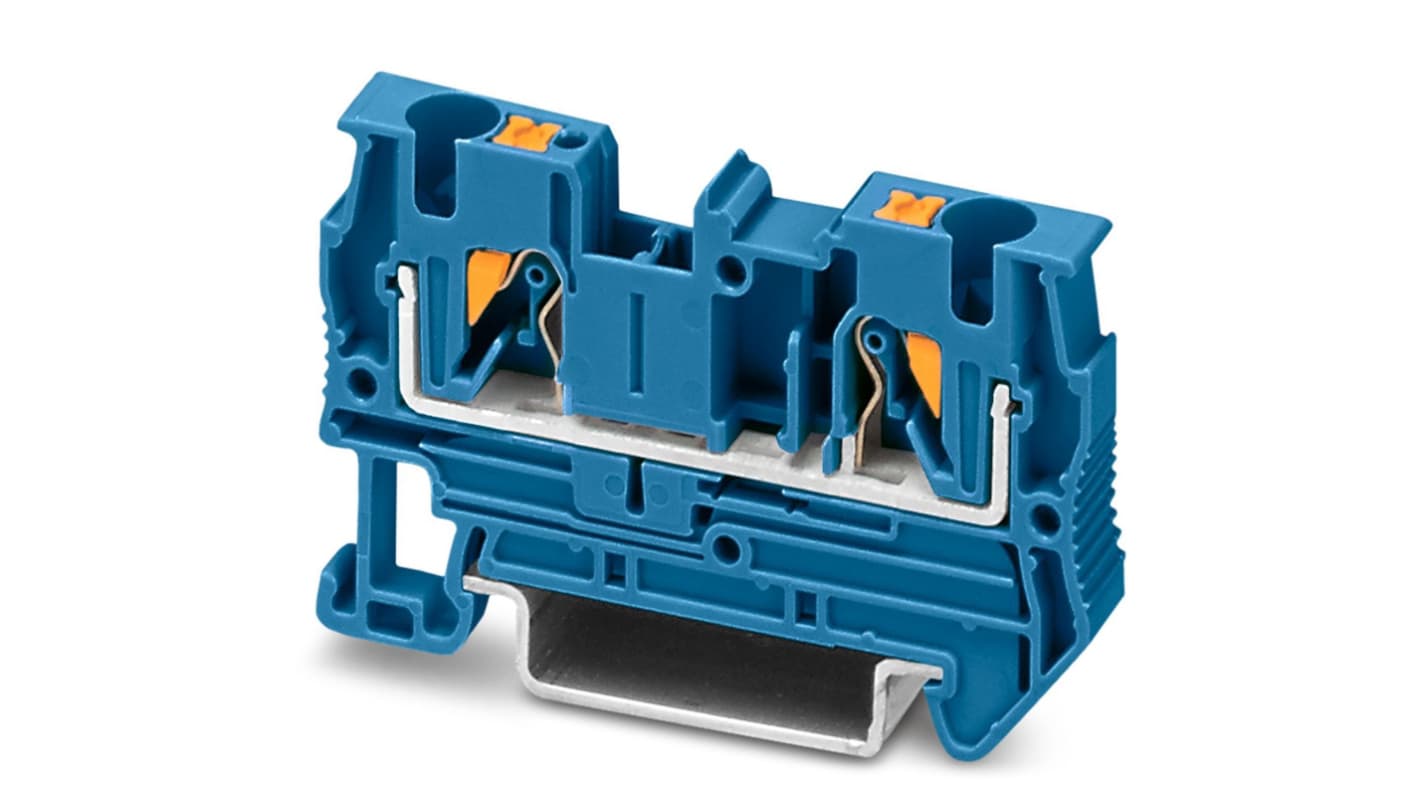

Phoenix Contact Feed Through Terminal Block, 8kV Rated Surge Voltage, Push-In Connection - PT 4 BU - 3211760
Need a safe and reliable link between cables and your DIN rail? Choose this feed through terminal block from Phoenix Contact. Thanks to its push-in terminals, you don't need tools to join cables to the unit, saving time and hassle. As the unit's made of PA, which offers dependable impact resistance, it's suitable for use in harsh environments. The housing also does double duty by serving as an insulator for the circuit and preventing electric shocks to ensure safe operation.
With an 8kV rated surge voltage, this terminal block can handle sudden voltage spikes without suffering damage. This safeguards your network against arcs and fire outbreaks. Compact dimensions of 56 (L) x 6.2mm (W) make it your space-efficient workmate in tight setups. Devices like this are a must-have in the railway industry, as well as in machine-building applications.
Features & Benefits
• UL 94-V0 rating indicates that it stops burning in 10 seconds or less in the event of a fire
• Wide operating temperature range between -60°C and +105°C for use in challenging conditions
• Open side panel for easy integration with other terminal blocks
