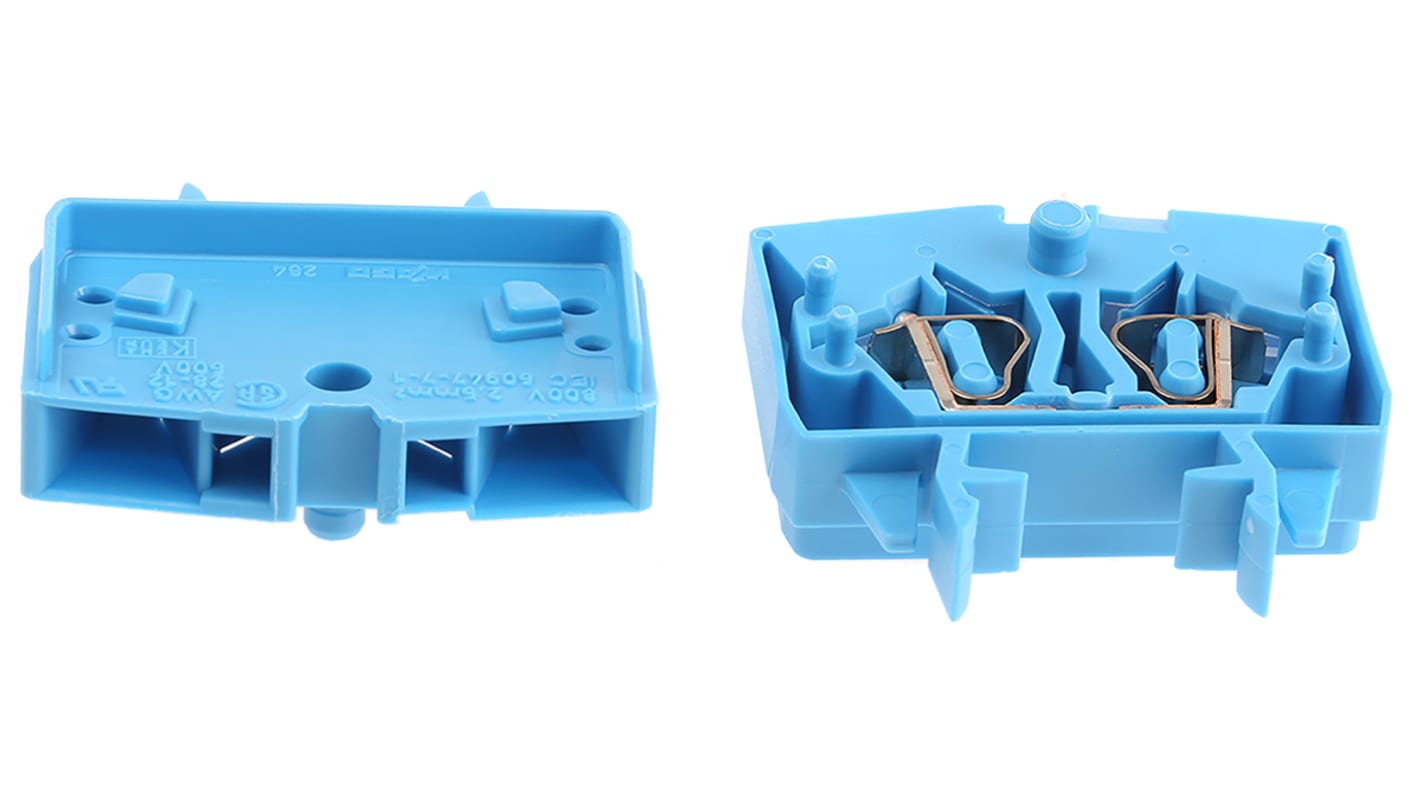

WAGO 264-704 264 Series Blue, 2.5mm², Single-Level, Cage Clamp Termination, ATEX, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

MYR49.59

Add to Basket
Select or type quantity
In Stock
  • 530 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
10 +MYR4.959MYR49.59

*price indicative

RS Stock No.:
494-1179
Mfr. Part No.:
264-704
Manufacturer:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Blue

Number of Levels

Single

Series

264

Voltage Rating

600 V

American Wire Gauge

28 → 12AWG

Termination Method

Cage Clamp

Cable CSA

2.5mm²

Fused

No

Current Rating

24A

Pitch

6mm

Hazardous Area Certification

ATEX, IECEx

264 Miniature Series


Front-entry miniature screwless DIN Rail terminals are designed for snap-mounting onto symmetrical DIN Rail 467-349. The terminals have a clamp design that ensures the clamping force automatically adjusts to the size of the connector. Thus resulting in a corrosion-free contact area, and compensates for any deformation of the conductor due to cold flow or settling of strands.

Features and Benefits


• Available in 3 colours
• Moulded in modified nylon 6.6 (free from halogen)
• Self-extinguishing according to UL94-V2
• Temperature stabilised allowing continuous operation at 105°C (170°C short term) according to IEC216 part 1 and 2
• Terminals interlock and are designed to prevent reverse mounting
• 24.5 mm Depth
• Rated at 600 V (UL)
• The green/yellow earth terminal blocks connect directly to the mounting rail

Note

To ensure a high level of safety and security it is essential that only 1 conductor is inserted in each terminal. However, when jumper bars are used to common terminals a conductor of not more than 1.5mm² may be inserted between the jumper and the outer edge of the terminal block

Approvals

UL recognised component, CSA certified, DEMKO (except 264-727), KEMA, SEMKO.
