Phoenix Contact 3031487 ST 6 Series Grey, 0.2 → 6mm², Single-Level, Feed Through Termination

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 5 units)*

MYR82.27

Add to Basket
Select or type quantity
In Stock
  • 175 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
5 +MYR16.454MYR82.27

*price indicative

RS Stock No.:
458-0869
Mfr. Part No.:
3031487
Manufacturer:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Grey

Number of Levels

Single

Series

ST 6

Voltage Rating

1 kV

American Wire Gauge

24 → 8AWG

Termination Method

Feed Through

Cable CSA

0.2 → 6mm²

Current Rating

41A

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+110°C

Standards Met

IEC 60947-7-1

Model Number

ST 6

COO (Country of Origin):
DE

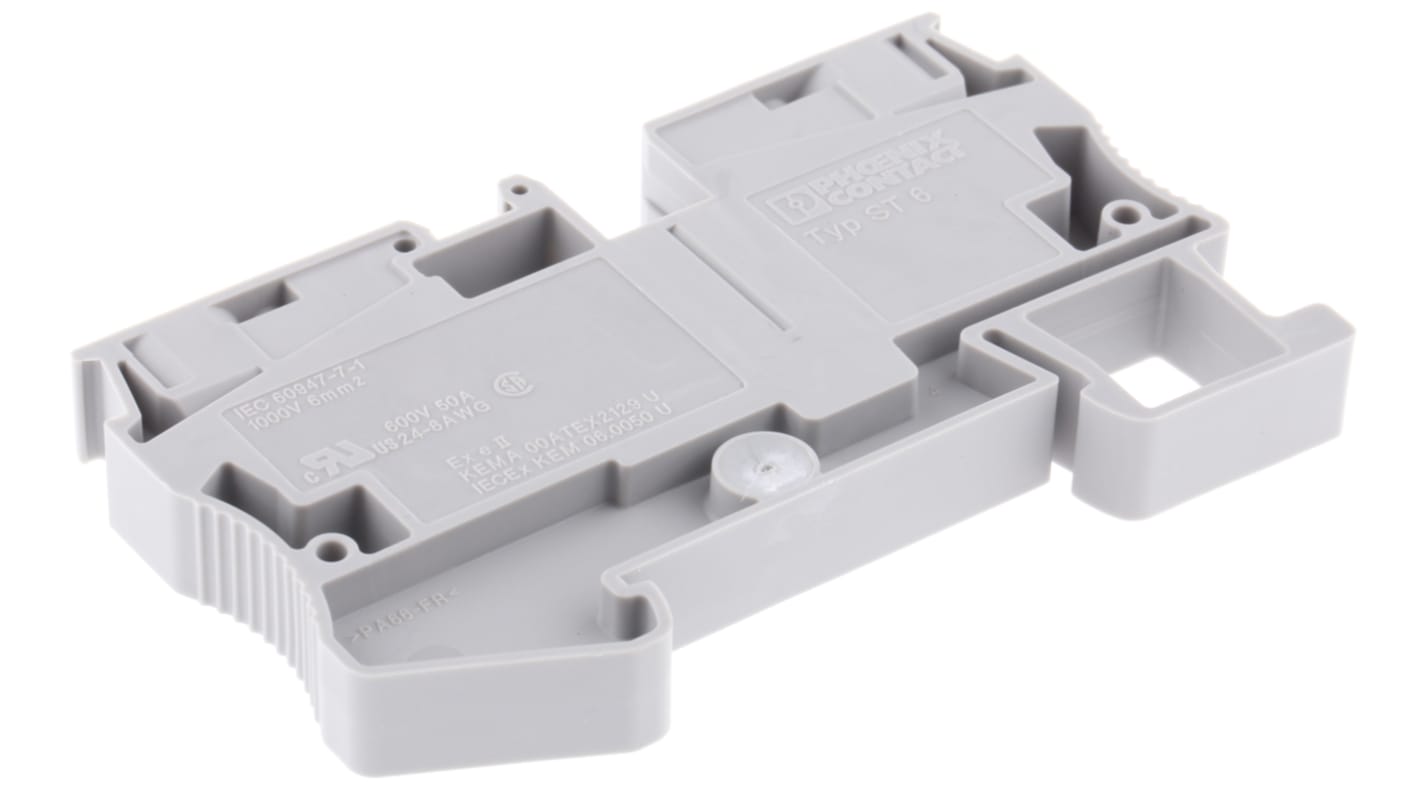

Phoenix Contact ST 6 Series Feed Through Terminal Block, 41A Current Rating, 1000V Voltage Rating - 3031487


This feed through terminal block facilitates efficient electrical connections in various automation, electrical, and mechanical applications. Its compact grey design accommodates cable sizes from 0.2mm² to 10mm², with a maximum voltage rating of 1000V and current rating of 41A. Compliant with IEC 60947-7-1 standards, this terminal block is suitable for operation in diverse environments, including low temperatures down to -60°C.

Features & Benefits


• Compact design optimises space in wiring applications
• Front connection enhances installation ease
• High current rating of up to 41A
• Compatible with conductors fitted with ferrules and collars
• Complies with IEC 60947-7-1 standards
• Suitable for railway and process industry applications

Applications


• Used in machine building and plant engineering
• Well-suited for the railway industry
• Effective for low-temperature electrical installations
• Ideal for testing and distribution
• Suitable for automation systems requiring compact solutions

Is it suitable for temperatures as low as -60°C?


Yes, it operates effectively within a temperature range of -60°C to +110°C.

Can it accommodate different wire gauges?


It accepts wire sizes ranging from 24AWG to 10AWG.

Will it maintain performance under high voltage?


It is rated to perform safely at voltages up to 1000V.

Is it easy to install in tight spaces?


The compact design and front connection facilitate installation in confined areas.

Does it comply with industry standards?


Yes, it meets the requirements of IEC 60947-7-1 for safety and performance.
