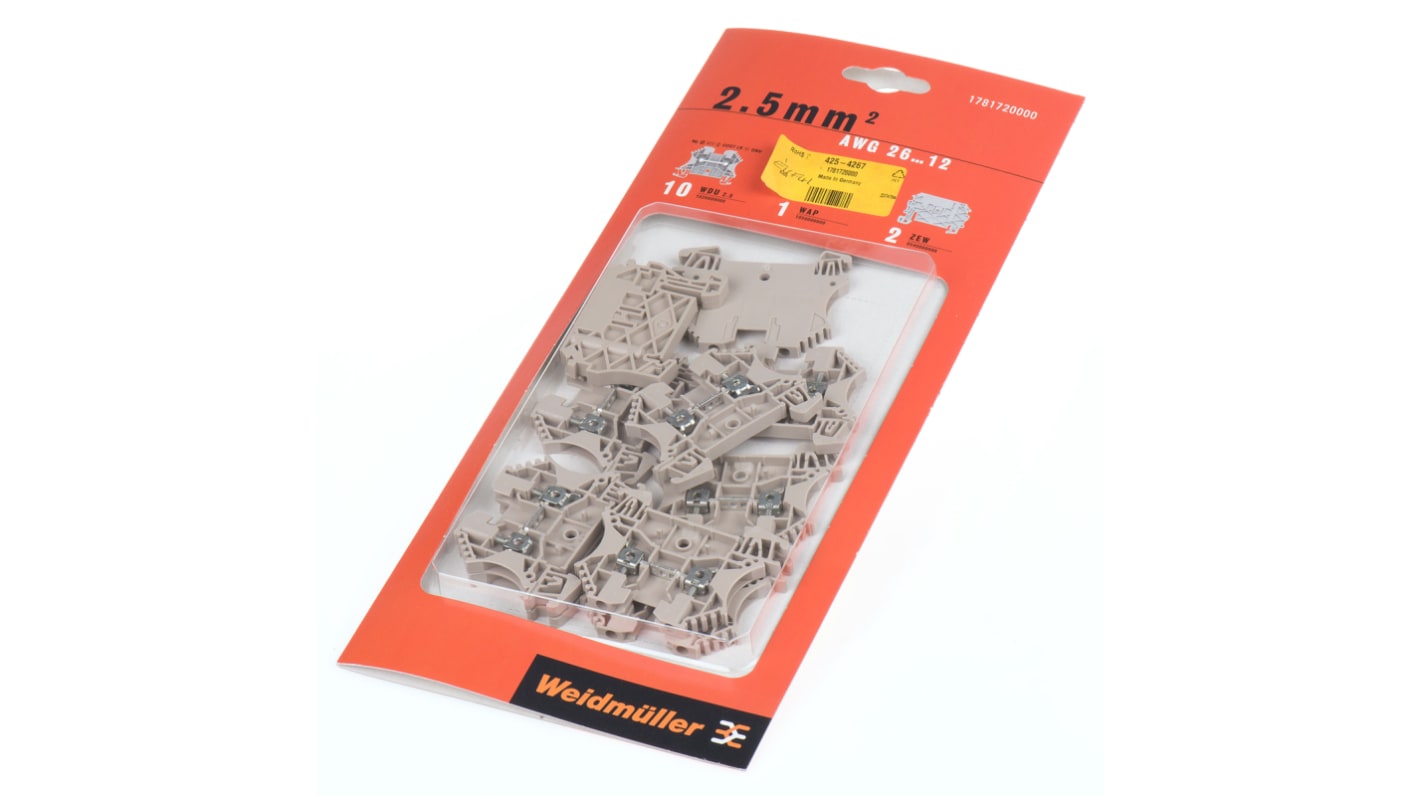

Weidmuller1781720000 WDU Series DIN Rail Terminal Block, 2.5mm², Screw Termination

Stop runaway current in its tracks with this single-level DIN rail terminal block from Weidmuller. The nifty device safeguards your applications against short circuits and power spikes to help prevent unnecessary downtime. As it's made from rugged Wemid thermoplastic, it provides effective insulation to reduce the risk of shocking surprises. A current rating of 24A means you can confidently use it in high-power applications. Mount this unit in a flash thanks to its clamping yoke connections.

• Screw terminations for secure wiring to prevent accidental disconnection
• Self-extinguishing for safety in the event of a fire
• Wide operating temperature range between -60°C and +130°C for use in demanding conditions
• Accepts wires ranging in size from 0.5 to 4mm² for broad compatibility

• Telecommunications installations
• Construction industry
• Lighting control systems
• Power supplies
• HVAC units

The unit joins different circuits while grounding and isolating linked components. This means it stops faulty current from travelling to your equipment, which helps protect it from damage.

CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
