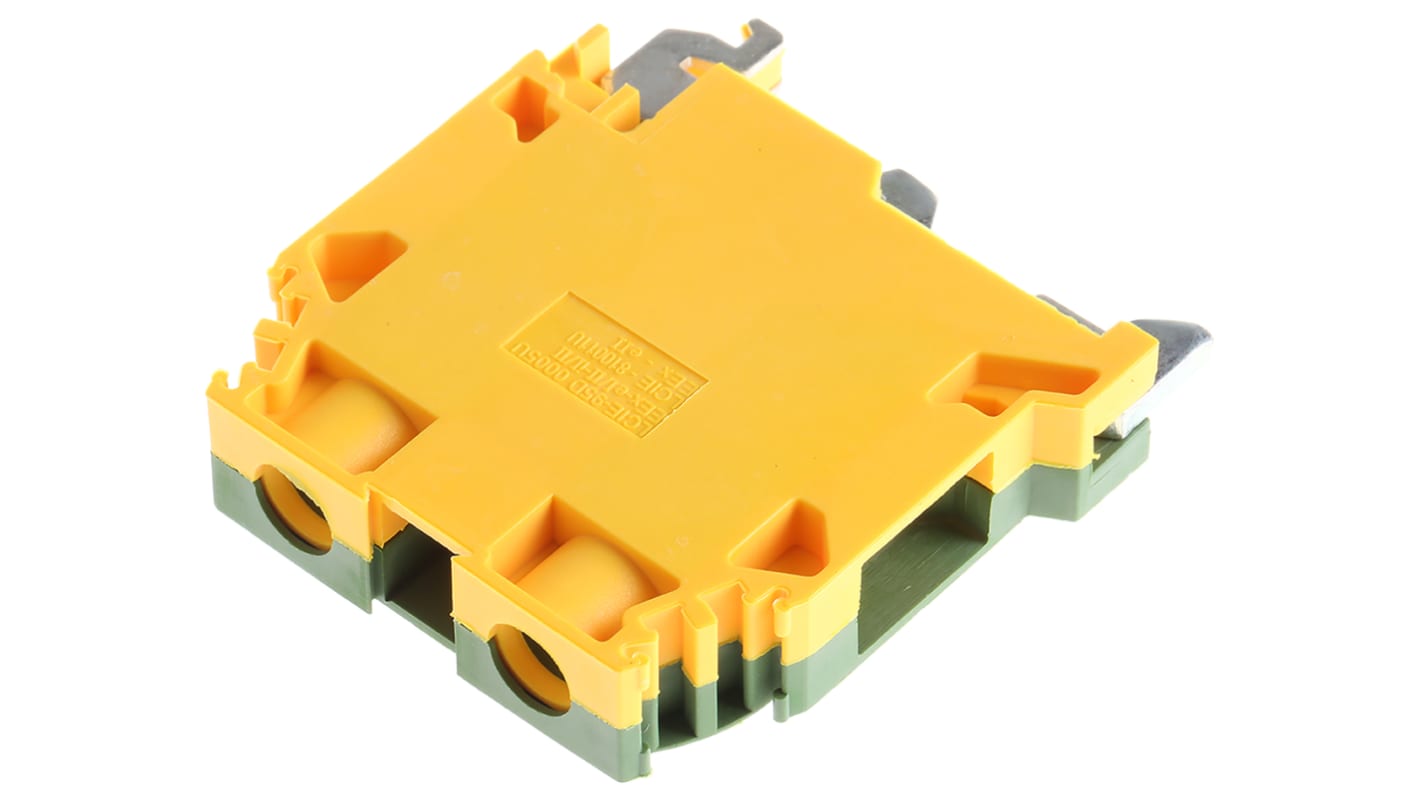

Entrelec 1SNA165115R1000 SNA Series Earth Terminal Block Green, Yellow, 10mm², 1-Level, Screw
- RS Stock No.:
- 383-1419
- Mfr. Part No.:
- 1SNA165115R1000
- Manufacturer:
- Entrelec
Subtotal (1 unit)*
MYR33.20
FREE delivery for orders over RM 150.00
In Stock
- Plus 878 unit(s) shipping from 12 October 2026
- Plus 64 unit(s) shipping from 12 October 2026
- Plus 250 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR33.20 |
*price indicative
- RS Stock No.:
- 383-1419
- Mfr. Part No.:
- 1SNA165115R1000
- Manufacturer:
- Entrelec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Green, Yellow | |
| Product Type | Earth Terminal Block | |
| Number of Levels | 1 | |
| Series | SNA | |
| Voltage | 800V ac | |
| Cable CSA | 10mm² | |
| Minimum Wire Size AWG | 8AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Pitch | 10mm | |
| Termination Type | Screw | |
| Terminal Block Current | 55A | |
| Minimum Operating Temperature | -5°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CE, CSA, cUL, EAC, EU Directive 2002/95/EC | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Green, Yellow | ||
Product Type Earth Terminal Block | ||
Number of Levels 1 | ||
Series SNA | ||
Voltage 800V ac | ||
Cable CSA 10mm² | ||
Minimum Wire Size AWG 8AWG | ||
Maximum Wire Size AWG 8AWG | ||
Pitch 10mm | ||
Termination Type Screw | ||
Terminal Block Current 55A | ||
Minimum Operating Temperature -5°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CE, CSA, cUL, EAC, EU Directive 2002/95/EC | ||
Earth Terminals
Earth terminal blocks that provide reliable electrical and mechanical contact with the DIN Rail.
Features and Benefits
• Green/yellow colour coded
• Flexibility to snap onto symmetrical and asymmetrical rails
• Screw clamp connection
5000 Universal Series
This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569
Note
Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only
