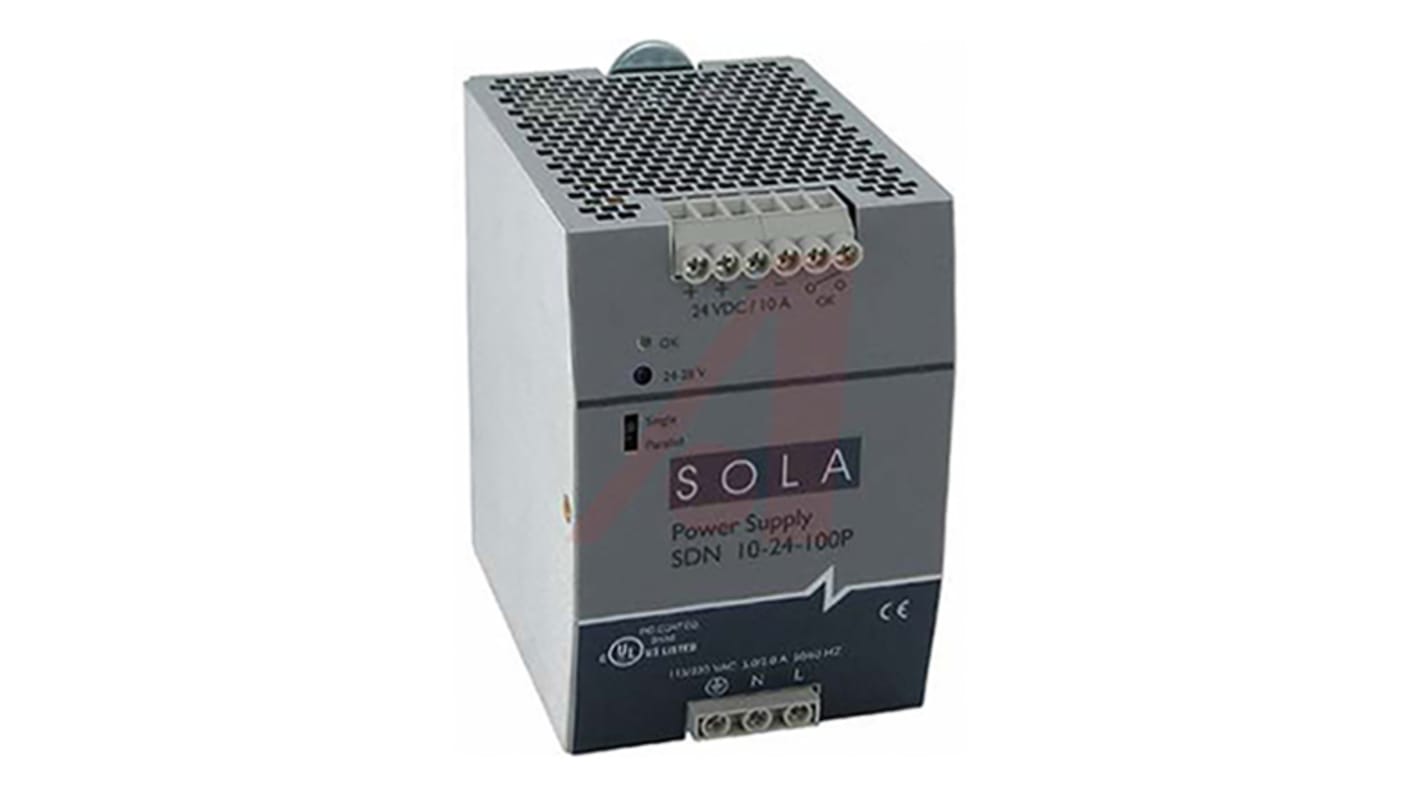

SolaHD SDN-P Switched Mode DIN Rail Power Supply 375 V dc, 264V ac AC/DC Input 28.5V dc, 10 A Output DC 240 W

RS Stock No.:: 890-8898
Mfr. Part No.:: SDN10-24-100P
Manufacturer:: SolaHD

SolaHD SDN-P Switched Mode DIN Rail Power Supply 375 V dc, 264V ac AC/DC Input 28.5V dc, 10 A Output DC 240 W

Subtotal (1 unit)*

MYR2,764.91

FREE delivery for orders over RM 500.00

In Stock

Plus 5 unit(s) shipping from 18 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,764.91

*price indicative

RS Stock No.:: 890-8898
Mfr. Part No.:: SDN10-24-100P
Manufacturer:: SolaHD

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SolaHD
	Series	SDN-P
	Product Type	DIN Rail Power Supply
	Maximum Output Voltage	28.5V dc
	Sub Type	Switched Mode
	Electrical Phase	1
	Number of Outputs	1
	Input Voltage Type	AC/DC
	Power	240W
	Output Current	10A
	IP Rating	IP20
	Output Voltage Type	DC
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Hazardous Area Certification	NO
	Width	124mm
	Standards/Approvals	RoHS
	Depth	111mm
	Height	123mm
	Maximum Input Voltage	375, 264V dc
	Minimum Input Voltage	85V ac
	Efficiency	88%

	Select all
	Brand SolaHD
	Series SDN-P
	Product Type DIN Rail Power Supply
	Maximum Output Voltage 28.5V dc
	Sub Type Switched Mode
	Electrical Phase 1
	Number of Outputs 1
	Input Voltage Type AC/DC
	Power 240W
	Output Current 10A
	IP Rating IP20
	Output Voltage Type DC
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Hazardous Area Certification NO
	Width 124mm
	Standards/Approvals RoHS
	Depth 111mm
	Height 123mm
	Maximum Input Voltage 375, 264V dc
	Minimum Input Voltage 85V ac
	Efficiency 88%

Datasheet

SolaHD DIN Rail Power Supply

The SolaHD SDN-P series DIN rail power supply has a universal input voltage ranging between 85VAC to 132VAC/176VAC to 264Vac and 210VDC to375Vdc with a built-in passive PFC function. It is equipped with sag Immunity, power factor correction, high efficiency and high MTFB. The rated output current is 10A at 24VDC output voltage.

Features and Benefits

Cooling by free air convection

DC output voltage adjustable

High efficiency up to 88%

LED indicator for power ON

Operation temperature ranging between -30°C and 70°C

Power rating is up to 240W

Ripple factor and noise is 100mV

Short circuit and overvoltage protection

Applications

Amusement park equipment

Conveying equipment

Industrial/Machine control

Material handling

Packaging equipment

Process control

Semiconductor fabrication equipment

Vending machines

Certifications

CE certified

cRUus

cULus

IP20 rated

UL508
