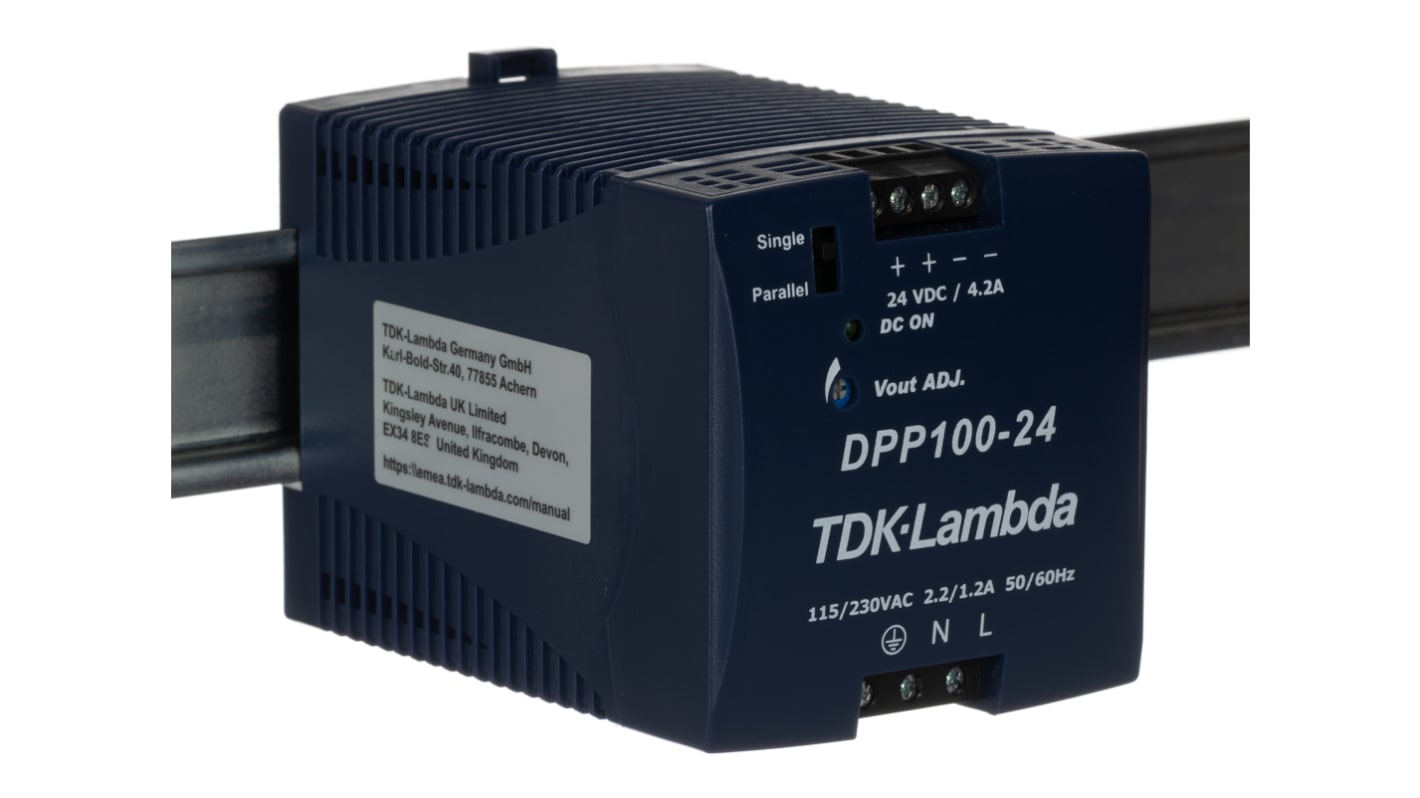

TDK-Lambda DPP Switched Mode DIN Rail Power Supply, 85 → 132V ac, 176 → 264 V ac / 210 → 375V dc
- RS Stock No.:
- 528-7921
- Mfr. Part No.:
- DPP100-24
- Manufacturer:
- TDK-Lambda
6 In Local stock for delivery in 2-3 working days, delivery time may vary for certain locations or FTZ
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR455.47
| Units | Per Unit |
| 1 + | MYR455.47 |
- RS Stock No.:
- 528-7921
- Mfr. Part No.:
- DPP100-24
- Manufacturer:
- TDK-Lambda
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
TDK-Lambda DIN Rail Power Supply
The TDK-Lambda DPP series switch-mode DIN-rail power supply have 4.2A output current at 24VDC output voltage. Its most outstanding features are compact size, load sharing and active power factor correction (PFC). This power supply has a universal single-phase input voltage rating ranging between 85VAC and 132VAC/176VAC and 264VAC with adjustable output voltage. Its high immunity makes it suitable for almost every situation. The adjustable output voltage ranges between22.5VDC and 28.5VDC
Features and Benefits
Convection cooled
Easy system integration
High efficiency up to 87%
LED indicator
Operating temperature ranges between -10°C and 71°C
Power rating is 100W
Ripple factor and noise is 50mV
Snap-on mount
Easy system integration
High efficiency up to 87%
LED indicator
Operating temperature ranges between -10°C and 71°C
Power rating is 100W
Ripple factor and noise is 50mV
Snap-on mount
Applications
Factory automation
Industrial controls
Process control
Test and measurement
Industrial controls
Process control
Test and measurement
Certifications
CE certified
EN
NEC class 2
UL approved
EN
NEC class 2
UL approved
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 4.2A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 132V ac, 176 → 264 V ac / 210 → 375V dc |
| Power Rating | 100W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 75mm |
| Width | 73mm |
| Depth | 96.7mm |
| Series | DPP |
| Load Regulation | ±0.5% |
| MTBF | 239000h |
| Minimum Temperature | -10°C |
| Maximum Temperature | +71°C |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 50mV |
