Select all	Attribute	Value
	Brand	Omron
	Series	S8VK-V
	Type	Switched Mode
	Electrical Phase	1
	AC or DC Input Voltage	ac
	Number of Outputs	1
	Input Voltage	100 → 240V ac
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	20A
	Dimensions	60 x 119.3 x 124.6mm
	Height	125mm
	Depth	119mm
	Width	60mm
	Ripple And Noise	130mV Pk-Pk
	Special Features	Overvoltage and Short Circuit Protection
	Output Voltage Adjustment Range	21.6 → 28V
	MTBF	90000h
	Load Regulation	1.5%
	Mounting Type	DIN Rail Mount
	Efficiency	94%
	Minimum Temperature	-40°C
	Standards Met	CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL
	Maximum Temperature	+70°C

	Select all
	Brand Omron
	Series S8VK-V
	Type Switched Mode
	Electrical Phase 1
	AC or DC Input Voltage ac
	Number of Outputs 1
	Input Voltage 100 → 240V ac
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 20A
	Dimensions 60 x 119.3 x 124.6mm
	Height 125mm
	Depth 119mm
	Width 60mm
	Ripple And Noise 130mV Pk-Pk
	Special Features Overvoltage and Short Circuit Protection
	Output Voltage Adjustment Range 21.6 → 28V
	MTBF 90000h
	Load Regulation 1.5%
	Mounting Type DIN Rail Mount
	Efficiency 94%
	Minimum Temperature -40°C
	Standards Met CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL
	Maximum Temperature +70°C

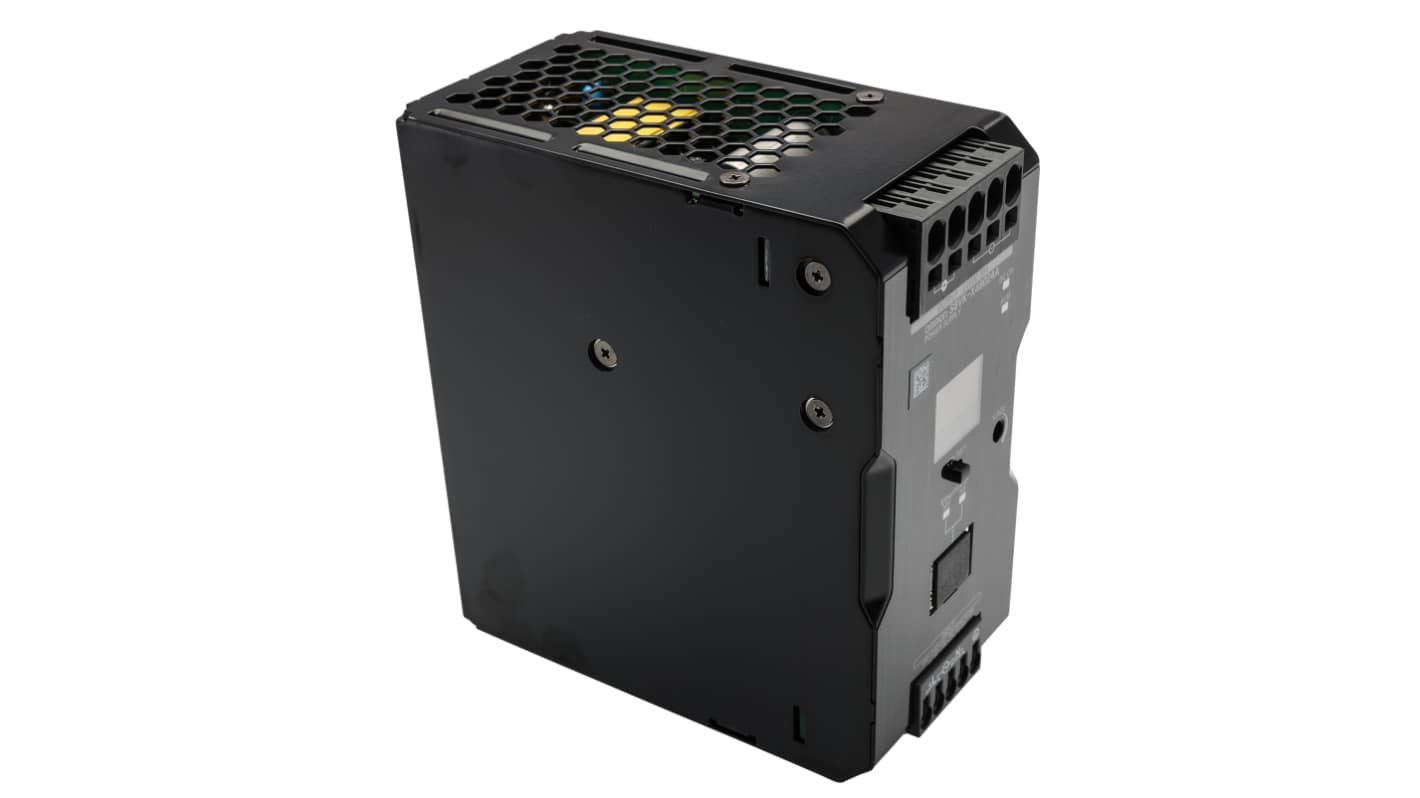

Omron S8VK-V Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 20A Output, 480W

FREE delivery for orders over RM 500.00

Omron S8VK-V Series Din Rail Power Supply, 24V Output Voltage, 20A Current - S8VK-X48024A-EIP

Features & Benefits

Applications

What is the expected lifespan of this power supply?

How does this power supply maintain output stability under varying loads?

What safety features does this model include for protecting connected devices?

Can this unit operate in extreme temperatures?
